38 User Guide EN Dansensor® LeakPointer 3/3
+
P/N 380064-F
06/2021
Adjusting the height of the PackBase

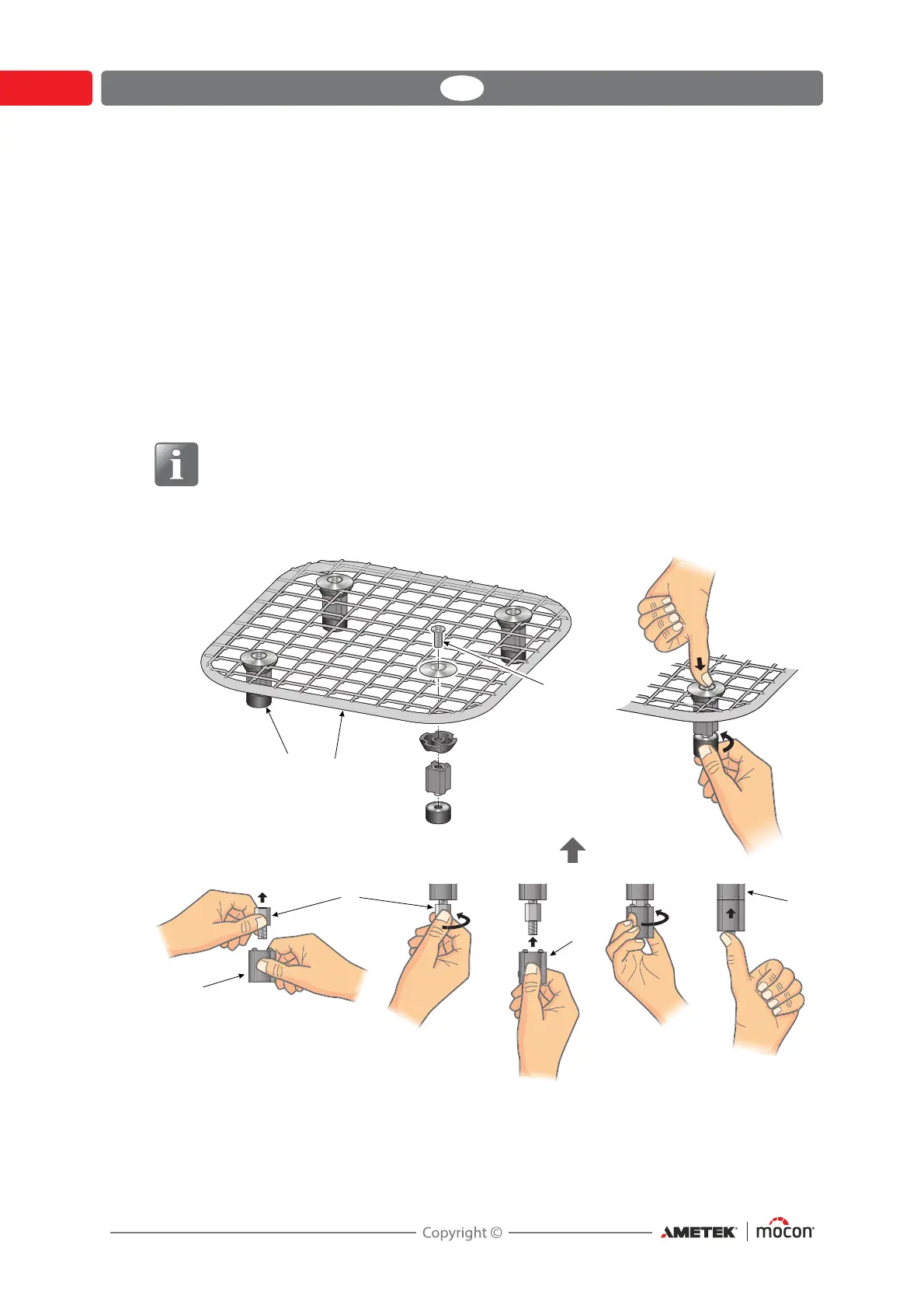

The PackBase consists of a wire mesh and 4 adjustable feet. It comes with a selection of parts
that allow for different height adjustments. Adjustment ranges are 15.5 to 76.5 mm for
LeakPointer 3 and 15.5 to 116.5 mm for LeakPointer 3
+
.
Fit a leg in each corner of the wire mesh using the parts necessary for the required
height - see
Fig. 1. PackBase height overview on page 39 for details.
Since the legs should not be tightened much when assembling, it does not require for the use
of any tools. Simply press down on the screw
while tightening the parts by hand.
If you need to use the spacer with the threaded insert , first take out the insert and fit it
loosely on the screw, then push the spacer
onto it and use it to tighten the insert while
making sure that the small buds on the spacer
fits the holes in the counterpart when
pushing the items together.
NOTE! Especially for the LeakPointer 3
+
PackBase it may be necessary to move the
legs slightly towards the centre of the wire mesh if the grid is pressed too much
downwards when pressure is applied.
