3. Connections
Gas Connections

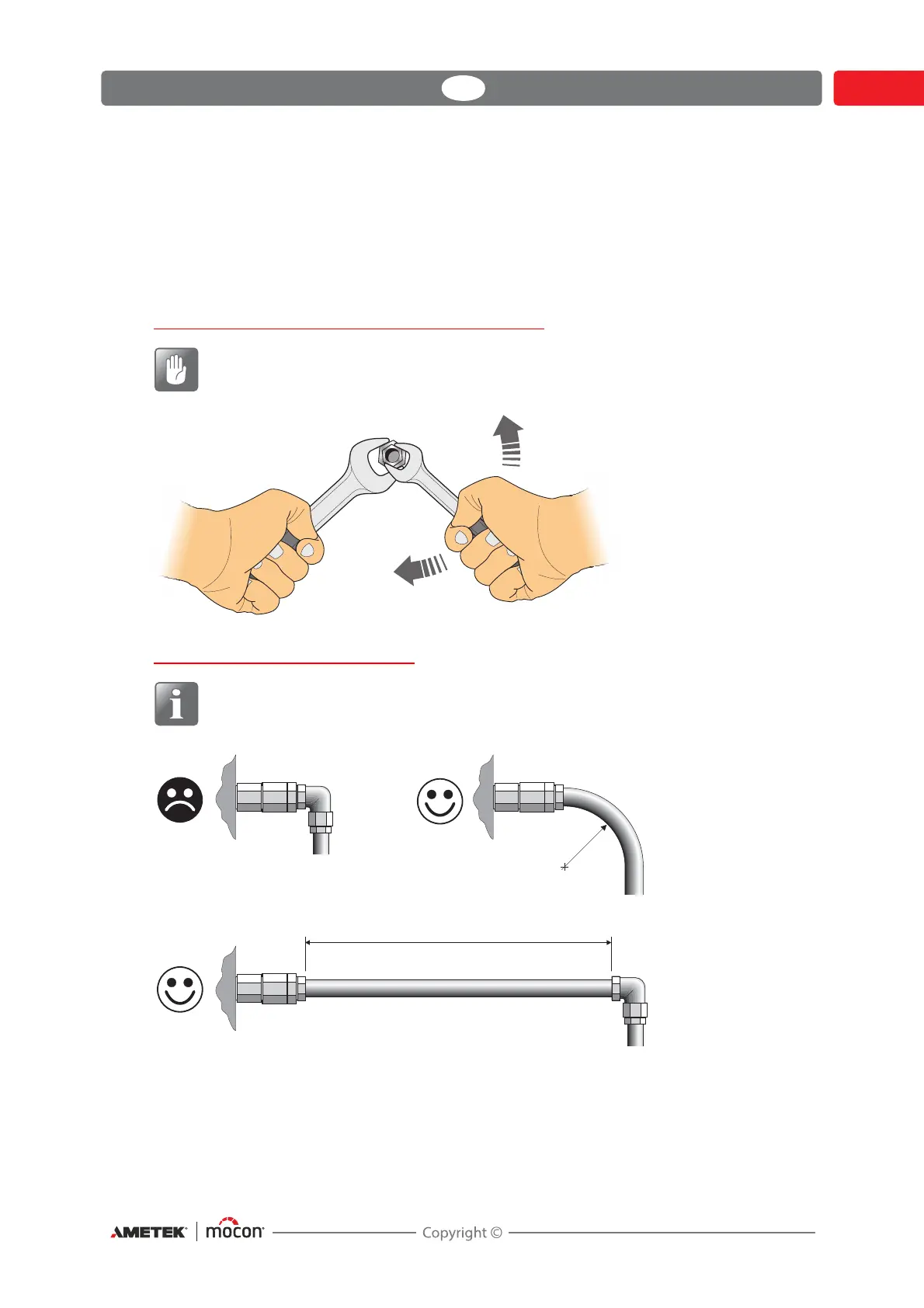

Correct mounting/dismounting of fittings
CAUTION! When mounting/dismounting fittings in order to change filters or
connect gasses, it is very important that you hold against on the already mounted
fittings to avoid damaging the existing assemblies.
Correct tubing for gas inlets
NOTE! To ensure a uniform gas flow into the device, there must be a straight hose
with a length of min. 30 cm (12”) between the gas inlet and the closest 90° elbow.
Alternatively the connection hose must have a bending radius of min. 5 cm (2”).
min. 30 cm 12( ")
R min. 5 cm (2")
R
