Electrical connections

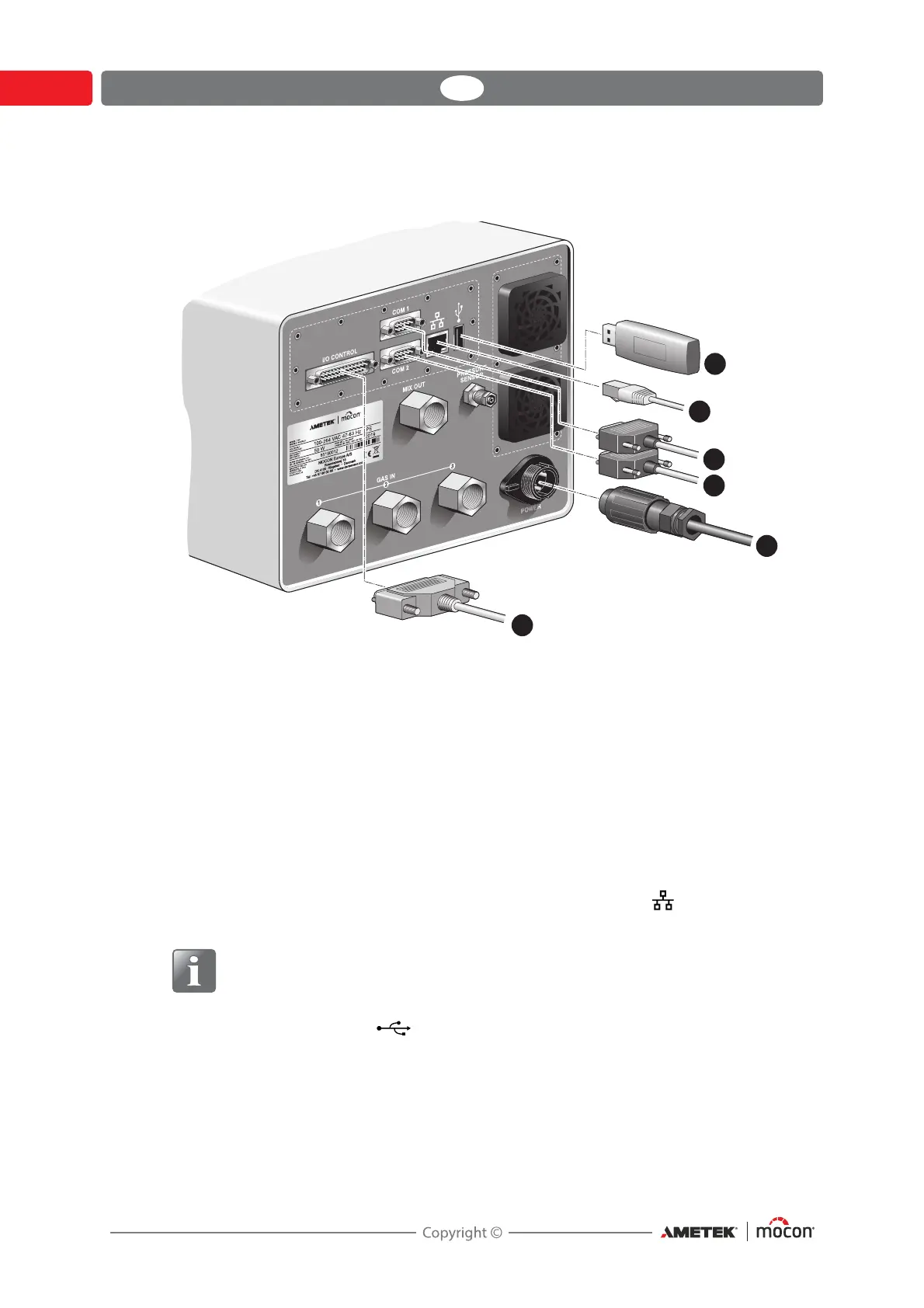

 Connect the power supply cable between a power outlet and the “POWER” connector.
(The power cable is delivered with the device).
 Connect a 25-pole communication cable from the “I/O CONTROL” connector to the
appropriate port on the packaging machine. This cable is delivered with the device.

See cable specifications in "I/O Cable" on page 21.
 Connect a 9-pole serial cable from the “COM1” connector to the “COM2” connector on
the MAP Check 3 or a master mixer or to the appropriate port on the packaging machine -
see
"COM-1/COM-2 Cables" on page 23 for details. This cable is not delivered with the device.
 Connect a 9-pole serial cable from the “COM2” connector to the “COM1” connector on a
slave mixer (option) - see
"COM-1/COM-2 Cables" on page 23 for details. This cable is not
delivered with the device.
 Connect a LAN/Ethernet cable from the LAN connector (labelled ) to a connector on
your local area network This cable is not delivered with the device.
NOTE! Use CAT6 cables for optimal noise immunity.

 The USB connector (labelled ) can be used for connecting a USB Memory stick  for
exporting/importing log data, device settings etc.
On “Stand-Alone” versions you can use the USB connector on the device front as well.




