Cables for use with MAP Mix Provectus
The device uses a D-SUB 9-pin male connector as COM1 plug, hence the cables used must be
D-SUB 9 pin female.
The port of the device is standard DTE configuration:
Pin #2 = RxD, pin #3 = TxD and pin #5 = GND.
For connection to a PC/PLC you would normally require a NULL-MODEM cable (also known as
cross over cable) that has a D-SUB 9-pin female connector in both ends.
Please refer to "Spare parts, consumables and accessories" on page 75 for details about available
cables.

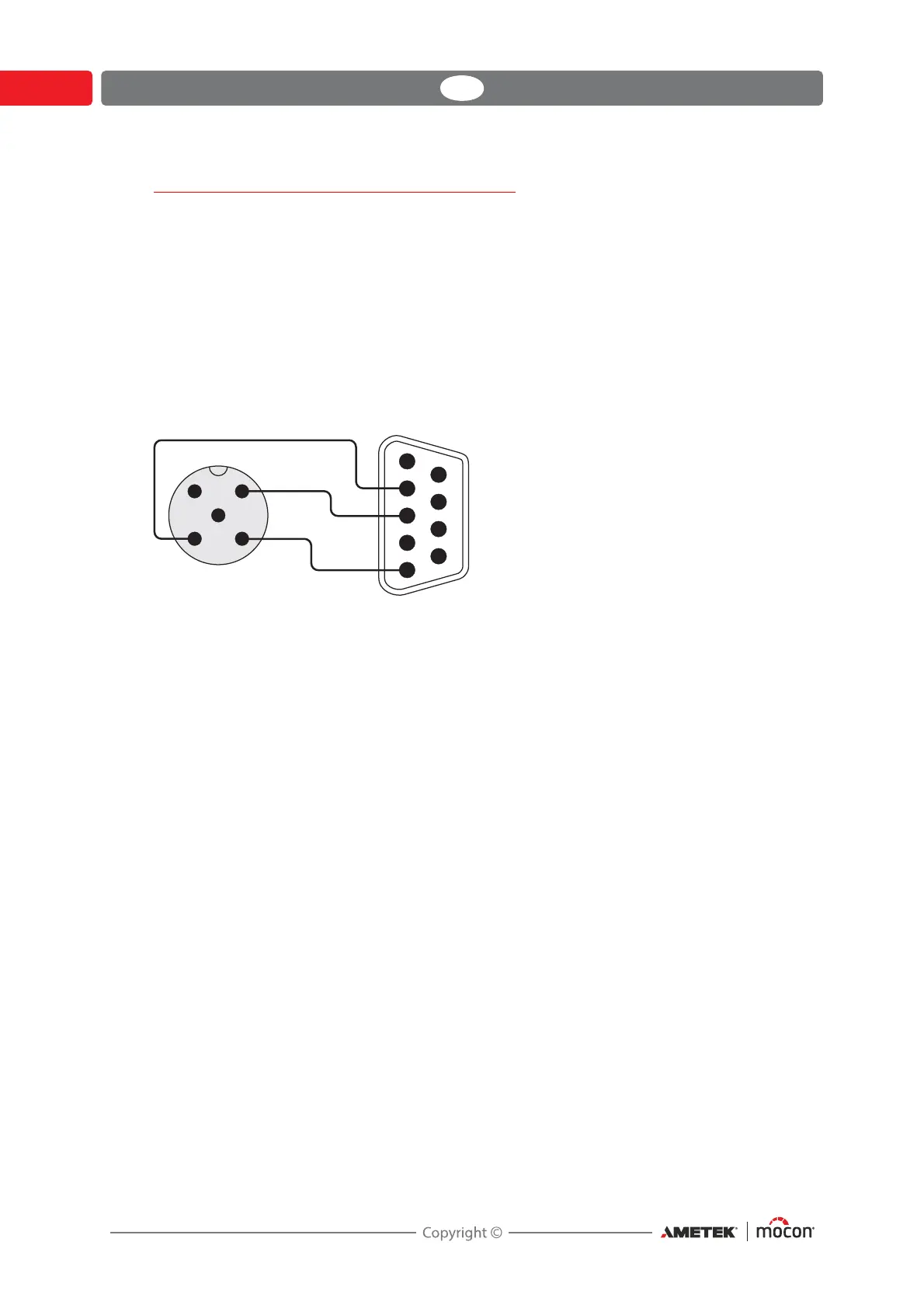

For older installations where you do not wish to replace the RS232 cable from the MM8000
installation you can make a conversion cable as illustrated below.
This method is not recommended due to addition of another connector assembly. The
preferred method is to replace the RS232 cable in the packaging machine.
