Ametek mocon Dansensor MAP Mix ProVectus - Bridging of Multiple Mixers

Dansensor® MAP Mix Provectus EN User Guide 25
P/N 300862-K
11/2019

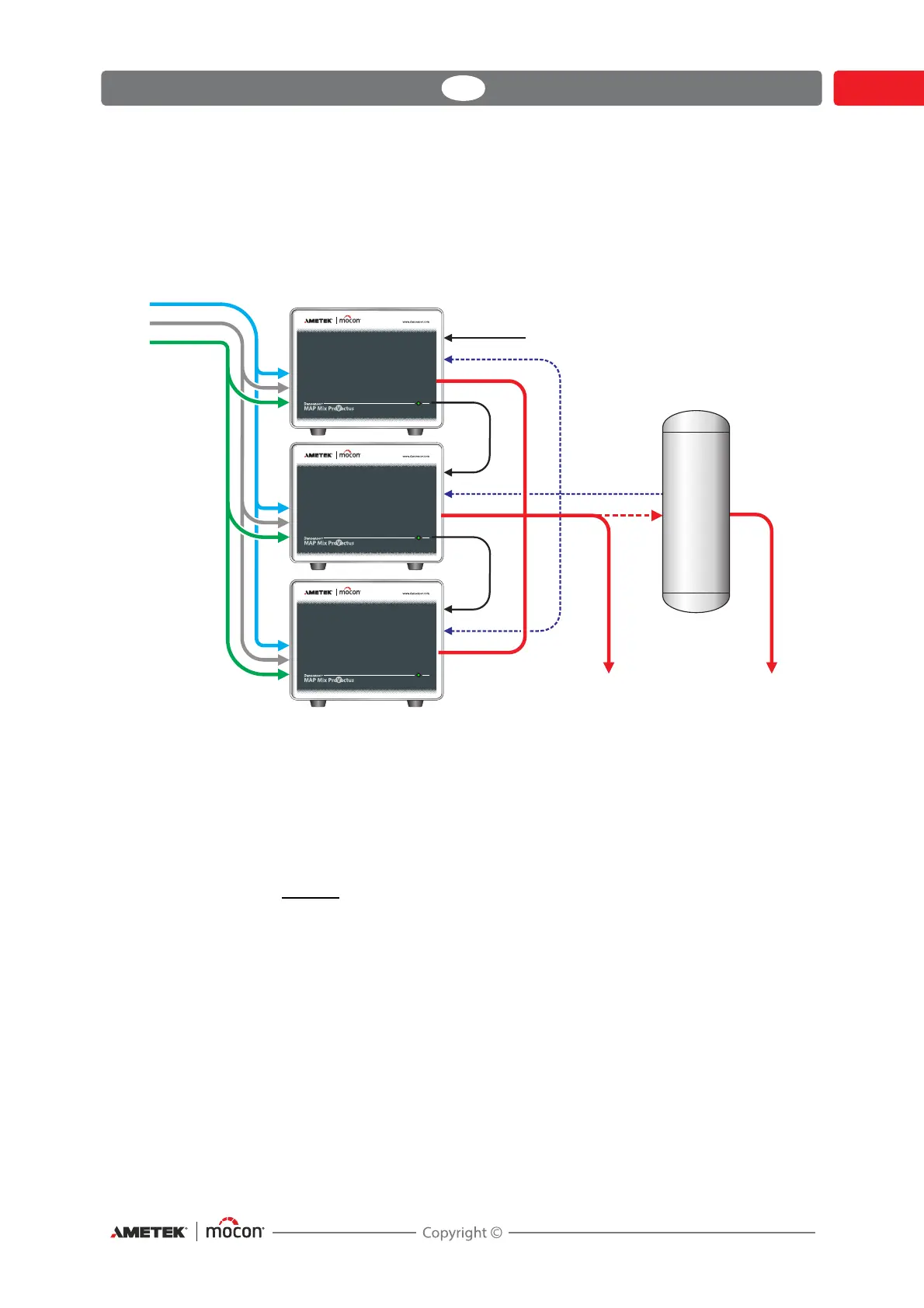

Bridging of multiple mixers
Dansensor® MAP Mix Provectus gas mixers with firmware version V1.10 and above, has a
build in facility to bridge up to 3 gas mixers of exact same configuration to achieve very high
gas flows making it possible to reach up to 4500 l/min depending on selected mixture.
Rules and restrictions for bridged mixers:
 Up to 3 mixers in total can be bridged
 Mixers must be of same type (2-gas or 3-gas) and have the same SW version
 First mixer in bridge is “Master” mixer and will automatically control the “Slave" mixers
 Setting of gas mix, flow and control of start/stop is done on "Master" mixer only
 Bridged mixers DO NOT support GasSave control by MAP Check 3
 Bridged mixers can only be controlled as “Flow” or “Buffer” mixers
 In a “Buffer” configuration all “PRESSURE SENSOR” inputs must be connected to the buffer
tank
 Mixers are “daisy chained” using short (0.5 m) NULL modem cables - see "Accessories" on
page 75
 Gas supply and output must be connected parallel to same ports
 The restrictions of minimum bending radius and length must be fulfilled - see "Correct
tubing for gas inlets" on page 17 for details
 On mixers with display a small icon shows the number of connected “Slave” mixers
.*9&%("4065
/PCVGGFS
.*9&%("4065
'SPNCVGGFS
$0.
3FNPUFDPOUSPMGSPNQBDLBHJOHNBDIJOF
PS."1$IFDLJGSFNPUFDPOUSPMMFE
#VGGFSQSFTTVSF
MJOFT
$0.
$0.
$0.
$0.
#6''&3
5"/,
015*0/
("4*/$0 

("4*// 

("4*/0 

.JYFS
w4MBWFw
.JYFS
w4MBWFw
.JYFS
w.BTUFSw
