28 User Guide EN Dansensor® MAP Mix Provectus
P/N 300862-K
11/2019

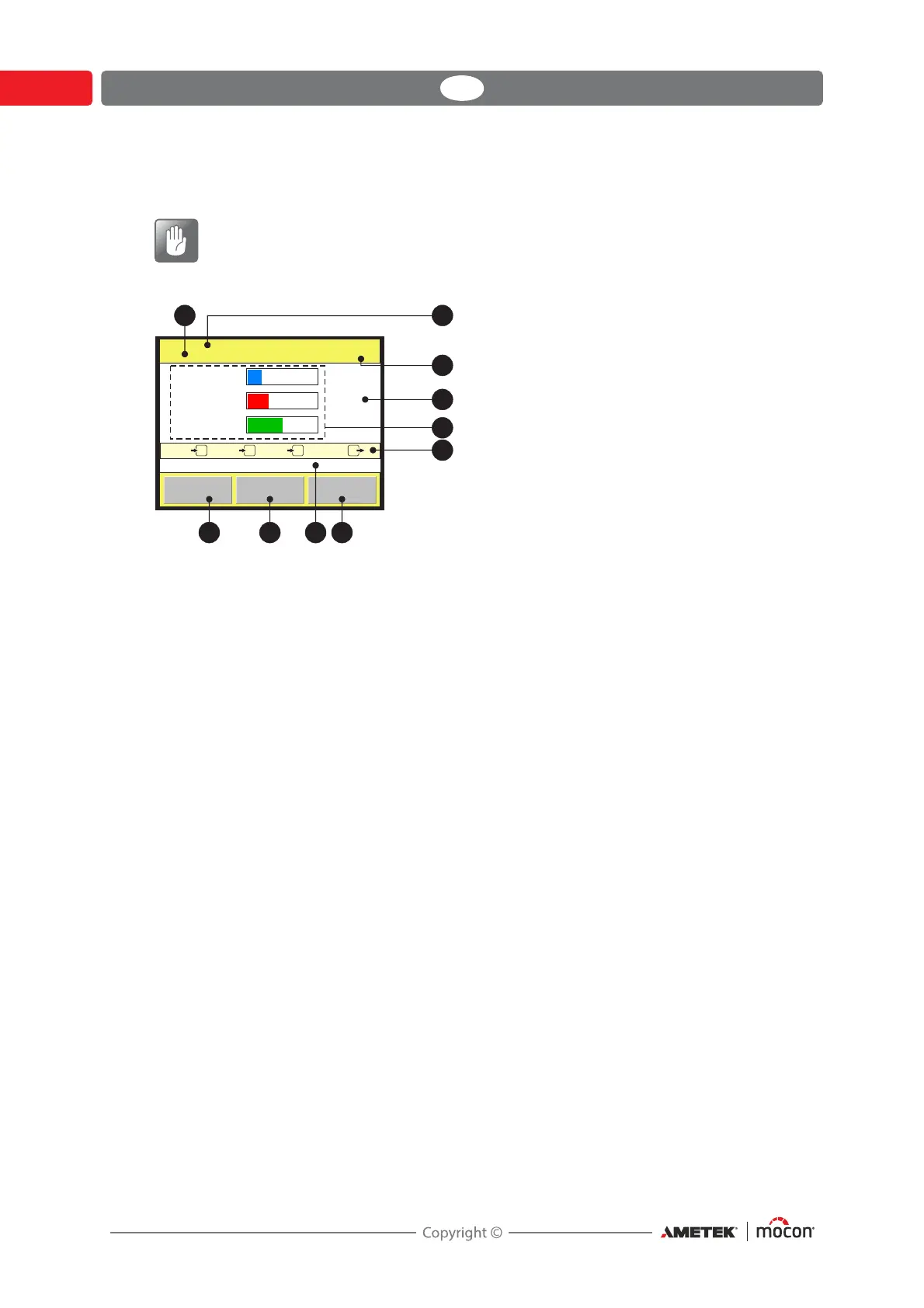

The Main Screen
CAUTION! The touch screen should only be finger touch operated. Pencils or metal
tools will destroy the touch sensitive film.
The main screen offers the following information/functions:
Selected product Currently selected product number/product name.
Remote control Displayed when the device is remote controlled from Modbus TCP
protocol.
In this case the buttons ,,and are disabled.
Time/Date Current time and date
Flow Display of the gas flow setting of the currently selected product.
(Only displayed when mixer is set to “Flow” mode mixing)
Mix settings Display of the gas mix settings of the currently selected product.
Connected gasses Display of the gasses connected to the gas inputs and as selected in
the “Mixer configuration”.
Gas pressures Display of the gas pressures currently measured by the pressure
sensors on the gas in- and outlets.
When pressure on either of the gas inlets (1-3) gets below a preset
lower value the pressure is indicated in red and the mixer generates
an early "Alarm" signal to alert user of low gas supply pressure.
Product key Takes you to the Products list for selection of product.
See "Selecting a product for mixing" on page 30 for details.
Menu key Takes you to the Main menu.
See "Main menu" on page 47 for details.
Start/Stop key Starts/stops the mixer.
If the device has been setup for external start/stop control, the
external control signal from the packaging machine determines
when the mixer starts and stops and the Start/Stop key is disabled.
1SPEVDU
4UBSU
'MPX
MNJO
.FOV1SPEVDU
CBS CBS CBS CBS
0
$0
/
2
1
&2
3FNPUFDPOUSPM
