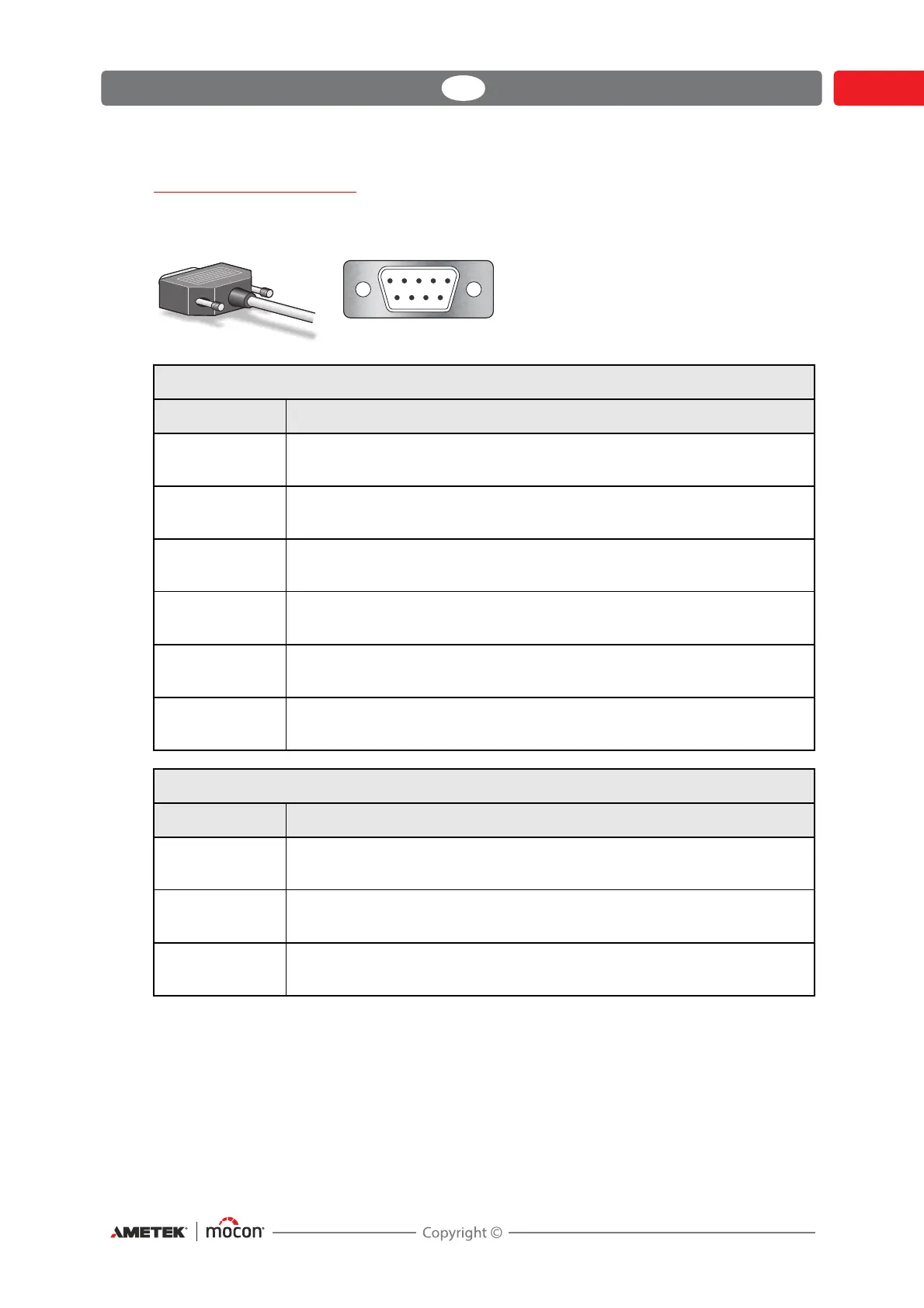

COM-1/COM-2 Cables
The 9-pole communication cables should have the following pin connections (female
connectors):
COM-1 Main (MASTER) RS232 communication port (DTE Male)
Pins/text Description
2
"RxD"
Receive data, serial data input from packaging machine / PLC
3
"TxD"
Transmit data, serial data output to packaging machine / PLC
5
"GND"
Ground, signal ground
7
"RTS"
Request To Send, signal output to packaging machine / PLC
(CURRENTLY NOT USED)
8
"CTS"
Clear To Send, signal input from packaging machine / PLC
(CURRENTLY NOT USED)
9
"+5V"
Limited current output supply +5V maximum current: 250mA
COM-2 Main (SLAVE) RS232 communication port (DTE Male)
Pins/text Description
2
"RxD"
Receive data, serial data input from packaging machine / PLC
3
"TxD"
Transmit data, serial data output to packaging machine / PLC
5
"GND"
Ground, signal ground
1
6
2
7
3
8
4
9
5
