Hanging the NiteHAWK on a Bracket
CAUTION!
The NiteHAWK weighs 180 pounds (82 kg) and requires at least two people for
lifting. To see the Hanger Bracket alignment to the holes in the back panel, open the
Main Door.
1. As you lift the NiteHAWK to the Hanger Bracket, look through the opened door to
be sure the keyhole slots of the NiteHAWK Back Panel are aligned with the
spools of the Hanger Bracket.
2. Push the NiteHAWK against wall and lower it onto the spools.
3. While the Door is still opened, visually check that the NiteHAWK Back Panel is
properly seated on the spool slots.
4. Reinstall the Retainer Brackets and tighten the screws to lock the NiteHAWK on
the Hanger Bracket. Refer to Figure 1–2.
Loosen Screws
Hanger Bracket Spool
Loosen Screws
Retainer Brackets

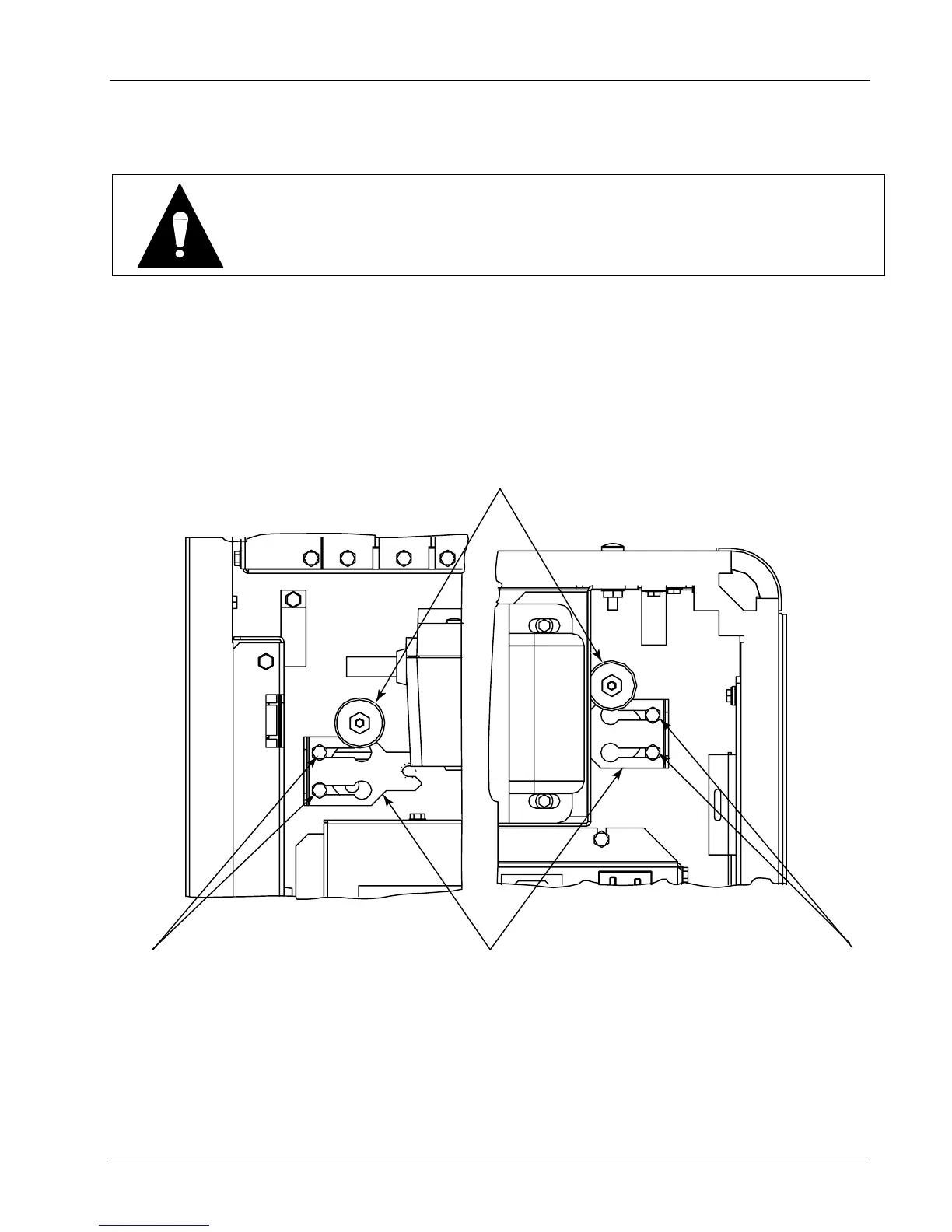

Figure 1–2 – Reinstalling the Retainer Brackets
