AMI NiteHAWK - Figure 8-9 - Output Transformer Assembly

NiteHAWK Internet Jukebox Parts Catalog
22022613 Rev B 8-15

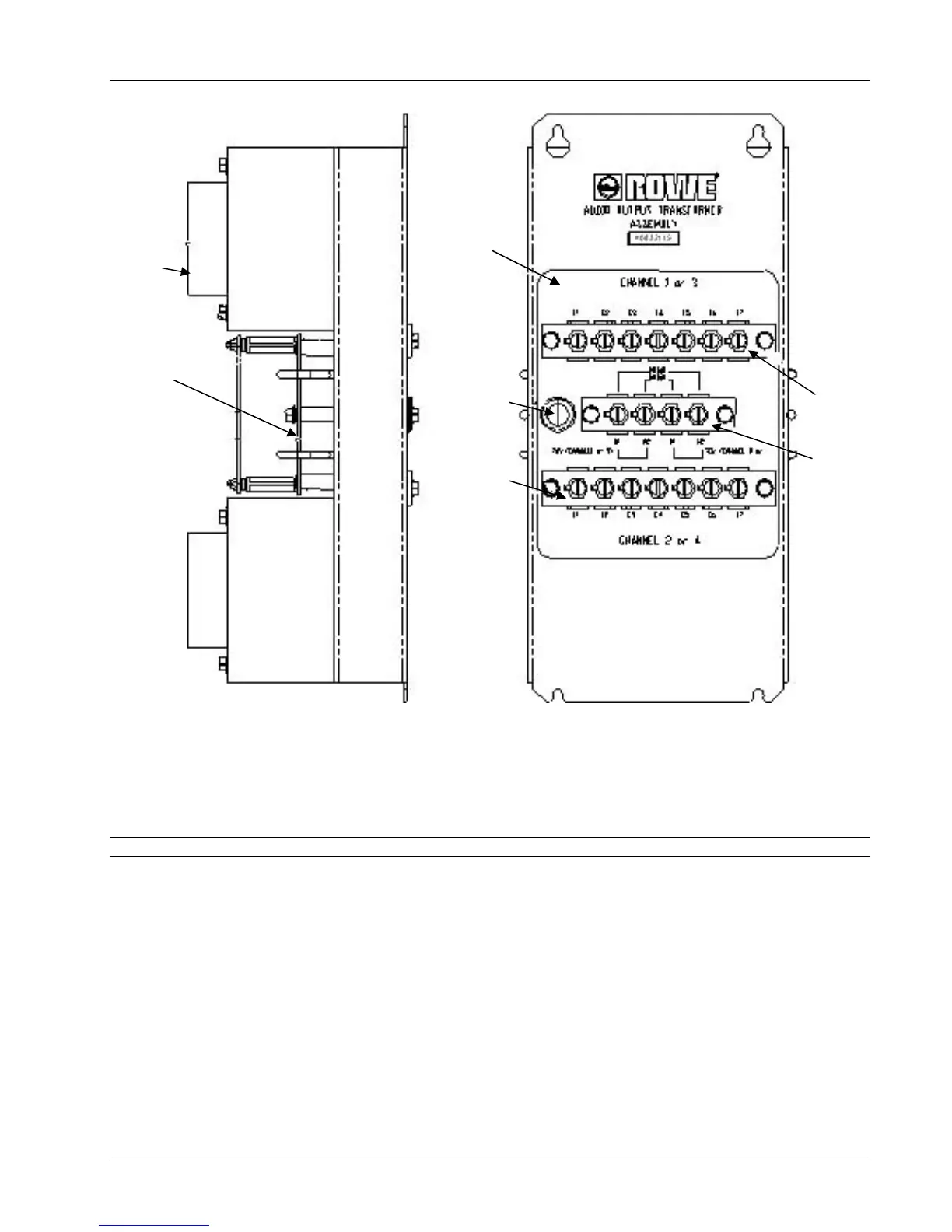

Figure 8–9 – Output Transformer Assembly
Ref. Part No. Description Qty
40832115 Output Transformer Assembly .................................................................................. Ref
1 61133101 Chassis – Audio Output ............................................................................................... 1
2 30426707 Binding Post Strip ........................................................................................................ 2
3 30426706 Binding Post Strip ........................................................................................................ 1
4 70233206 Bushing – Snap (Split) ................................................................................................. 1
5 40949203 CBA – Output Resistor ................................................................................................ 1
6 40633503 Transformer – Output .................................................................................................. 2
Items Not Shown:
34033402 Harness Assembly – Output Transformer ................................................................... 1
21963843 Jumper Assembly ........................................................................................................ 2
1
2
4
2
3
6
5
