AMI NiteHAWK - Figure 3-16 - Volume Connections Using Existing 3-Wire or 4-Wire Cable 6 Conductor Modular Wall Jack Radio Shack Model LT-468 Catalog #279-005

Sound System Setup NiteHAWK Internet Jukebox
3-28 22022613 Rev B

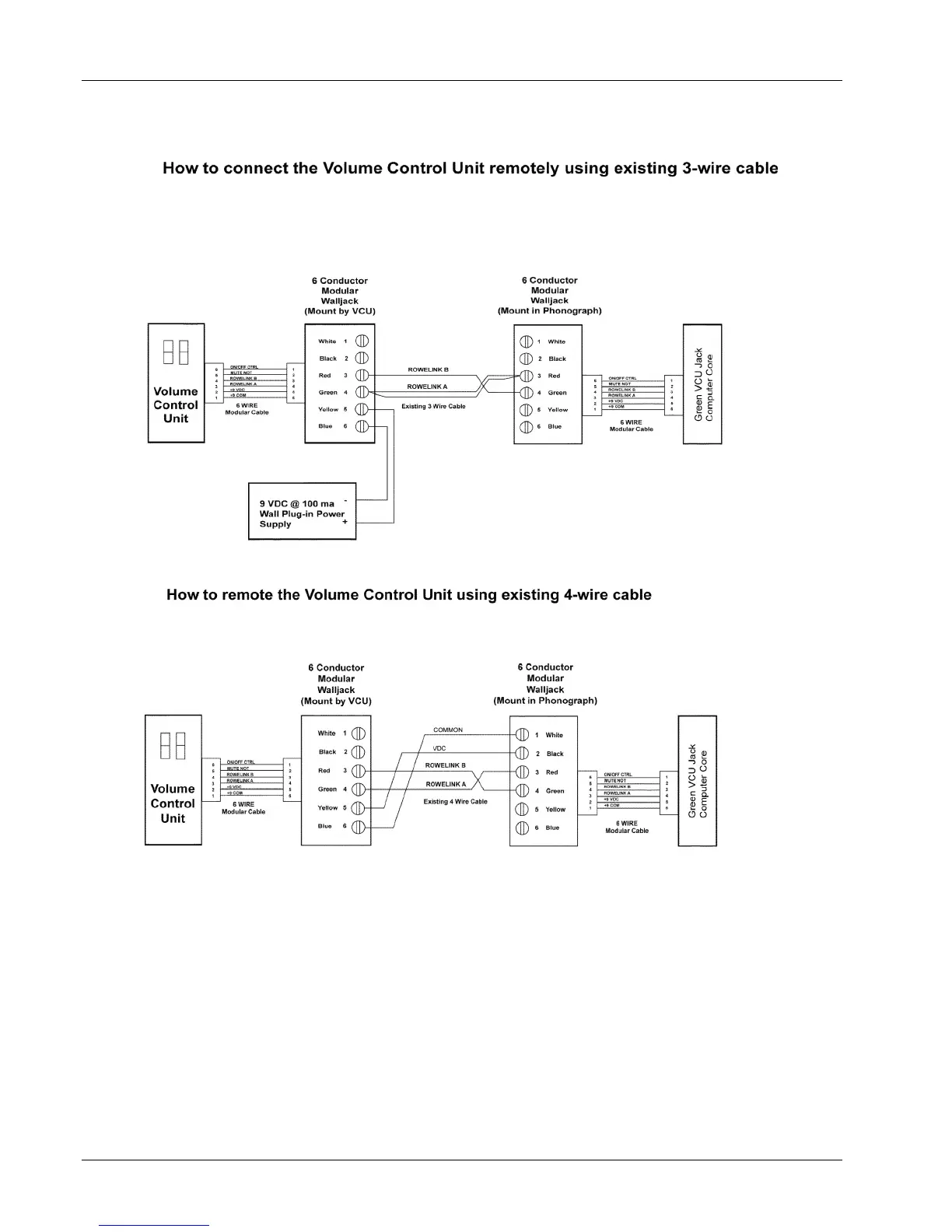

Figure 3–16 – Volume Connections Using Existing 3-Wire or 4-Wire Cable
6 Conductor Modular Wall Jack Radio Shack Model LT-468 Catalog #279-005
