NiteHAWK Internet Jukebox Parts Catalog
22022613 Rev B 8-13

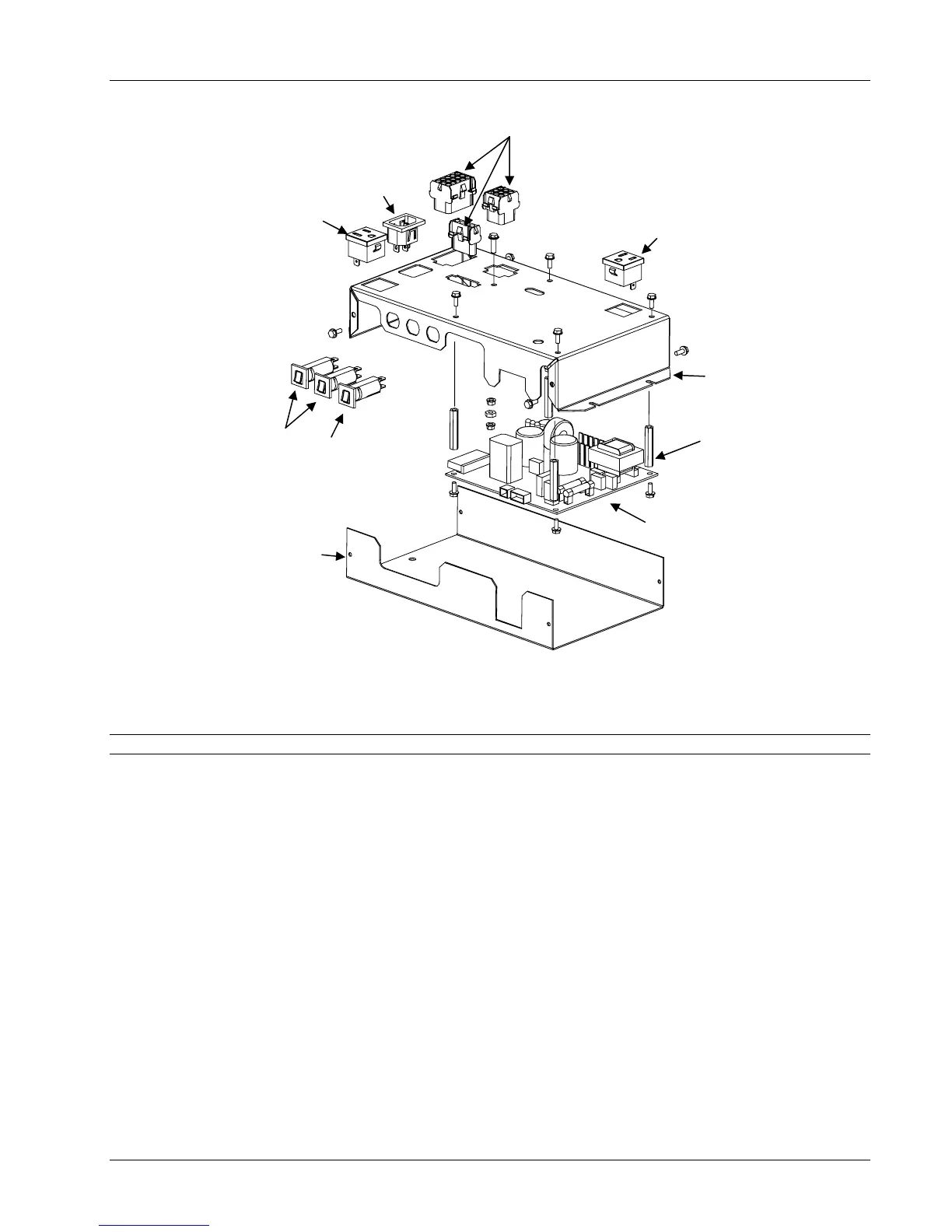

Figure 8–7 – Power Supply Assembly
Ref. Part No. Description Qty
22145809 Power Supply Assembly .......................................................................................... Ref.
1 21375902 Outlet – Convenience .................................................................................................. 2
2 22118703 Power Inlet IEC 320 C-14 ............................................................................................ 1
3 34038808 Harness Assembly – Power Supply (Only Connectors Shown) .................................. 1
4 22145908 Chassis – Power Supply .............................................................................................. 1
5 22141301 Standoff – #8-32 x 1.5 ................................................................................................. 4
6 40923409 CBA – Power Supply (with Router Reset) ................................................................... 1
7 22146002 Cover – Power Supply ................................................................................................. 1
8 70073606 Circuit Breaker (3 AMP) ............................................................................................... 1
9 70073609 Circuit Breaker (6 AMP) ............................................................................................... 2
6
4
9
7
1
2
5
1
8
3
