AMI NiteHAWK - Figure 8-4 - Shell Assembly (Internal View, Left Hand Side)

Parts Catalog NiteHAWK Internet Jukebox
8-10 22022613 Rev B

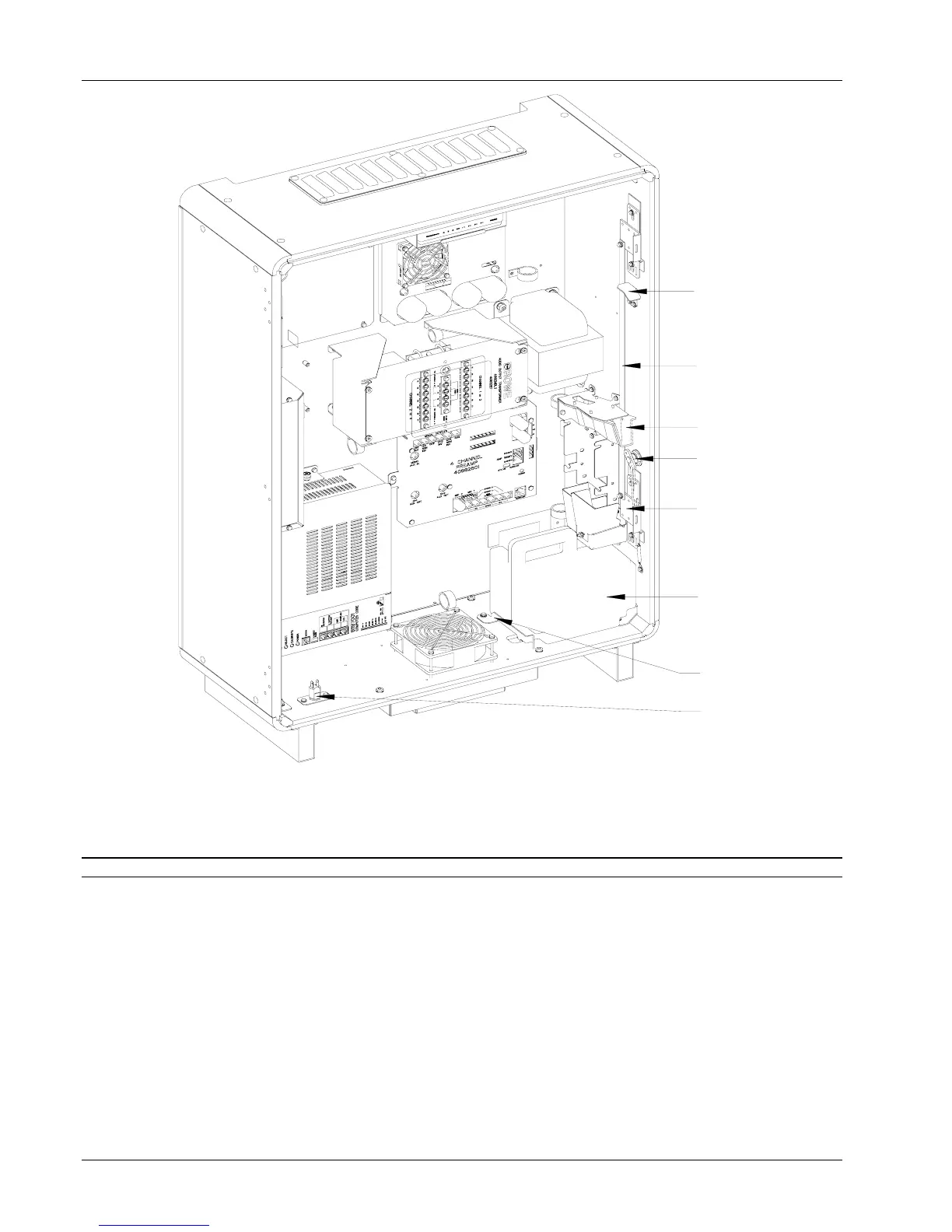

Figure 8–4 – Shell Assembly (Internal View, Left Hand Side)
Ref Part No. Description Qty
1 22214003 Bracket – Door Ramp ................................................................................................... 1
2 21998205 Coupler Latch ............................................................................................................... 1
3 61182401 Chute – Coin ................................................................................................................ 1
40966001 Bracket – Coin Chute Mount ........................................................................................ 1
40966501 Bracket – Coin Deflector .............................................................................................. 1
4 21865308 Link ............................................................................................................................... 1
5 21947403 Lock Bar Assembly ...................................................................................................... 2
21946302 Plate – Lock Bar ........................................................................................................... 2
6 21581801 Switch – ATX Power Reset (Black Pushbutton) .......................................................... 1
7 22146901 Retainer – Coin Container ............................................................................................ 1
8 25060401 Switch – Router Reset (Red Pushbutton) .................................................................... 1
22142101 Plate – Reset ................................................................................................................ 2
8
3
4
6
(behind
coin box)
7
1
2
5
