Parts Catalog NiteHAWK Internet Jukebox
8-12 22022613 Rev B

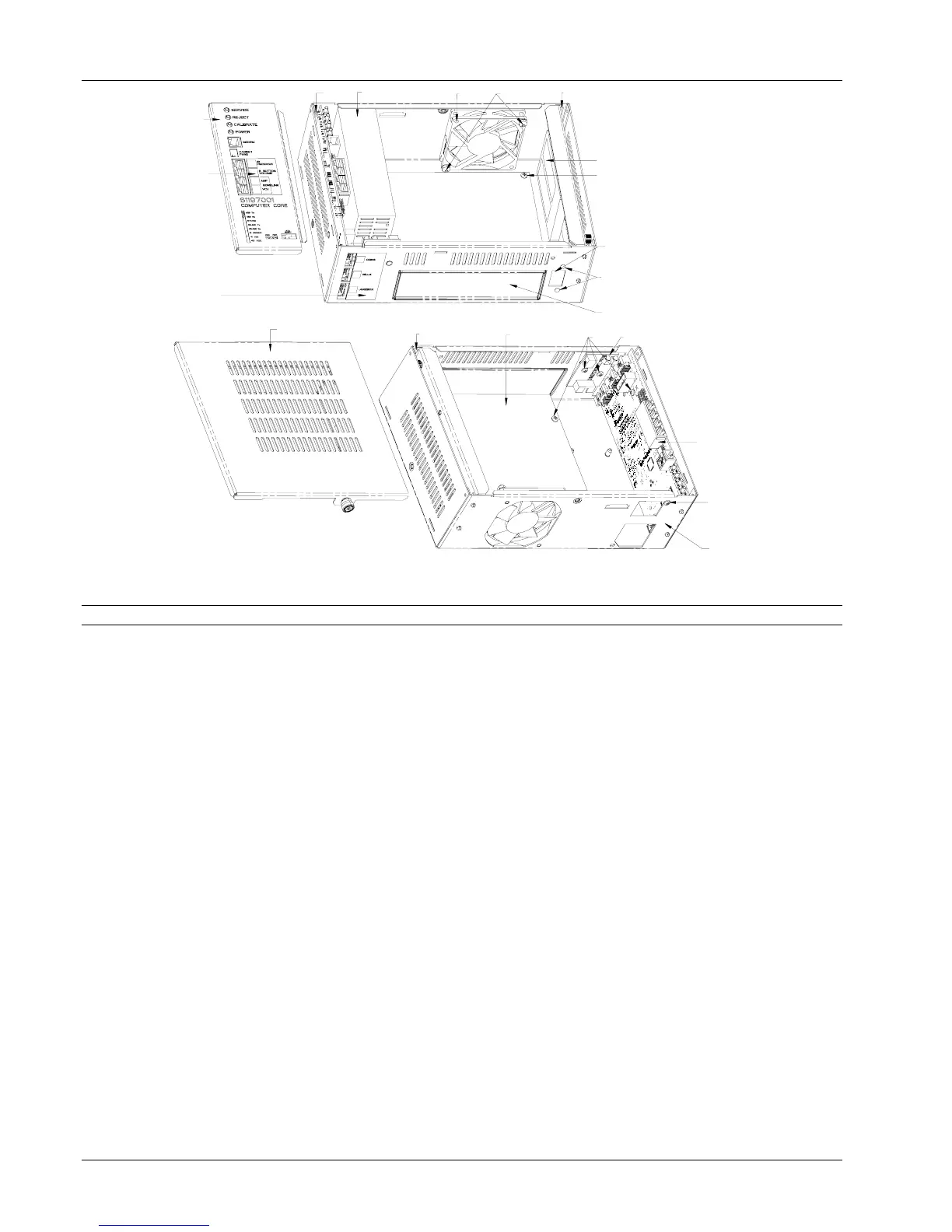

Figure 8–6 Computer Core Assembly
Ref. Part No. Description Qty
61197002 Computer Core and Bracket Assembly ................................................................... Ref.
1 22137302 Card Guide ................................................................................................................... 3
2 34052406 Circuit Board Assembly – power on/reset/LEDs .......................................................... 1
3 34101101 Cover – Top Left .......................................................................................................... 1
4 40983501 Cover – Top ................................................................................................................. 1
5 34039108 Fan – with connector .................................................................................................... 1
6 22321501 Hard Drive Bracket ....................................................................................................... 1
22219001 U.S. Hard Drive (not installed in assembly, shown for reference) ............................... 1
22219002 Canadian Hard Drive (not installed in assembly, shown for reference) ....................... 1
7 61197101 Computer Core Assembly Housing .............................................................................. 1
8 I/O Bezel (included with item 12) ................................................................................. 1
9 87842300 Nut – #6-32 Keps Hex MS ........................................................................................... 2
10 40952203 Power Supply ............................................................................................................... 1
11 80402304 Screw – #6-32 X 1/4 Phillips Head Machine ................................................................ 8
12 40924212 Single Board Computer ................................................................................................ 1
13 61196903 Circuit Board Assembly – Core I/O .............................................................................. 1
14 22322102 Bracket PCI Modem/Blockout ................................................................................... 1
15 80351608 #4-40 X 1/2 Phillips RD HMS ....................................................................................... 2
16 22132250 Cable Assembly – DR Ribbon (Not Shown) ................................................................ 1
17 22132253 Harness – SATA Power (Not Shown) .......................................................................... 1
18 22132252 Harness – SATA Data (Not Shown) ............................................................................. 1
19 22132255 Cable Assembly – On/Reset (Not Shown) ................................................................... 1
20 22167704 Label Computer Core Connection Colors ................................................................. 1
21 22167705 Label Computer Core Connectors ............................................................................ 1
22 22132256 Cable Assembly – COM2 to I/O (Not Shown) ............................................................. 1
23 00710203 Sponge Rubber .......................................................................................................... 7”
1
10
5
9
1
6
11
3
20
8
15
14
1
12
11
2
13
4
7
21
11
FASTENS
POWER
SUPPLY
