AMI NiteHAWK - Figure 8-5 - Shell Assembly (Internal View, Right Hand Side)

NiteHAWK Internet Jukebox Parts Catalog
22022613 Rev B 8-11

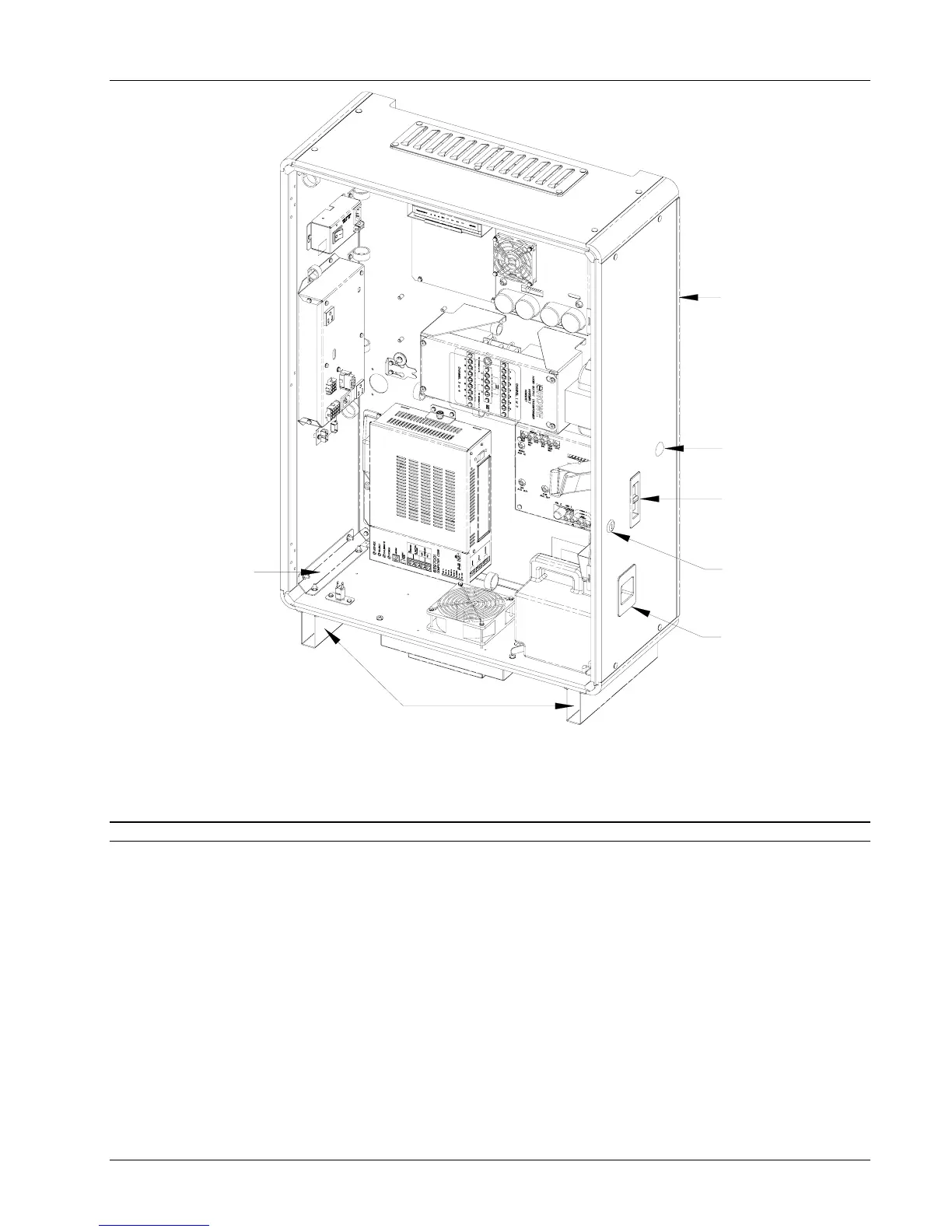

Figure 8–5 – Shell Assembly (Internal View, Right Hand Side)
Ref Part No. Description Qty
1 61182103 Panel – Cabinet Back .................................................................................................. 1
2 70134146 Bolt – 1/2 x 13 x 1.25 Carriage .................................................................................... 1
92400061 Nut 1/2–13 Type 7 (Not Shown) .................................................................................. 1
3 34007701 Bezel – Reject Button .................................................................................................. 1
34007601 Button – Reject ............................................................................................................ 1
4 70163215 Cylinder Lock ............................................................................................................... 1
21947501 Washer – Indexing ....................................................................................................... 1
21425601 Lockbolt ....................................................................................................................... 1
5 30781702 Cup – Slug (Black) ....................................................................................................... 1
21792901 Door – Slug Cup .......................................................................................................... 1
21793001 Bracket – Slug Cup ...................................................................................................... 1
6 40966901 Skid Rail ....................................................................................................................... 2
7 40966301 Bracket – Cabinet Corner ............................................................................................ 4
21572601 Cable – Fall Stop (Not Shown) .................................................................................... 1
