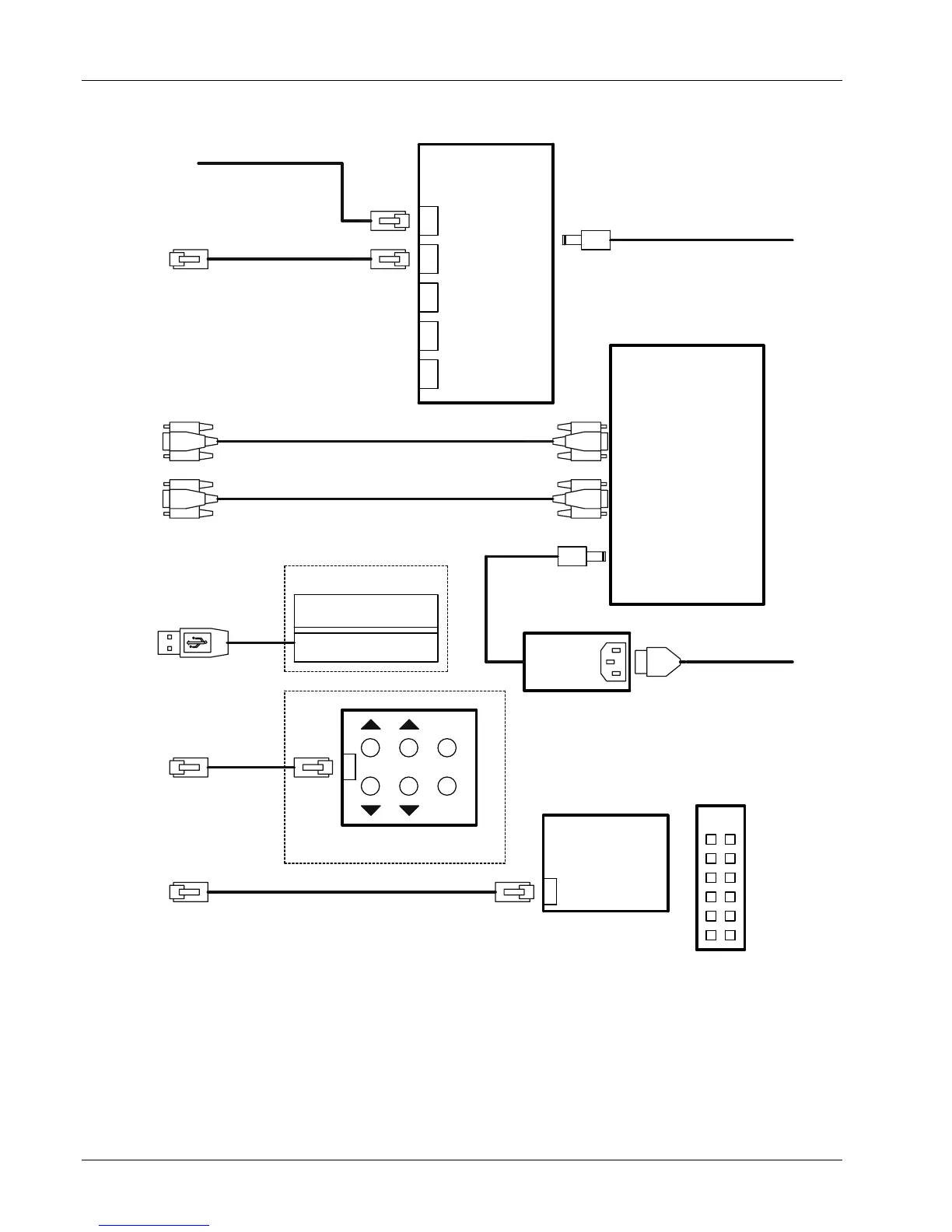

Figure 7–1 – NiteHAWK Wiring Diagram (Sheet 1)
POWER PLUG
POWER PLUG
28280004
4-PORT WIRELESS
ROUTER
WAN PORT
LAN PORTS
1
2
3
4
ETHERNET CABLE
COMES WITH
ROUTER
TO CUSTOMER PROVIDED
EQUIPMENT OR LOCAL LAN
22185301
CREDIT CARD READER
12 VDC POWER
VGA VIDEO
SERIAL TOUCH CONTROL
22160806
19" FLAT PANEL
DISPLAY AND
TOUCH SCREEN
POWER CABLE
COMES WITH
ROUTER
21121236
AC POWER
ADAPTER
TOUCH CONTROLLER CABLE
COMES W I TH MONITOR
VGA CABLE
COMES W I TH MONITOR
OPTIONAL
34038702
22164202
INT EXT
POWER
CANCEL
OPTIONAL
70004-1A WIRED REMOTE
34037905
62009-A-LF
POWER ADAPTER
COMES WITH
MONITOR
TO IR REMOTE (Yellow)
ON CORE COMPUTER
TO 6 BUTTON R EMOTE (R ed)
ON CORE COMPUTER
TO USB ON
CORE COMPUTER
TO COM1 ON
CORE COMPUTER
TO VGA ON
CORE COMPUTER
TO RJ45 ETHERNET ON
CORE COMPUTER
NITEHAWK (CJE)
MACHINE SCHEMATIC
PAGE 1
40846302
IR
RECEIVER
21958306
TRANSMITTER
