5.3.3 Cable Connection Module
The Cable Connection Module (CCMD) is a resistor-diode barrier, which interfaces between the power
circuit and the IPD Relay. It also provides an automatic High Voltage DC ‘Insulation Test’ following a
successful Intrinsically Safe Earth Fault Lockout Test. The CCMD is housed in an encapsulated
module.
Ensure that the earth connections are reliably installed, as this is the basis of protection for all barriers,
including the CCMD.

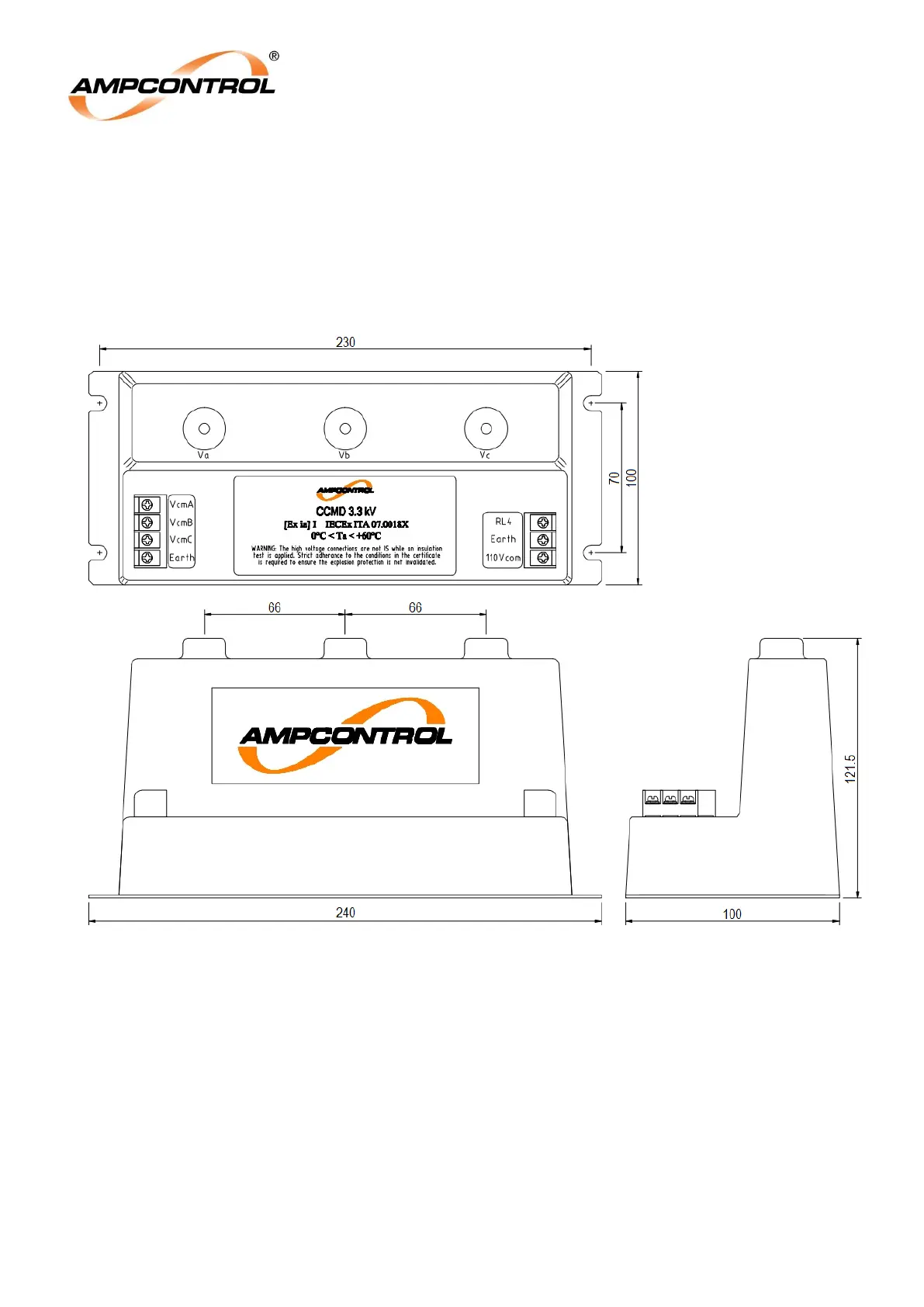

Figure 5.5: 3.3kV CCMD Dimensional Details
