11 VOLTAGE RELATED FUNCTIONS
The IPD relay uses the Cable Connection Module (CCMD/CCMA) to monitor the magnitude of the
voltage on the load side of the outlet’s main contactor. The voltage measurement is used to implement
the following functions:
 Main Contactor Fail Protection
 Under-Voltage Trip
 Voltage Metering

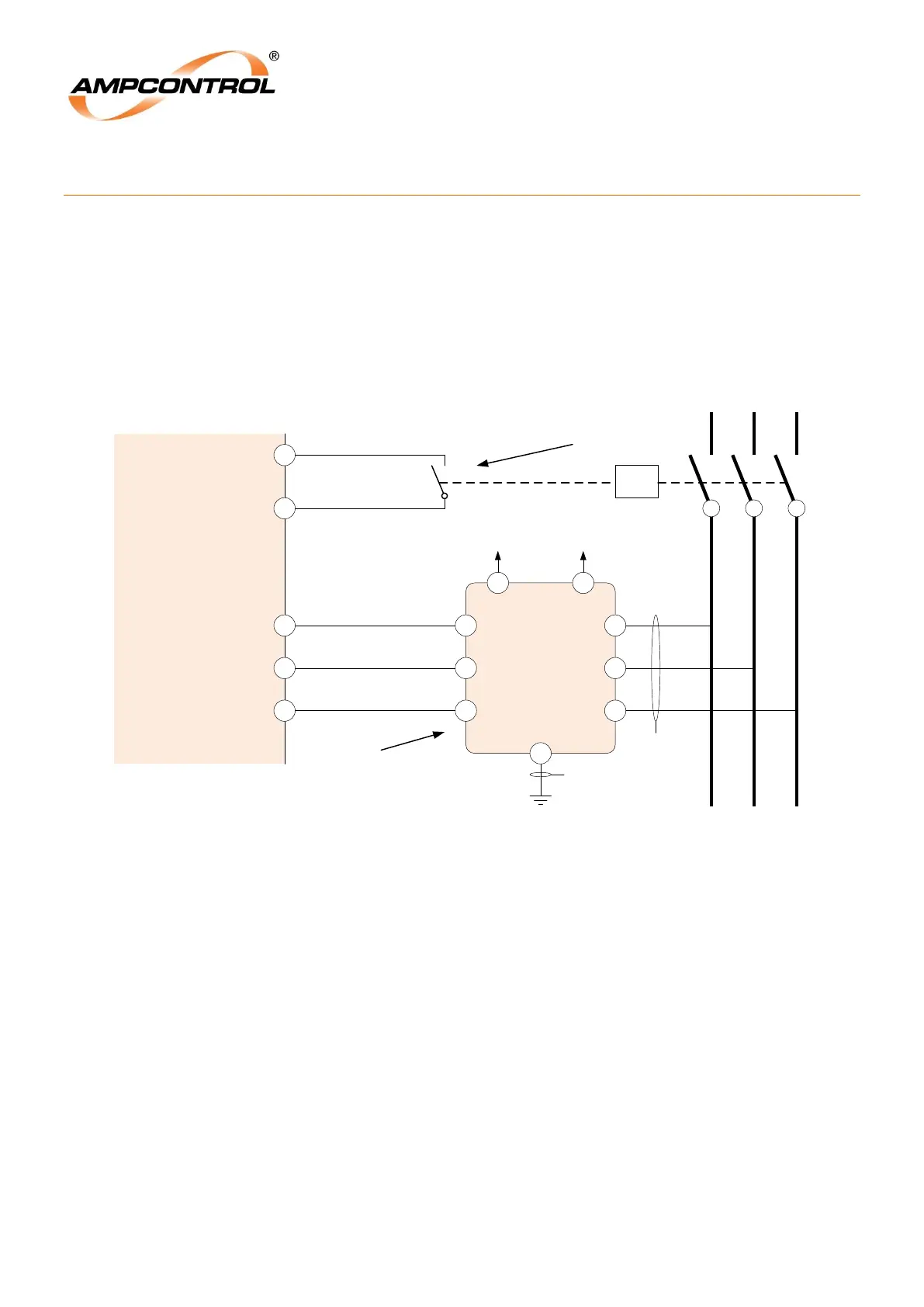

Figure 11.1: Voltage Monitoring Circuit Terminations
IPD
Relay
VCmA
03
VCmB
04
05
VCmC
A B C
Phase Conductors
From Contactor
CCMD
VcmA
VcmB
VcmC
Earth
Minimum 4mm
2
Va
Vb
Vc
Flying Leads
RL4 110Vcom
See EFLO
Connections
Ensure type matches
system voltage
MC
MCI+
27
MCI-
28
Main Contactor
Position Feedback
