Installation and Setup

Instruction Manual – DXLink™ Twisted Pair Transmitters/Receiver

Mounting Options for Modules (Rack Trays and Mounting Brackets)

Caution: To prevent overheating, avoid placing high heat producing equipment directly above or

below the modules. We recommend allowing plenty of clearance above the vent holes on top of the

modules. Do not place anything directly on top of the modules that would restrict airflow through the

vent holes on top.

The Multi-Format TX, HDMI TX, and HDMI RX are classified as V Style modules, which have

optional V Style mounting hardware. These versatile mounting options include rack trays and mounting

brackets for desktops, under desks, on walls, and on poles. For details on V Style Mounting Kit options,

see www.amx.com.

Important: When mounting under a surface, the module should be mounted upright and lowered in

the slots to provide an airflow gap between the surface and the vent holes. If not using V Style

brackets, be sure to leave a gap between the top of the unit and the surface for heat to escape.

Mounting Options for Wallplates

Wallplate TX – The holes in the Wallplate TX’s mounting bracket are designed to accommodate a

variety of double-gang back boxes using two or four screws. Two types of screws are provided: standard

and metric. Be sure to orient the mounting bracket as shown in FIG. 21.

Decor Wallplate TX – The Decor Wallplate TX mounts in a standard US double-gang back box.

Standard decor style cover plates are customer provided to allow matching the individual decor of an

environment or matching other standard decor covers in a room/area.

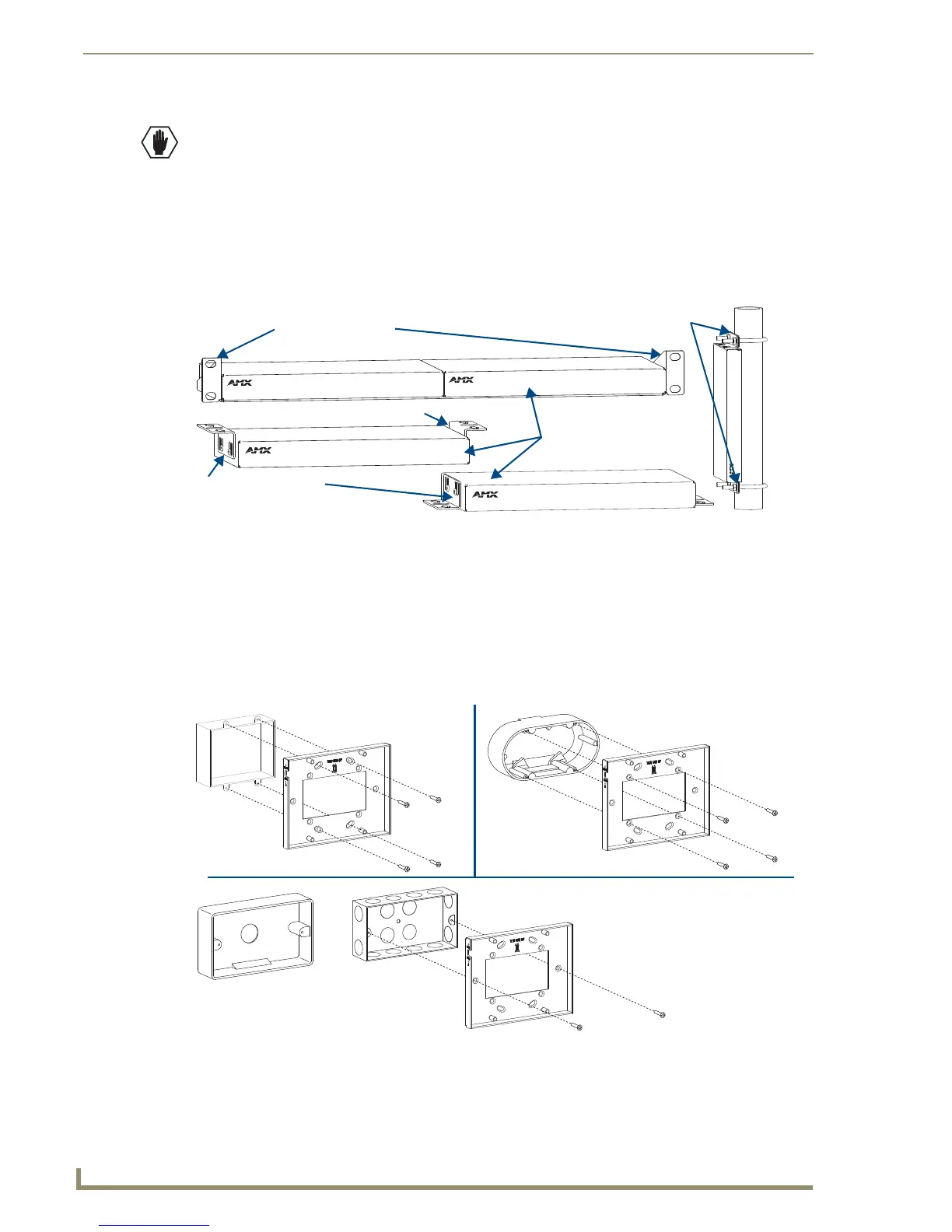

FIG. 20 V Style mounting hardware

FIG. 21 Wallplate mounting bracket used with variety of double-gang back boxes

V Style Single Module

Surface Mount brackets

V Style Module Tray

V Style Single Module Pole Mount

Do not mount upside down

Leave minimum gap of 3/8 in (9 mm)

UK surface mount on exterior wall

UK flush mount inside wall

US flush mount inside wall

European flush mount inside wall
