ADV7511W HARDWARE USER’S GUIDE
Rev.A
Page 26
of 45
Rev A

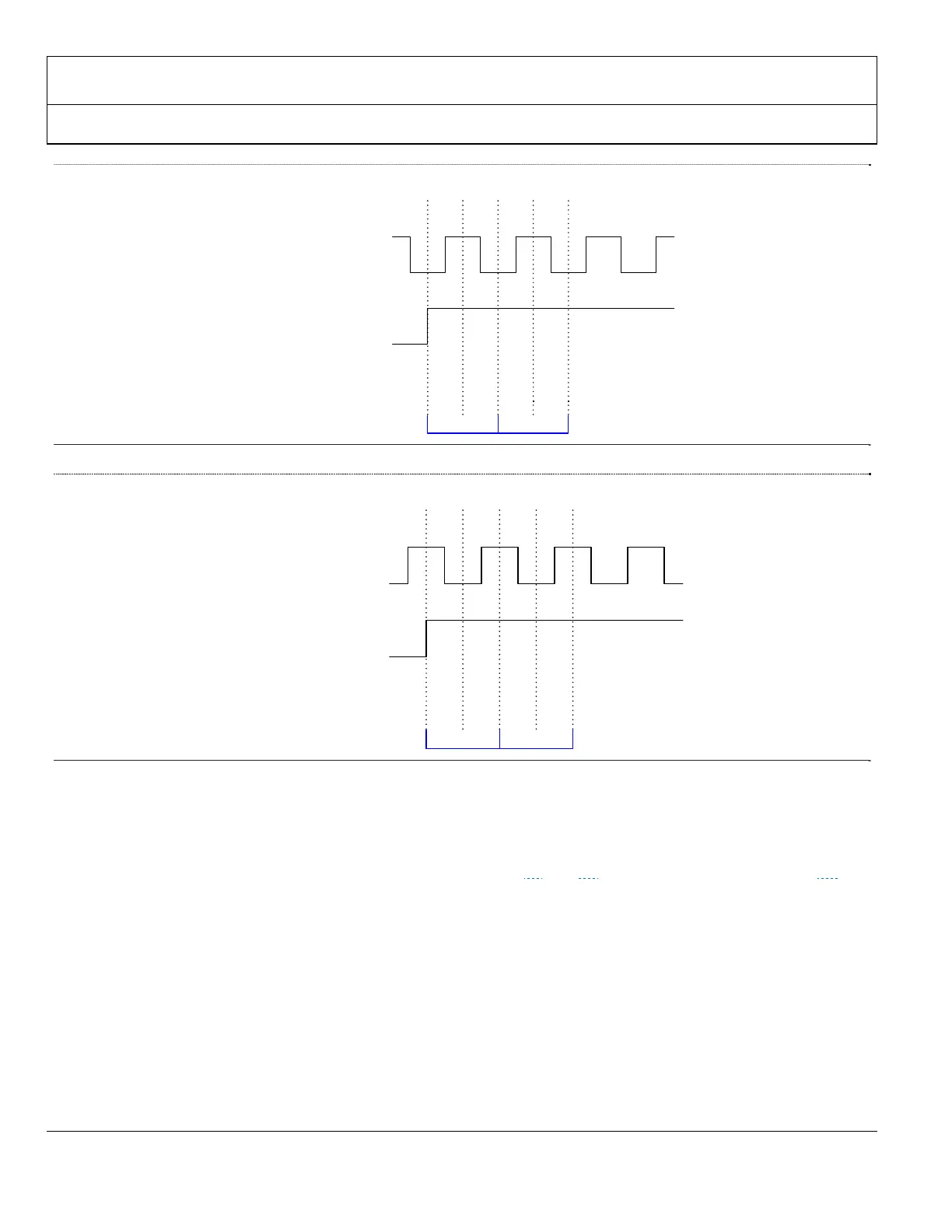

Figure 8
DDR DE timing - Register 0x16[1] = 1
Figure 9 DDR DE timing - Register 0x16[1] = 0
6.1.3 Audio Data Capture Block
The ADV7511W supports multiple audio interfaces and formats: I2S, S/PDIF and HBR. The ADV7511W supports
audio input frequencies of 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, and higher (with use of HBR).
The MCLK signal is optional unless specifically listed in
▶ Table 11. The 1I2S Audio input can support standard 1I2S,
left-justified serial audio, right-justified serial audio and AES3 stream formats. The Audio Data Capture Block captures
the audio samples and converts them into audio packets which are sent through the HDMI link (if the ADV7511W is
set in HDMI mode). Please refer to the ADV7511 Programming Guide for more information.
6.1.3.1 Supported Audio Input Format and Implementation
ADV7511W is capable of receiving audio data for packetization and transmission over the HDMI interface in any of
the following formats:
■ Inter IC Sound (I2S)
■ Sony/Philips Digital Interface (S/PDIF)
■ High Bit-Rate (HBR)
2
nd
edge
1
st
edge
DDR CLK
DE
1
st
Pixel
Data On Input Bus
2
nd
Pixel
2
nd
edge
1
st
edge
2
nd
edge
1
st
edge
DDR CLK
DE
1
st
Pixel
Data On Input Bus
2
nd
Pixel
2
nd
edge
1
st
edge
To Next Page
