ADV7511W HARDWARE USER’S GUIDE
Rev. A
Page 35
of 45
Rev A
separate coefficients. In each CSC channel, the order of input remains the same – Out_A will have the same input
(In_A, In_B, In_C) as Out_B and Out_C. The coefficients will be different for each channel. Also included is an offset
value for each row of the matrix and a scaling multiple for all values. Each coefficient is 13 bit 2’s complement
resolution to ensure the signal integrity is maintained. The CSC
is designed to run at speeds up to 165Mhz, supporting
resolutions up to 1080p
at 60Hz and UXGA at 60Hz. With “any-to-any” color space support, formats such as RGB,
YUV, YCbCr, and others are supported by the CSC
.
▷
Please refer to the ADV7511 Programming Guide for more information about this block.
Table 15
Channel Assignment for Color Space Converter (CSC)
Input RGB YCrCb Coefficients Output
In_A Red Cr
A1,A2,A3,A4 Out_A
In_B Green Y
In_C Blue Cb
In_A Red Cr
B1.B2.B3.B4 Out_B
In_B Green Y
In_C Blue Cb
In_A Red Cr
C1,C2,C3,C4 Out_C
In_B Green Y
In_C Blue Cb

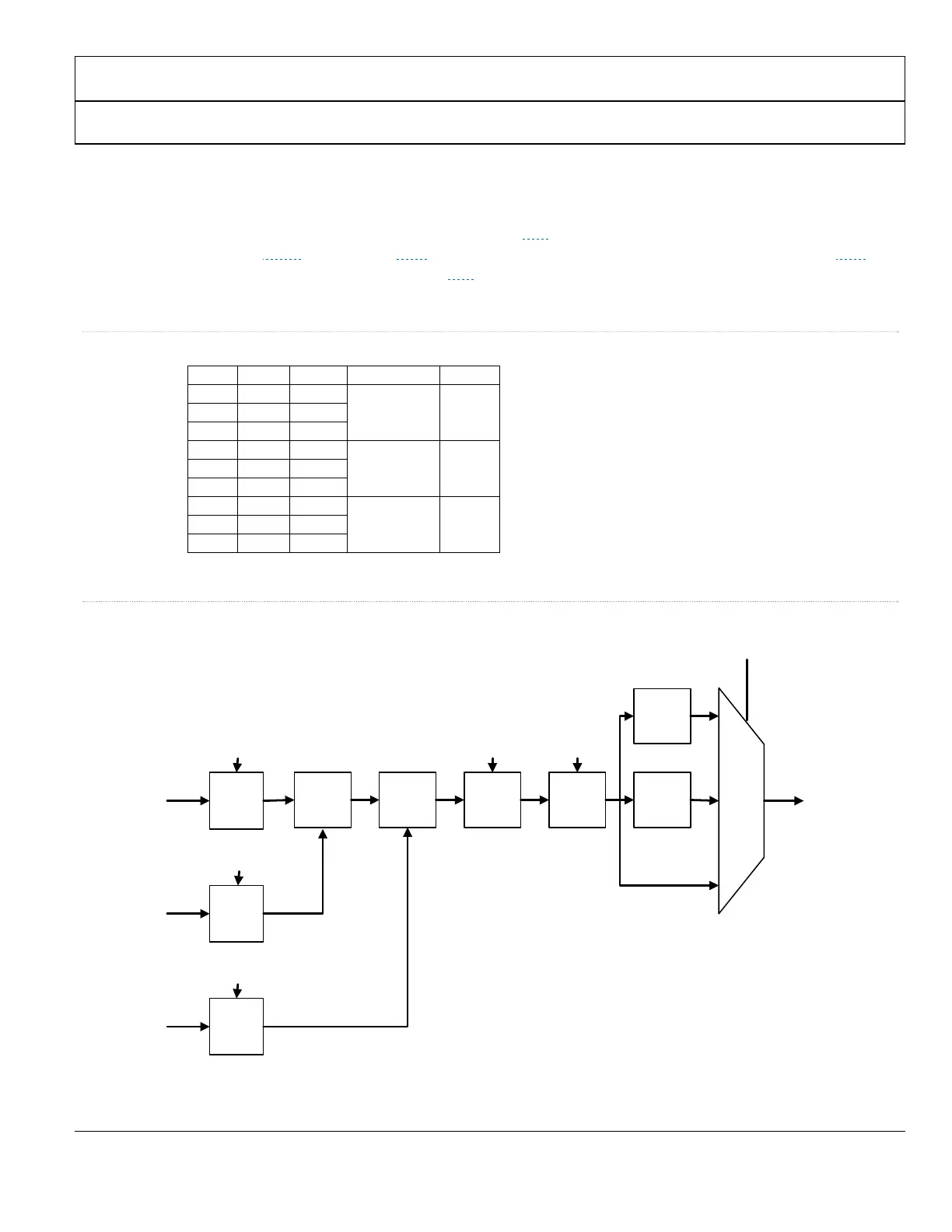

Figure 18
Single Channel of CSC (In_A)
2x
4x
÷++
x
+
x
x
2
1
0
CSC Mode 0x18[6:5]
A1[12:0]
A2[12:0]
A3[12:0]
A4[12:0]4096
In_A[11:0]
In_B[11:0]
In_C[11:0]
Out_A[11:0]
