Andover Controls Infinity User Manual

Installation and Layout
Andover Controls Corporation 3-11
TOC
Table 3-2 shows the settings for the Options dipswitch..
Andover Controls recommends setting the FSCS for 9600 baud, with
auto-blanking disabled, therefore all the dipswitches are OFF.

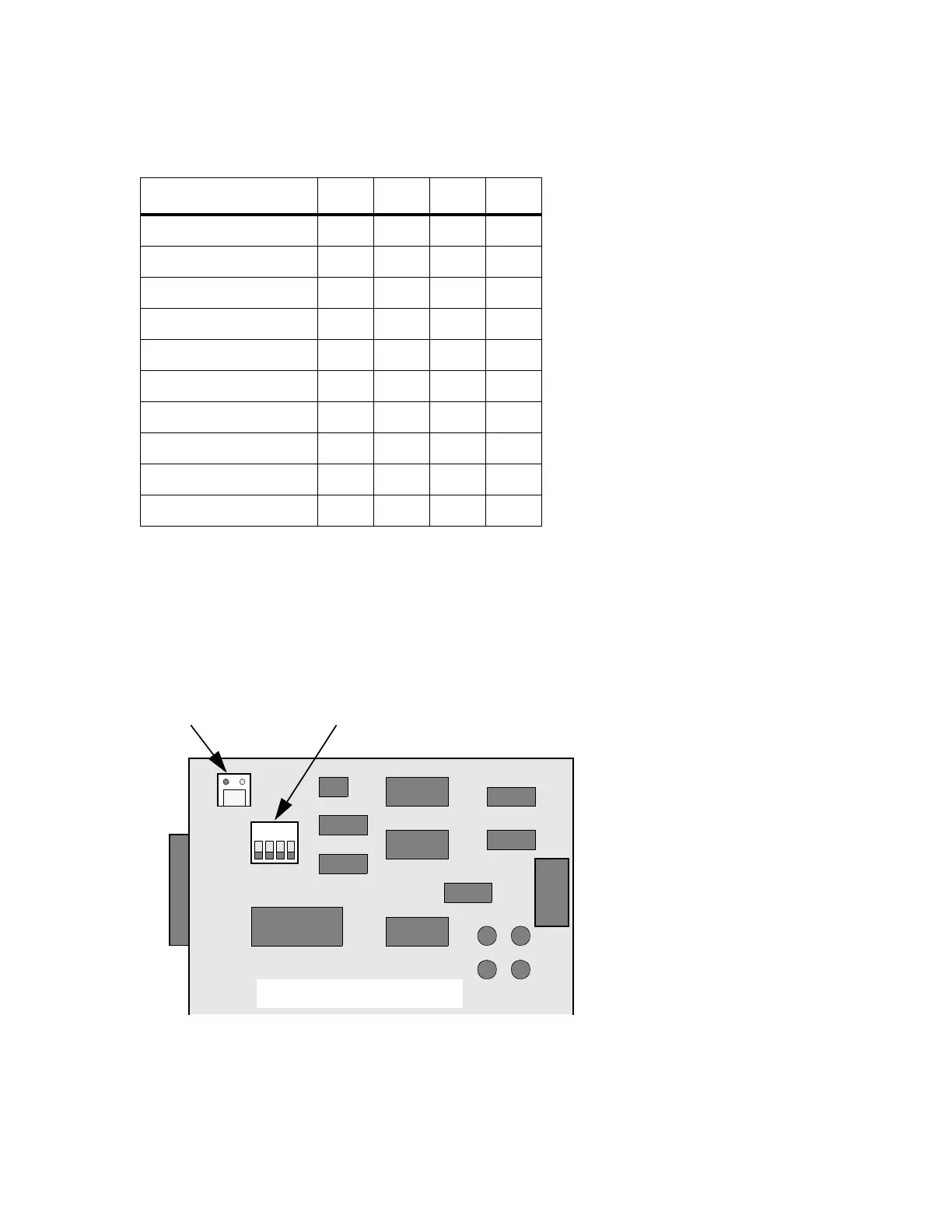

Figure 3-6 shows the location of the switches on the Q-Card.
Figure 3-6. The Q-Card switch settings
Table 3-2. Q-Card Options Dipswitch Settings
Switch Position: 1234
Auto-blanking ON ON
Auto-blanking OFF OFF
9600 Baud OFF OFF OFF
7200 Baud OFF OFF ON
4800 Baud OFF ON OFF
3600 Baud OFF ON ON
2400 Baud ON OFF OFF
1200 Baud ON OFF ON
600 Baud ON ON OFF
300 Baud ON ON ON
Q-CARD PROCESSOR PCB
1 2 3 4
Reset Switch Options Dipswitch
