Installing the Fire Panel
Refer to the Fire Panel manufacturer’s documentation for installation
and wiring instructions.
The Fire Panel connects to the CX9200 through an RS-232 cable. This
cable should be no longer than 20 feet in length, and must be enclosed
in conduit.

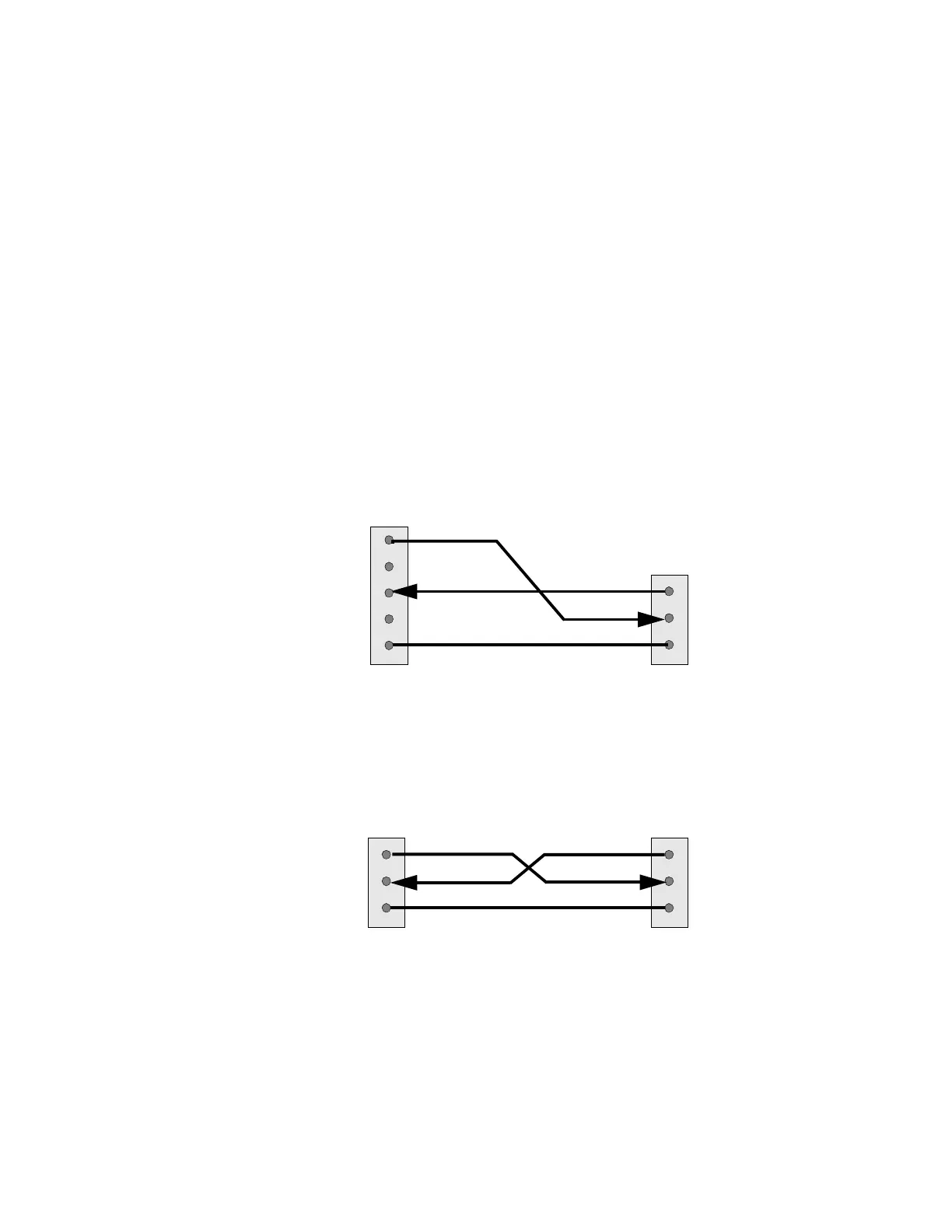

Figure 3-7 shows how to wire the RS-232 cable from the Fire Panel to
the CX9200.
Figure 3-7. Fire Panel RS-232 Wiring
a. Simplex Model 4020
XMIT
RTS
RCV
CTS
GND
Port A
CX9200 DB-25
Pin 2 (TD)
Pin 3 (RD)
Pin 7 (GND)
b. Edwards Systems Technology Model IRC-3
CX9200 DB-25
Pin 2 (TD)
Pin 3 (RD)
Pin 7 (GND)
TXD
RXD
COMM
TB1
