Medium-consistency pump MC
STANDARD, C-01-000000
Rev. 0, 2010.02.09 DESCRIPTION Kap.3 , Seite 7 of 18
GRZ-2698568-v1-Description.FM
Bearing support

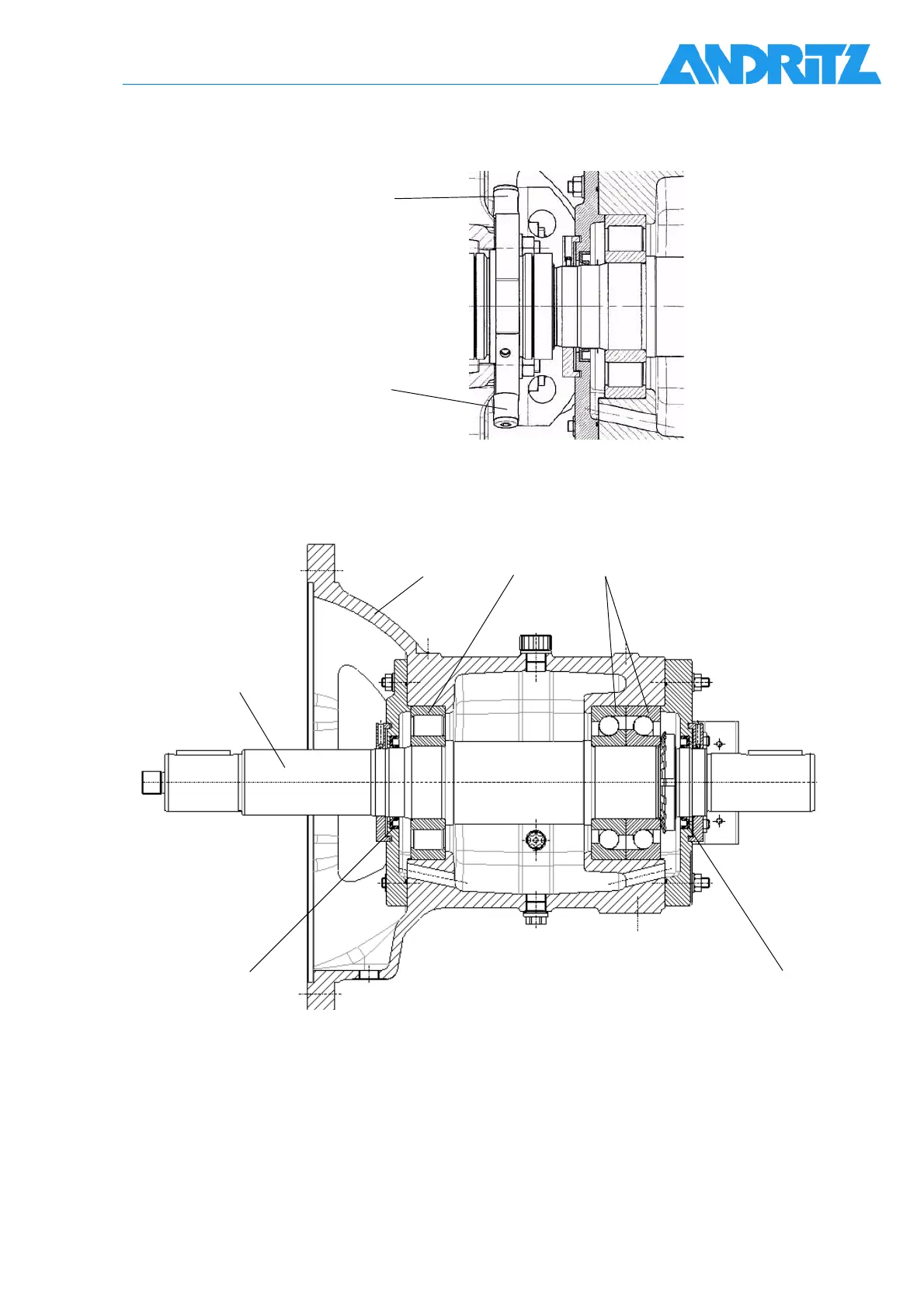

Fig. 3-9 Sealing water connections
Water off
(730.9b)
Water on
(730.9a)
Fig. 3-10 Bearing support
421.1
350
211
322 321
421.2
