Andritz MC - Type Specification

Medium-consistency pump MC
STANDARD, C-01-000000
Rev. 0, 2010.02.09 DESCRIPTION Kap.3 , Seite 13 of 18
GRZ-2698568-v1-Description.FM
3.6 Type specification
3.6.1 Applicable standards
Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ISO 2858
Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ISO 5199
Inspection (Q, H, NPSH) . . . . . . . . . . . . . . . . . . . . . ISO 9906 Class Ι
Product safety . . . . . EN 809, EN ISO 12100-1 and EN ISO 12100-2
Flanged bore . . . . . . . . . . . . . . . . . . . . . . . ISO 7005-1 (PN16, PN25)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . DIN EN 1092-1 (PN16, PN25)
3.6.2 Model designation

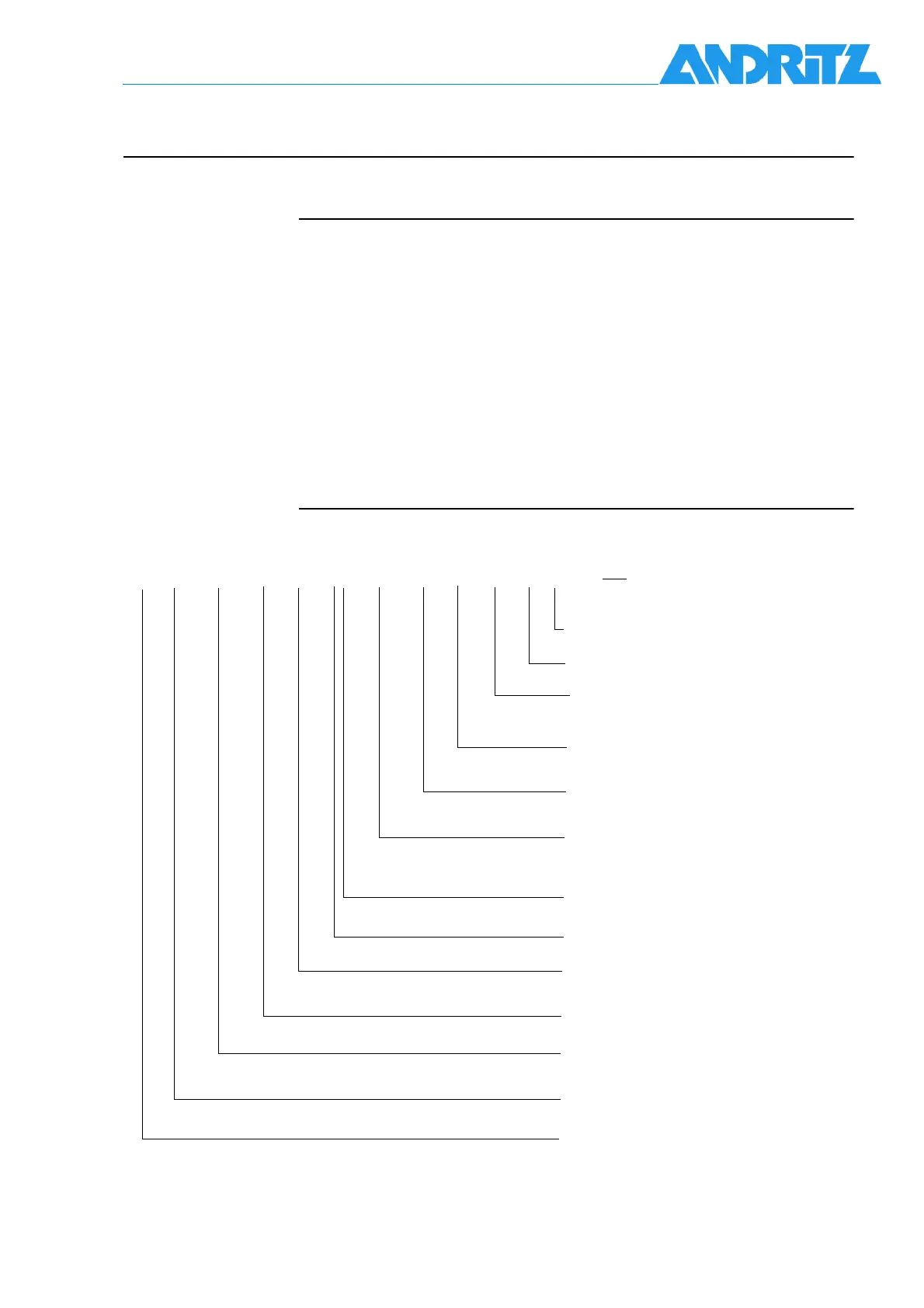

Fig. 3-16 Type Code
MC 125 - 450 - 440/460 - CL - 25 - 200 - 16 - 125 - D - F - 2v
Diameter suction flange (mm)
Pressure class suction flange
(10, 16, 25)
Position degassing line
(R=right, L=left)
Position, delivery branch - view from
motor (R=right,L=left,C=vertical)
Diameter impeller (mm)
Diameter working vanes (mm)
Standard impeller diameter (mm)
Pressure class discharge flange
Diameter discharge flange (mm)
Materialtype
Connection suction flange to
standpipe (welded/flange)
Flow sheet variante
Nominal width of delivery
branch (mm)
Medium consistency
