Medium-consistency pump MC
STANDARD, C-01-000000
Rev. 0, 2010.02.09 DESCRIPTION Kap.3 , Seite 17 of 18
GRZ-2698568-v1-Description.FM
Permitted loads on
connecting
branches
The permitted loads on connecting branches according to the table
(
Tab. 3-8) must be observed.
• Force in N
• Torque in Nm
Type F
y
F
x
=F
z
M
yz
M
zx
=M
xy
MC80-350 8500 2800 650 400
MC100-330 9000 3600 720 480
MC125-450 11000 3800 1100 550
MC150-470 12500 4000 1200 650
MC200-550 16000 5200 1800 960
MC250-600 19000 6800 2150 1240
Tab. 3-8 Permitted loads on connecting branches

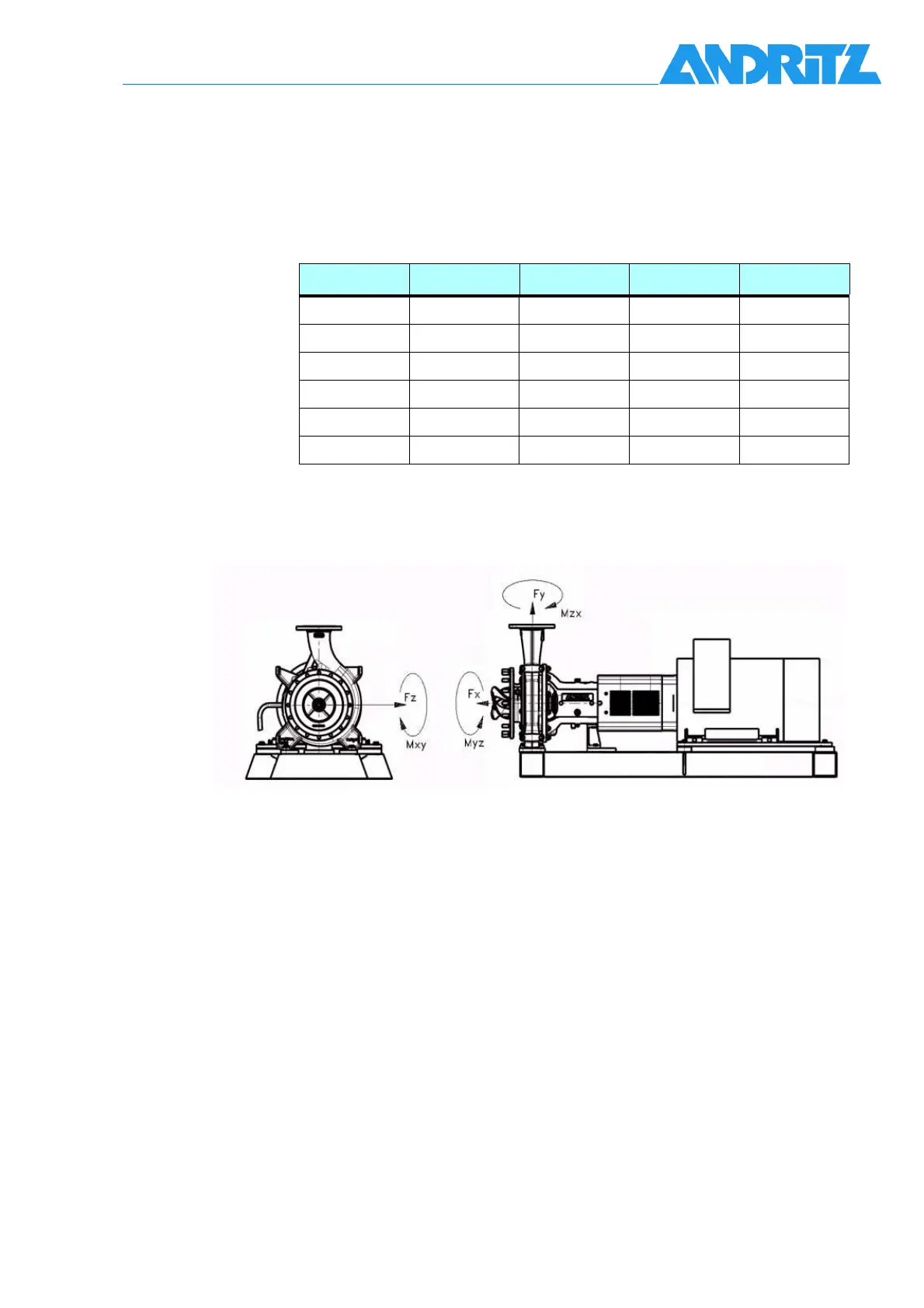

Fig. 3-18 Permitted loads on connecting branches
