Medium-consistency pump MC
STANDARD, C-01-000000
Rev. 0, 2010.02.09 ERECTION WORK and TRANSPORT Kap.4 , Seite 8 of 12
GRZ-2698569-v1-Erection.FM
9 After connecting up the pipes (acc. to Section 5.5.2), the pump
unit is aligned accurately and/or centred in accordance with
the coupling table
/MEDIUM CONSISTENCY PUMP MC/SUPPLIER
DOCUMENTATION/REXNORD
A formal record must be made of pump alignment.
10 When checking the sense of rotation, ensure that the
mechanical seal is not damaged due to dry running (remove
intermediate sleeve from coupling).
11 Mount coupling guard and fill with oil.

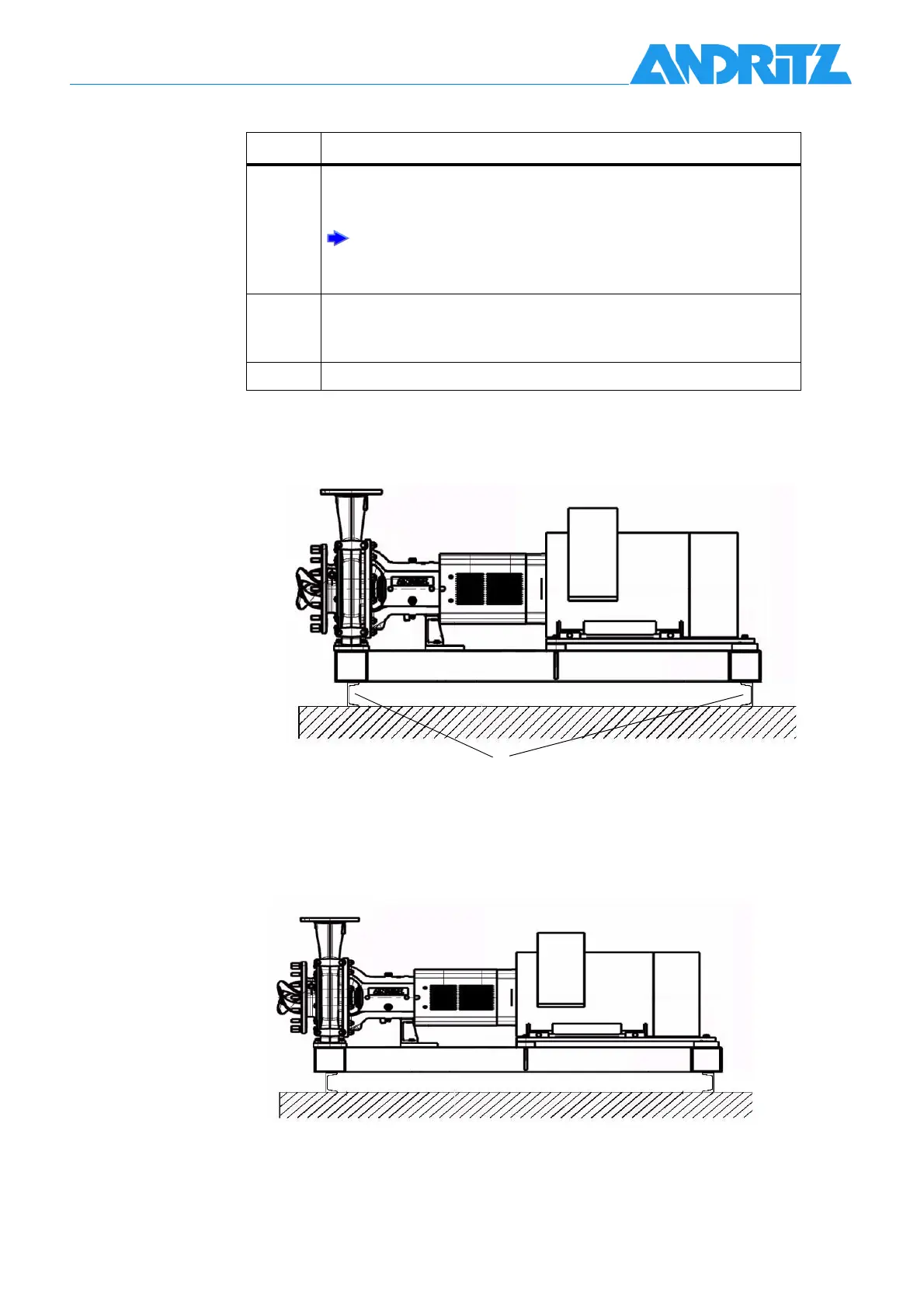

Abb. 4-6 Supporting rails
Abb. 4-7 Foundations
Step Activity
Tab. 4-1 Foundations
Supporting rails (for mounting only)
