Medium-consistency pump MC
STANDARD, C-01-000000
Rev. 0, 2010.02.09 ERECTION WORK and TRANSPORT Kap.4 , Seite 9 of 12
GRZ-2698569-v1-Erection.FM

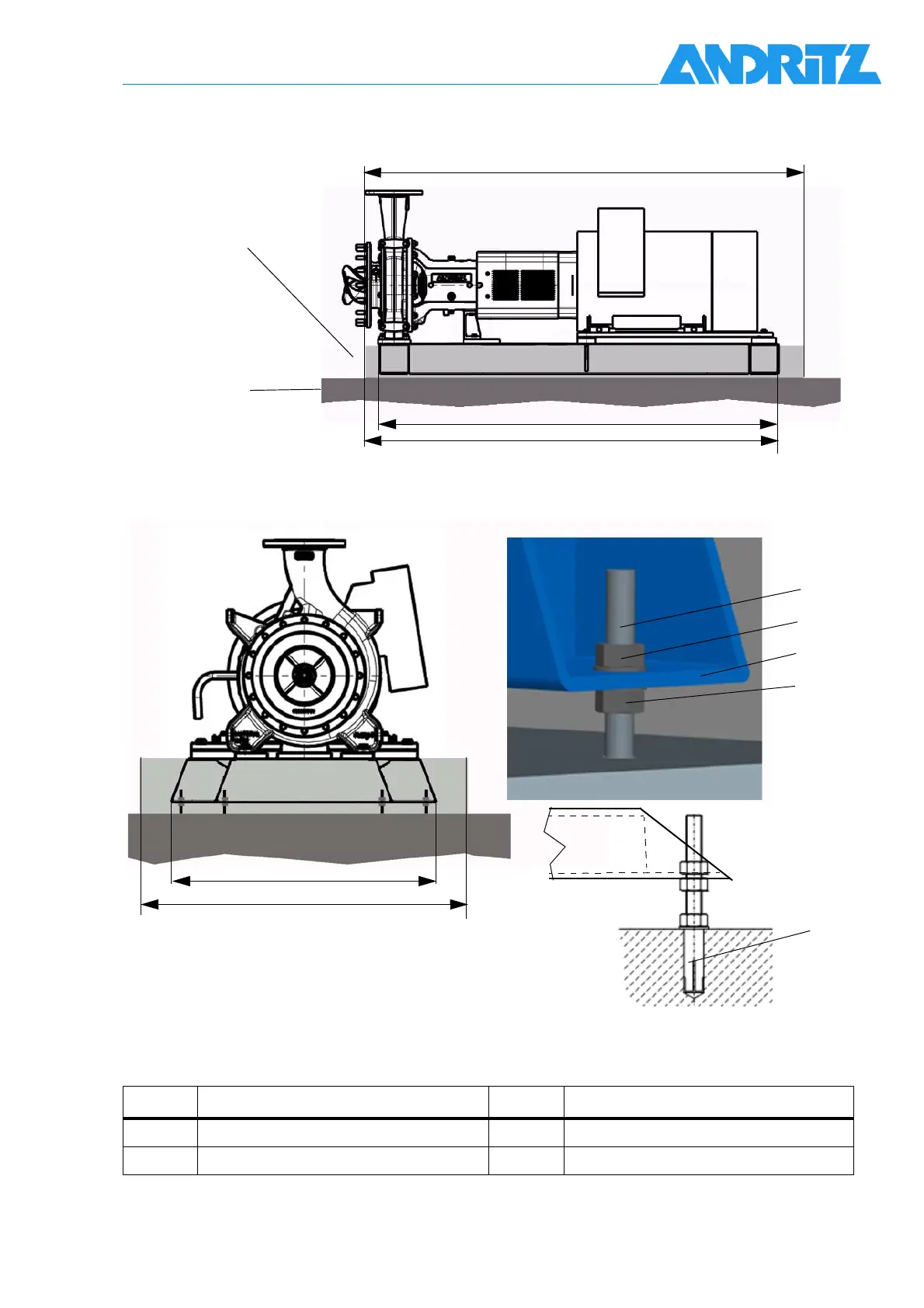

Abb. 4-8 Foundations
L2
L1
L3
Abb. 4-9 Drill and insert dowel pin
1
2
3
4
5
L2 = L1 + (L3 - L1) + 250 mm
B2 = B1 + 2 x 200 mm
B1
B2
(Final grouting)
Item Component Item Component
1 Threaded rod M20 4 Adjusting nut
2 Fastening nut for base frame 5 HILTI flush anchor HKD M20
Tab. 4-2
Final Grouting
Base Grouting
