39. On the MS272xC, press the Amplitude main menu key and then press the Adjust Range submenu key.
40. Record the channel power reading into the “Measured Power” column of Table A-91, “Option 44, WCDMA
Absolute Power Accuracy” on page A-42.
41. Use the following formula to calculate the Error value for the absolute power accuracy of the MS272xC
at +10 dBm:
Error = Measured Power –10
42. Record the calculated Error value into the “Error” column of Table A-91, and verify that it is within the
listed specification.
43. Turn Off the RF output of the MG3700A.
44. Set the MN63A attenuator to 18 dB.
45. Calculate the value of the MG3700A setting (MG3700A.28) for +28 dBm Test Level by using the following
formula:
MG3700A.28 = MG3700A.10 + ATT.18

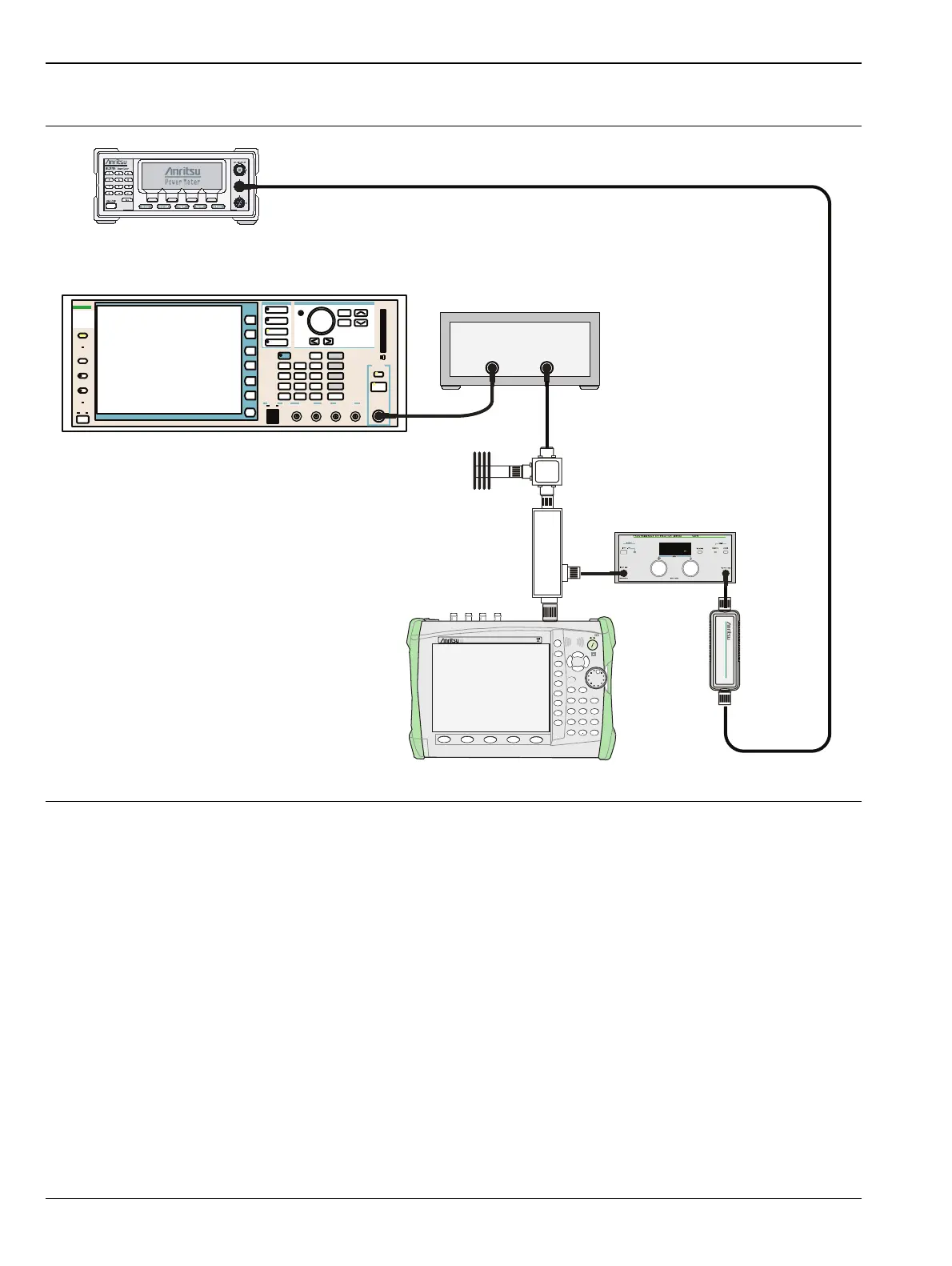

Figure 3-5. WCDMA/HSDPA Signal Analyzer, Test Setup for Spectrum Master
0
1
Preset
4
Measure
7
File
2
Calibrate
5
Trace
8
System
3
Sweep
6
Limit
9
Mode
Shift
Enter
Back
On
+/-
Off
ESC
Fault
MS2722C
Spectrum Analyzer
MS272xC Spectrum Master
SpectrumMaster
Function
Ethernet
Control Input
Modulation Input
Cursor/Edit
RF Output
3
MG3700
Vector Signal
Generator
250kHz-6GHz
3
MG3700A Vector Signal Generator
RF Power Amplifier
Sensor A
Circulator
MN63A
ML2438A Power Meter
High Power
Load
Coupler
