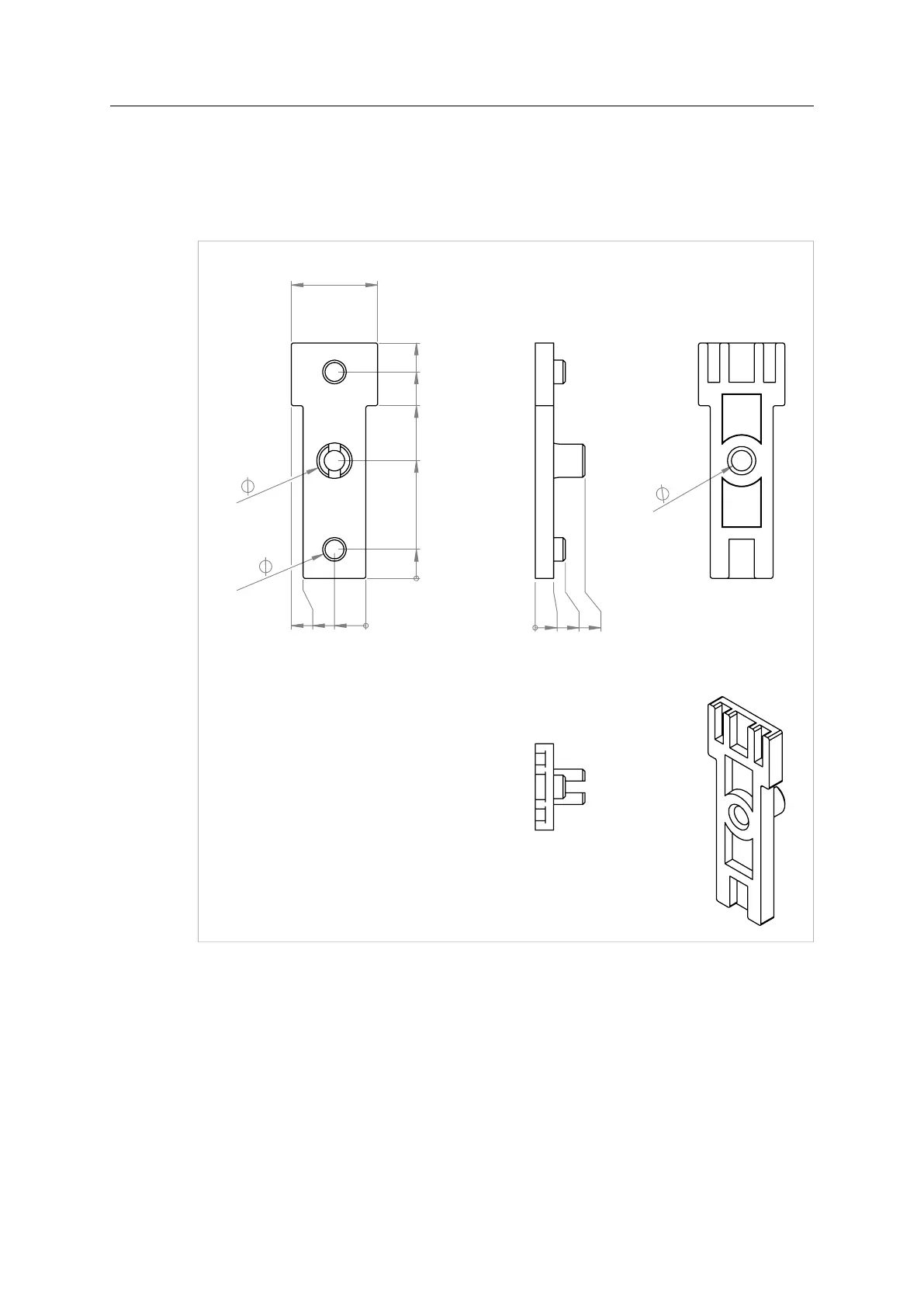

E.7.3 Mounting Kit Parts
Unless specified otherwise all dimensions are in millimeters, tolerance ± 0.1 mm.
Bottom Part
0
2,35 3,85 6,35
2,6
11
2x
3
4,5
0 4 8
9,5
0
3,7
15
26,3
30
22
Fig. 61
