Anybus CompactCom M40 User Manual

Appendix D: Mechanical Specification 87 (114)

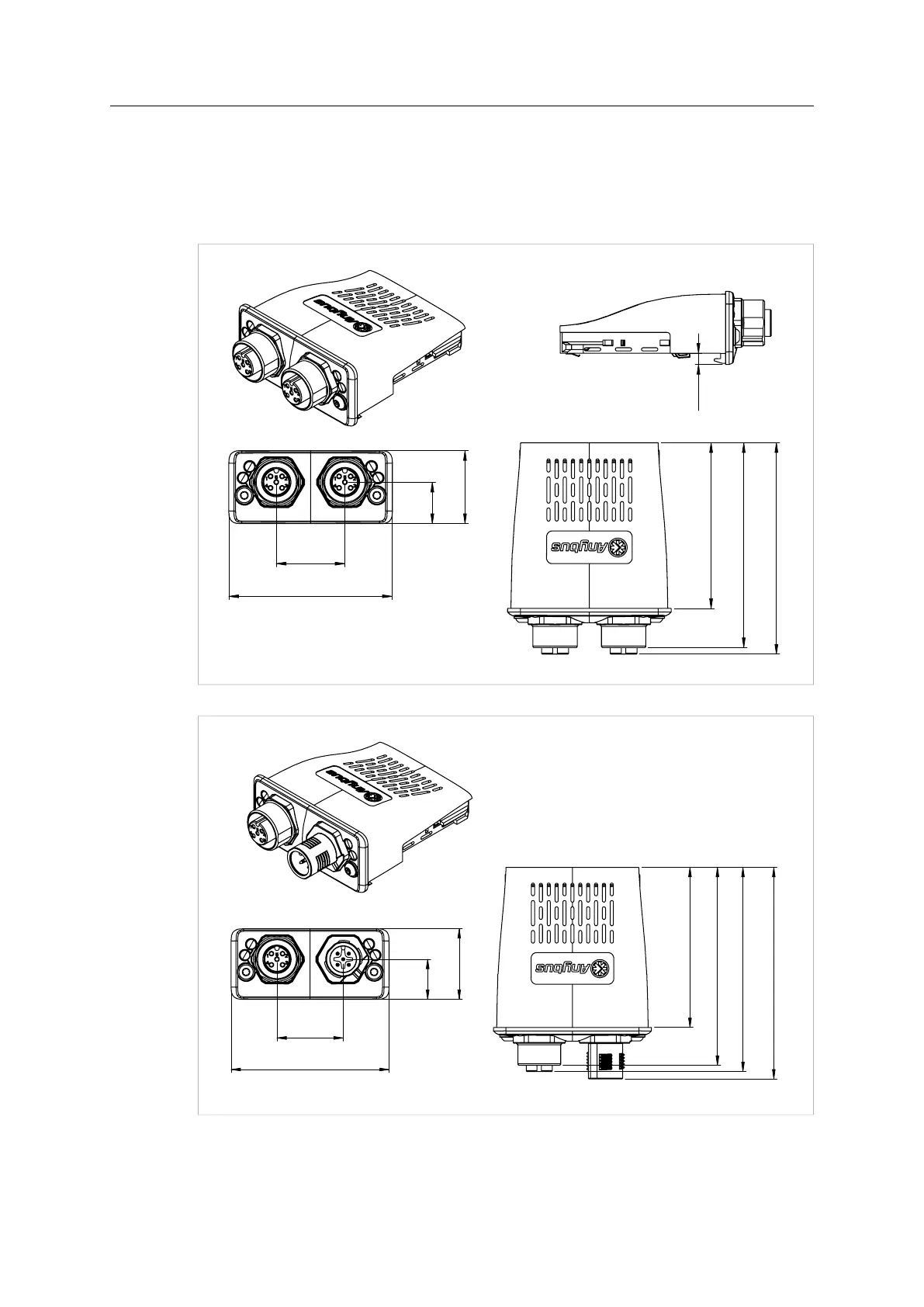

D.2 M12 Connector
The modules that are equipped with M12 connectors, either have two female connectors or one
female and one male connector.
The dimensions below are given in millimeters and include a tolerance of ±0.10 mm.
50,7
62,7
64,7
3,4
21
50,1
22,3
12,7
Fig. 37
50,1
22,3
21
12,7
50,7
62,7
64,7
67
Fig. 38
