Appendix B: Backward Compatibility 53 (114)
B.3 Hardware Compatibility
Anybus CompactCom is available in three hardware formats; Module, Chip, and Brick.
B.3.1 Module
The modules in the 30-series and the 40-series share physical characteristics, like dimensions,
outline, connectors, LED indicators, mounting parts etc. They are also available as modules
without housing.

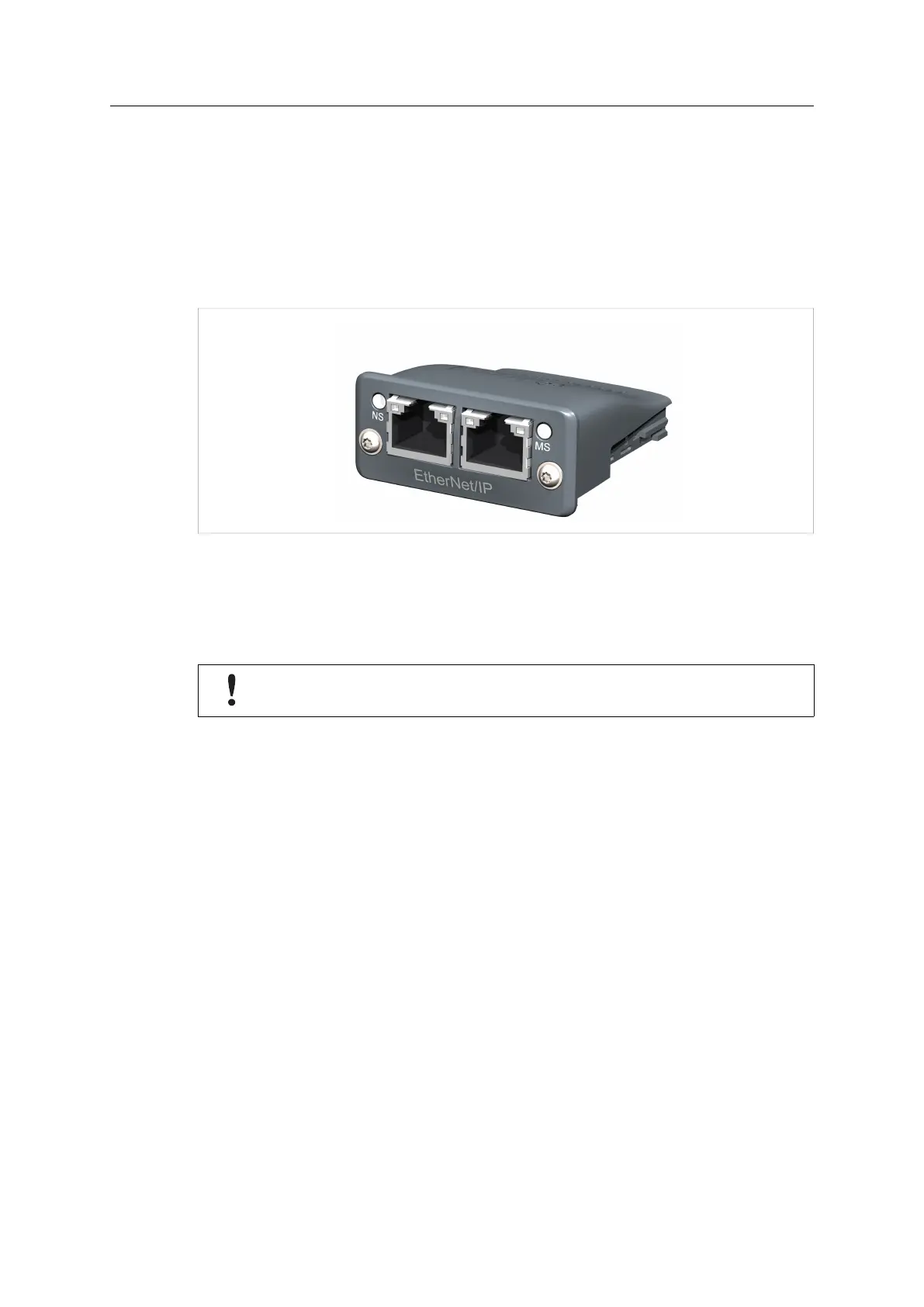

Fig. 29 Anybus CompactCom M30/M40
B.3.2 Chip
The chip (C30/C40) versions of the Anybus CompactCom differ completely when it comes to
physical dimensions.
There is no way to migrate a chip solution from the 30-series to the 40-series
without a major hardware update.
Anybus
®
CompactCom
™
M40 Hardware Design Guide HMSI-216-126 EN 2.6
