Anybus CompactCom M40 User Manual

Appendix D: Mechanical Specification 95 (114)
D.7 Fastening Mechanics
To support the fastening mechanism, the host application PCB thickness must be 1.60 (±10%)
mm.
Recommended screw tightening torque is 0.25 Nm.
When fastening the module into the end product, make sure that the Anybus
module is properly aligned into the CompactFlash socket prior to applying any force.
Rough handling and/or excessive force in combination with misalignment may
cause mechanical damage to the Anybus CompactCom module and/or the end
product.

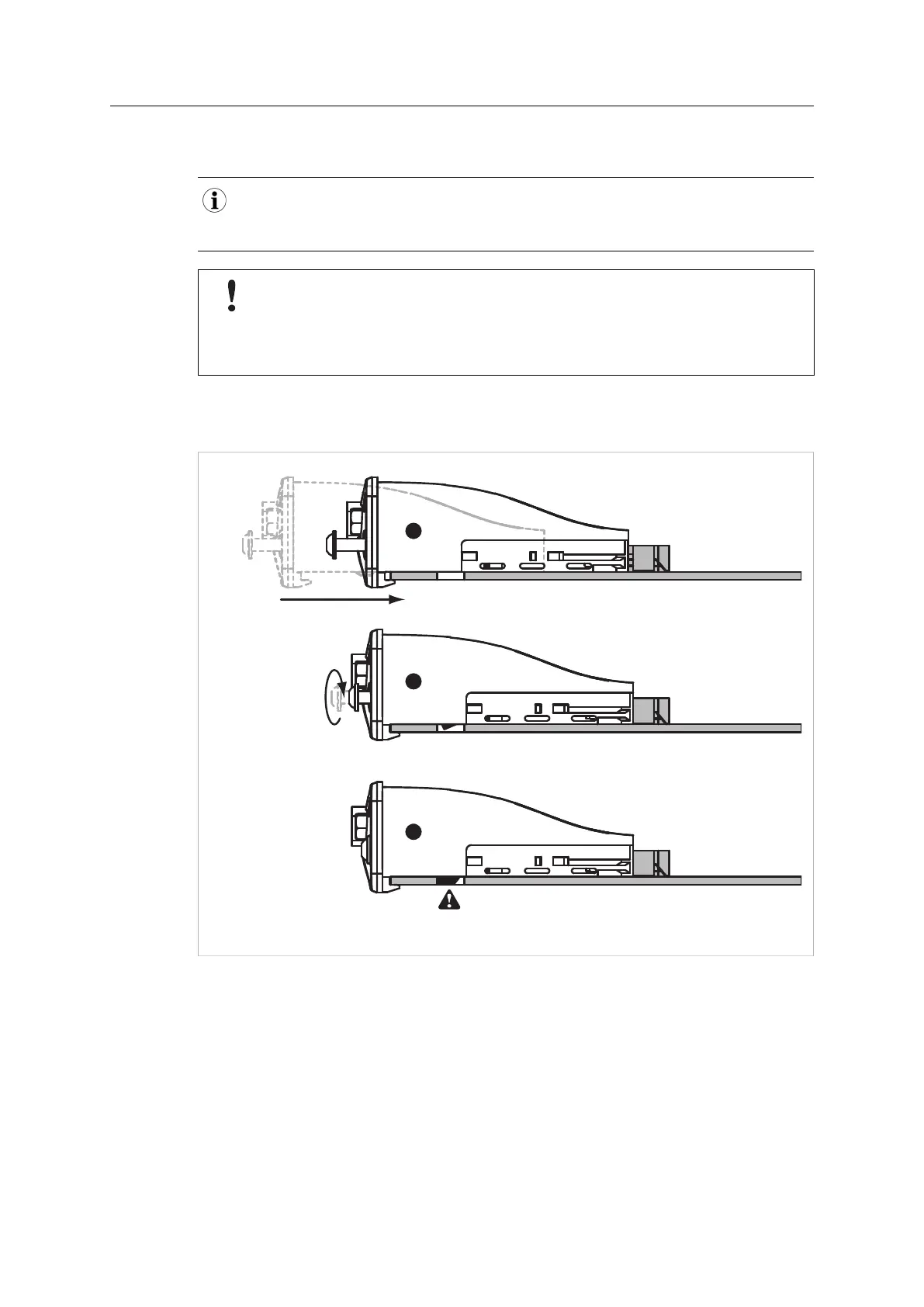

D.7.1 Fastening
1
2
3
TORX 8
0.25Nm
Fig. 49
Anybus
®
CompactCom
™
M40 Hardware Design Guide HMSI-216-126 EN 2.6
