Appendix E: Anybus CompactCom 40 without Housing 109 (114)

E.8 M12 Connectors

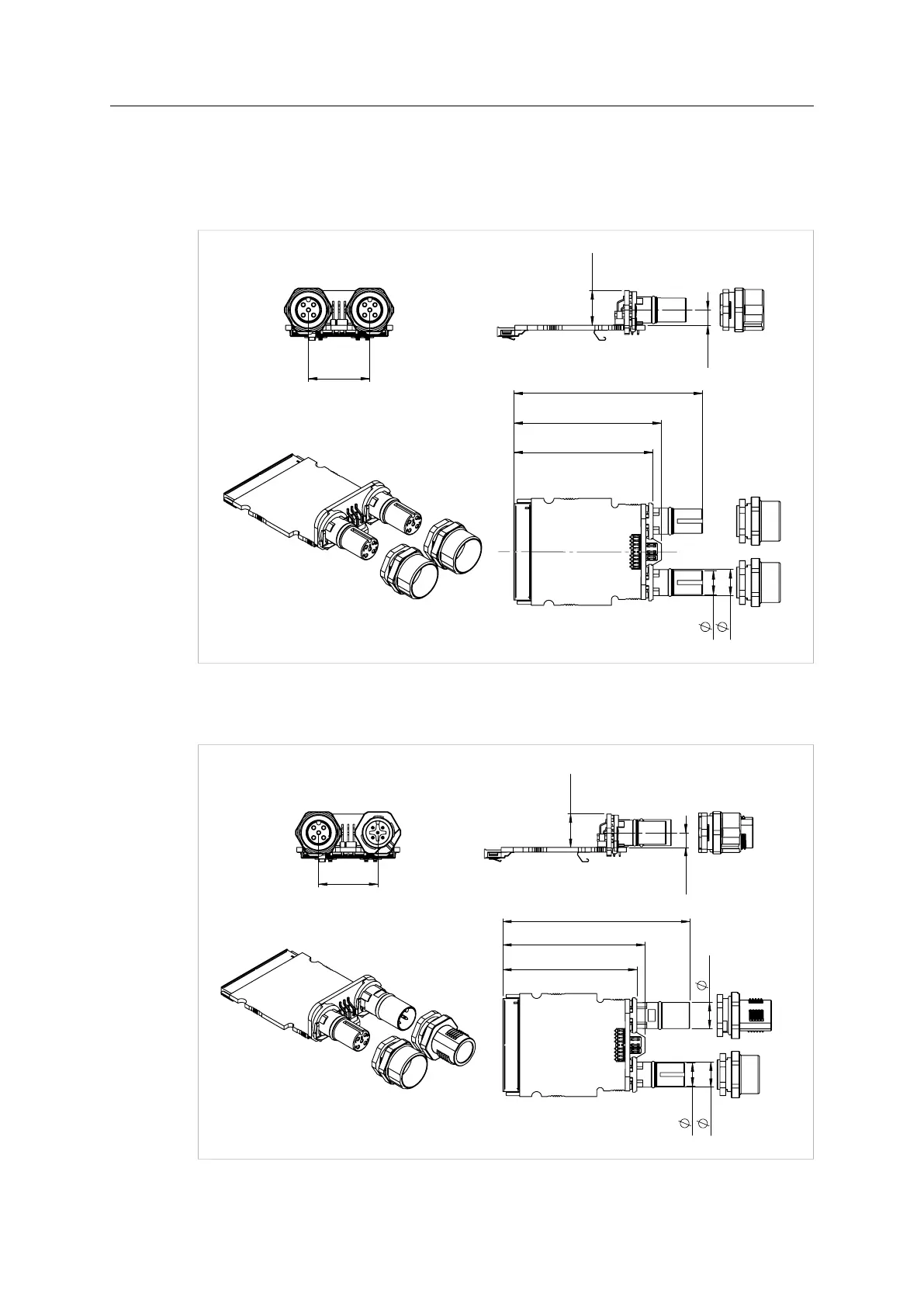

E.8.1 Dimensions

Female - Female

8,3

8,9

50,5

47,6

11,9

5,25

64,6

Fig. 67

Female - Male

11,9

5,25

9,3

66,4

50,5

47,6

8,3

8,9

Fig. 68

Anybus

CompactCom

™

M40 Hardware Design Guide HMSI-216-126 EN 2.6
