Appendix E: Anybus CompactCom 40 without Housing 108 (114)

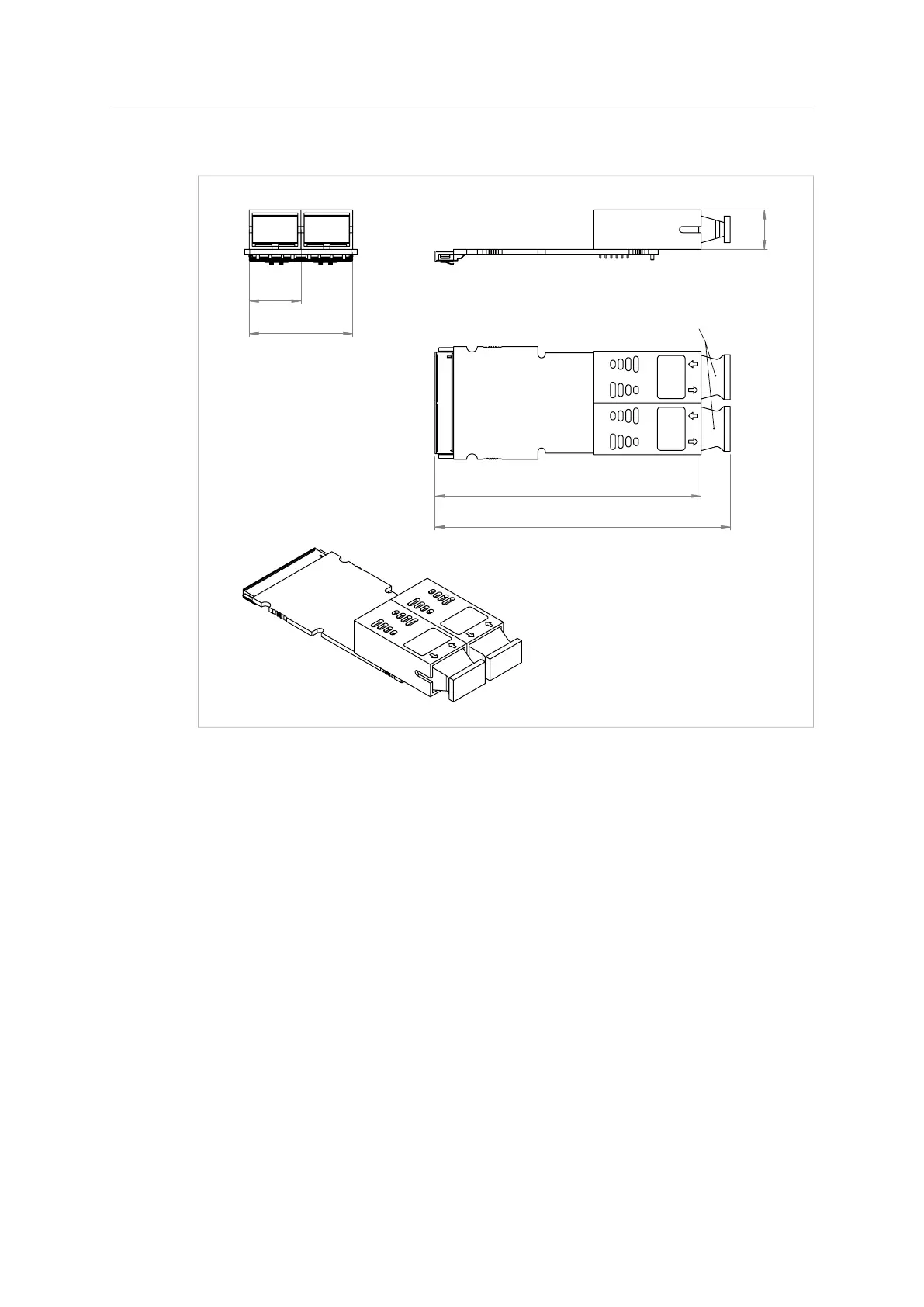

E.7.6 Fiber Optics, 2–port
16,8
33,6
12,9
86,4
95,9
Detachable plug
Fig. 66
Anybus
®
CompactCom
™
M40 Hardware Design Guide HMSI-216-126 EN 2.6
