Appendix E: Anybus CompactCom 40 without Housing 107 (114)

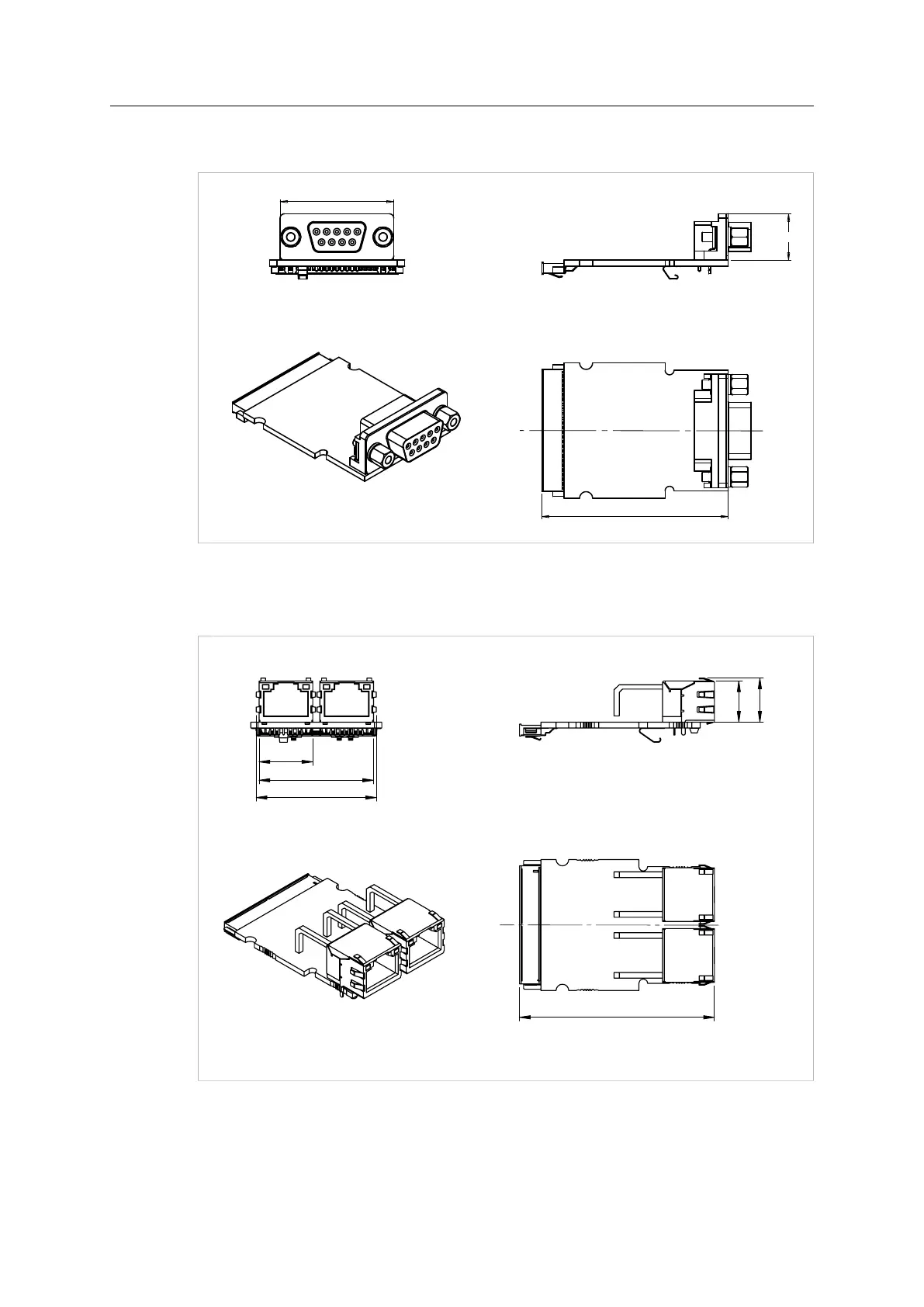

E.7.4 D-sub
12.6
30.8
50.4
Fig. 64
E.7.5 RJ45, 2–port
2x 15
32
33.6
11.5
12.3
54.5
Fig. 65
