Appendix D: Mechanical Specification 91 (114)
D.6 Host Connector

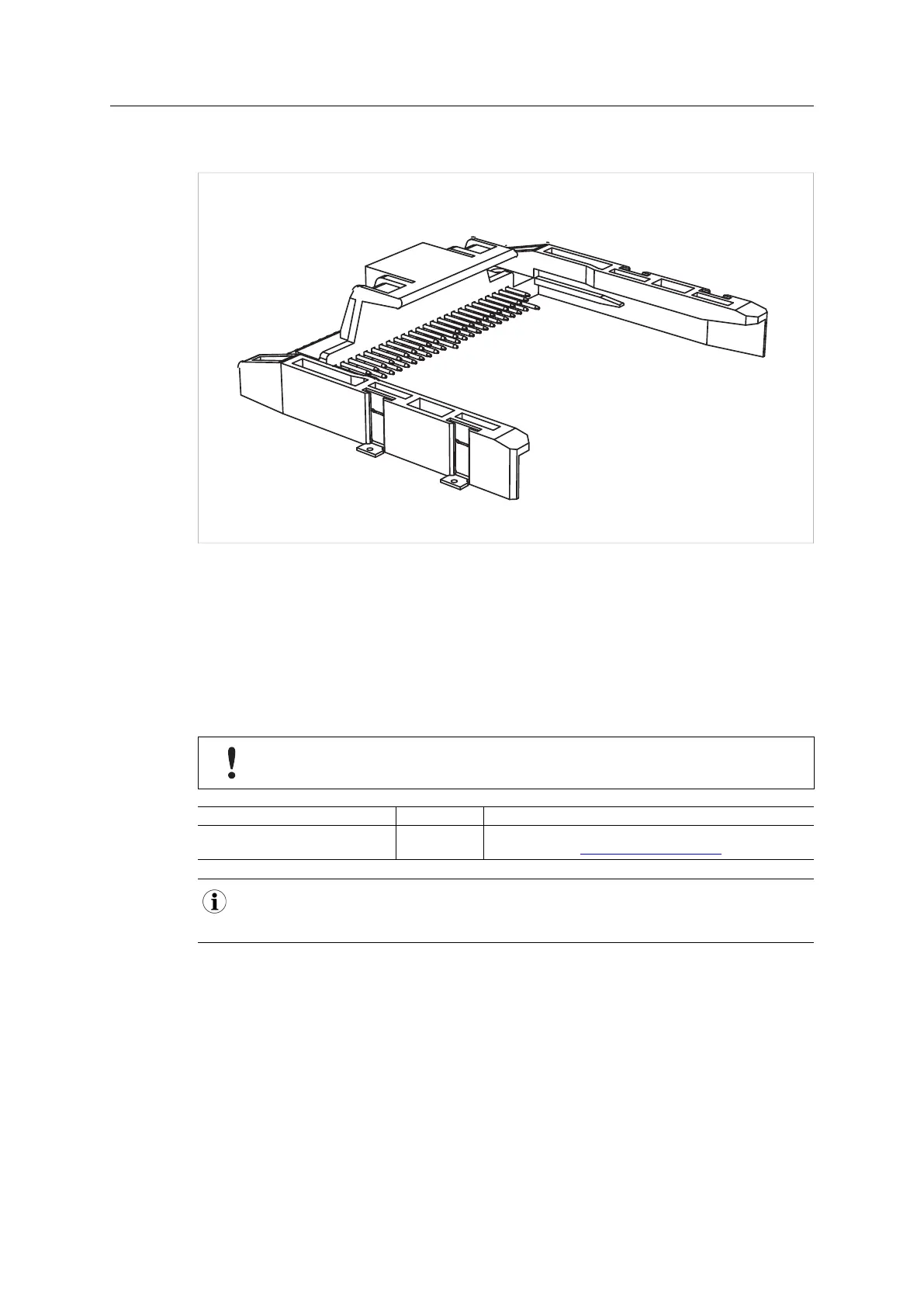

Fig. 44
The Anybus CompactCom is designed to use a compact flash connector as application
connector. HMS Industrial Networks AB offers a host connector, that is designed to simplify the
mounting and to meet the demands for a secure and stable connection of the Anybus
CompactCom modules. The dimensions of the connector and the information needed for the
PCB layout are presented in the figure on the next page.
Please note that it is recommended to mill oval holes in the PCB, to enable usage of other
connectors.
Always verify that the dimensions of another connector is compatible with this
design.
Manufacturer Part No. Web
HMS Industrial Networks SP1137 For more information visit the support pages for Anybus
CompactCom at www.anybus.com/support
To ensure that you receive the correct dimensions for the latest version of the contact, please
consult the support pages at www.anybus.com, where you will find all the latest available
information for the connector.
Anybus
®
CompactCom
™
M40 Hardware Design Guide HMSI-216-126 EN 2.6
