ARAG VISIO BLC - Wiring Harness Connection; Visio BLC; IBX100 Hydraulic Unit Connection; Ultrasonic Sensors Connection (Boom Leveling); Connection to Pre-Existing Hydraulic Control Panel

10
INSTALLATION
CONNECTOR CONNECTION
US1 ÷ US4
Ultrasonic sensor 1 ÷ 4
US5
NOT CONNECTED
AUX
NOT CONNECTED
REF. CABLE 5 - par. 6.1
Close the unused connectors with the relevant caps supplied in the package.
CONNECTOR MOVEMENT CONTROL
DD
Pilot valve
AA
Opening
Boom height:
UP
AC
Closing
Boom height:
DOWN
CA
Opening
Boom leveling:
COUNTER-
CLOCKWISE
CC
Closing
Boom leveling:
CLOCKWISE
REF. CABLE 11 - par. 6.1
Fix the connectors to the relevant valves according
to the indicated initials.
• Position seal (1) onto connector (2), then connect
the latter pressing it fully home (3):
during this operation, take special care not to
bend valve electric contacts.
• Insert screw inside connector, and screw it (4)
until it is tightened.
CONNECTOR CONTROL
DD
Pilot valve
AA
Boom height - UP
AC
Boom height - DOWN
CA
Boom leveling - COUNTER-CLOCKWISE
CC
Boom leveling - CLOCKWISE
REF. CABLE 9 - par. 6.1
This cable is used to receive the manual controls of the pre-existing control panel (e.g.
hydraulic control box).
IBX100 will control the suitable hydraulic valves based on the received manual controls or
based on the automatic control system.
When the BLC control operates in AUTOMATIC mode, the pre-existing hydraulic unit will
always have the priority on the IBX100 hydraulic control.
External control for headland detection
CLOSED CONTACT: HEIGHT
HH (par. 15.3)
OPEN CONTACT: HEIGHT
HS
REF. CABLE 4
par. 6.1
REF. CABLE 3 par. 6.1
CAN TERMINATION
IBX100
VISIO

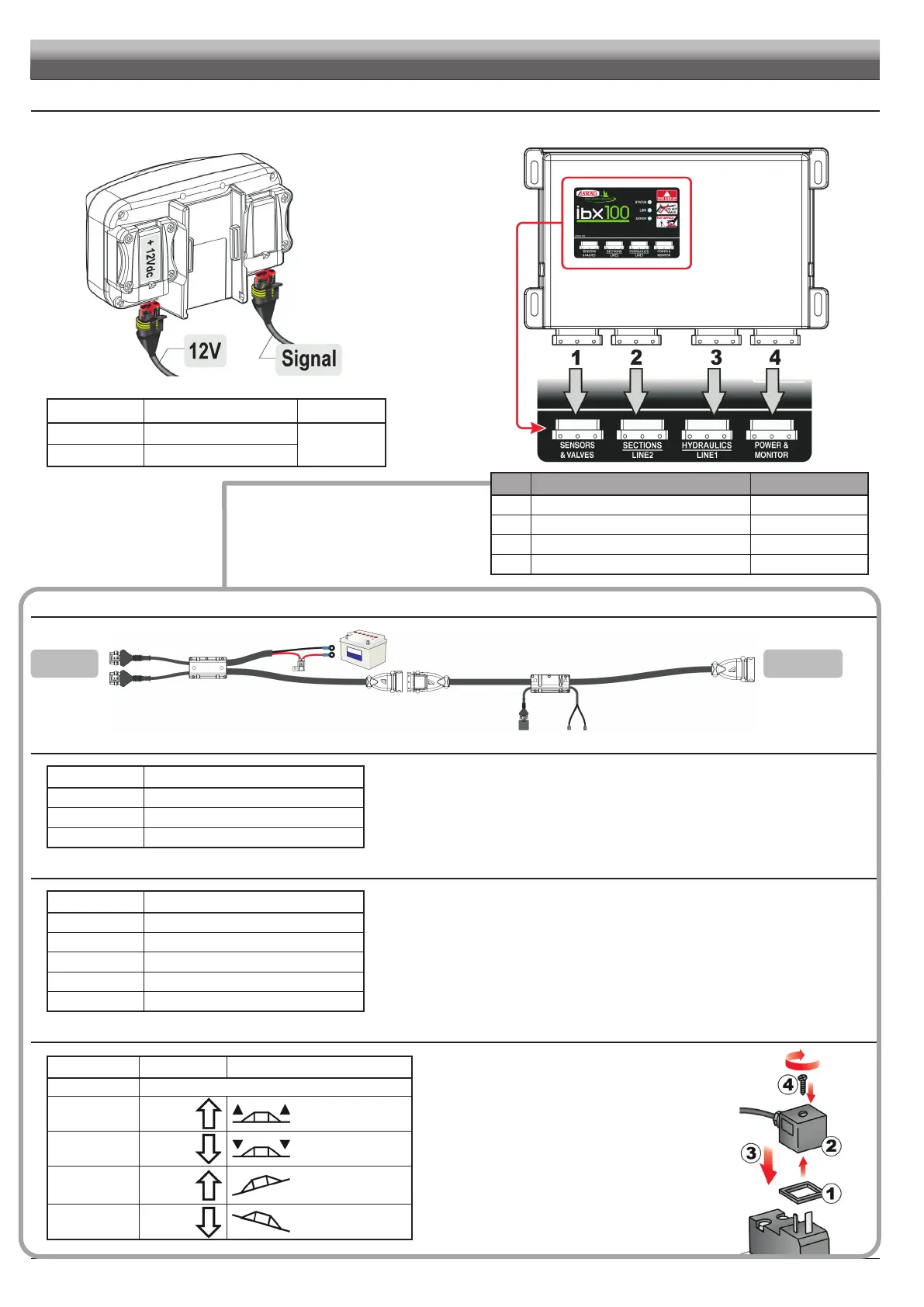

8.3 Wiring harness connection
IBX100HYDRAULICUNIT
Fig. 17
CONNECTOR CONNECTION REF. CABLE
12 V
Power supply
3 - par.
6.1
SIGNAL
IBX100 hydraulic unit
VISIO BLC
Fig. 18
Connect harnesses as specified in the
table; each one of them shall be connected
to the corresponding socket on the remote
control unit.
NO. CONNECTION
REF. CABLE - par.
6.1
1
Ultrasonic sensors (boom leveling) 5
2
Pre-existing hydraulic control panel 9
3
Hydraulic unit 11
4
Visio BLC / Power supply 4
8.4 Visio BLC / IBX100 hydraulic unit connection
8.5 Ultrasonic sensors connection (boom leveling)
8.6 Connection to pre-existing hydraulic control panel
8.7 Hydraulic valve connection
