ARAG VISIO BLC - Package Content; Position on Farming Machine; System Typical Composition

4
INSTALLATION

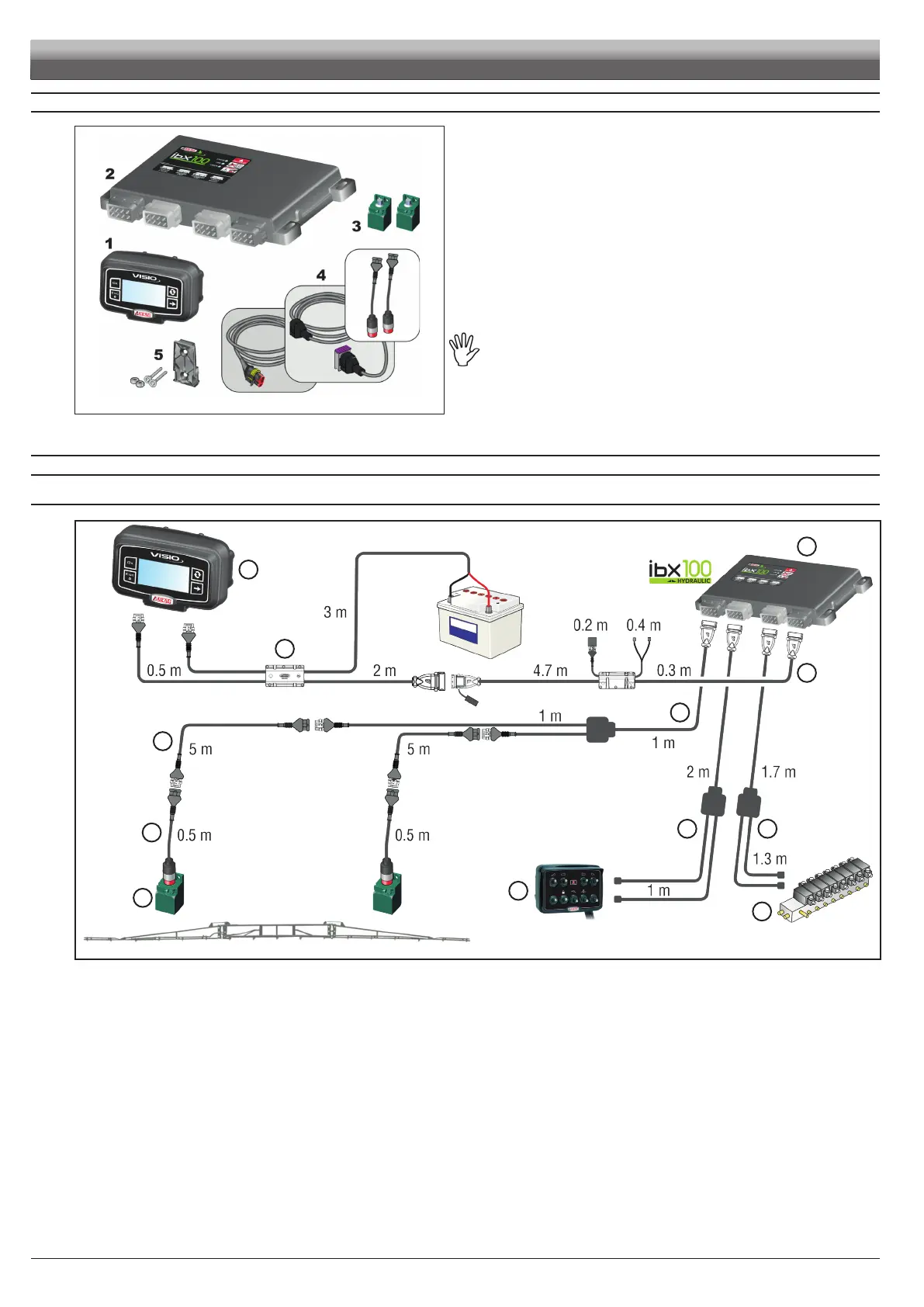

5 PACKAGE CONTENT
Fig. 1
1 Visio BLC
2 IBX100 hydraulic control unit
3 Ultrasonic sensors (no. 2)
4 Connection cables (ref. par.6.1 System typical composition):
• Extension for sensors - 5 m (no. 2)
• Adapter cables for ultrasonic sensors (no. 2)
• Connection cable for sensors
• Cable for the connection of IBX100 hydraulic unit / power supply / BLC Visio
• Cable for the connection of BLC Visio / power supply / IBX100 hydraulic unit
• Connection cable to pre-existing hydraulic control panel
• Hydraulic valve connection cable for boom leveling
5 Fixing kit
The kit supplied enables the BLC control function on an already existing
system: therefore, the mechanical and hydraulic components are supplied by
the machine manufacturer.
The hydraulic valves for boom leveling must be purchased separately.
6 POSITION ON FARMING MACHINE
6.1 System typical composition
1
3
6
5
4
9 11
12
2
10
7
8
Fig. 2
Legend:
1 Visio BLC
2 IBX100 hydraulic control unit
3 Cable for the connection of BLC Visio / power supply / IBX100 hydraulic unit
4 Cable for the connection of IBX100 hydraulic unit / power supply / BLC Visio
5 Connection cable for sensors (boom leveling)
6 Extension for sensors - 5 m (no. 2)
7 Adapter cables for ultrasonic sensors (no. 2)
8 Ultrasonic sensors (no. 2)
9 Connection cable to pre-existing hydraulic control panel
10 Preexisting hydraulic control panel (not supplied)
11 Hydraulic valve connection cable for boom leveling
12 Hydraulic assembly (not supplied)
