Areca ARC-1280ML - Delete Pass-Through Disk

WEB BROWSER-BASED CONFIGURATION
132

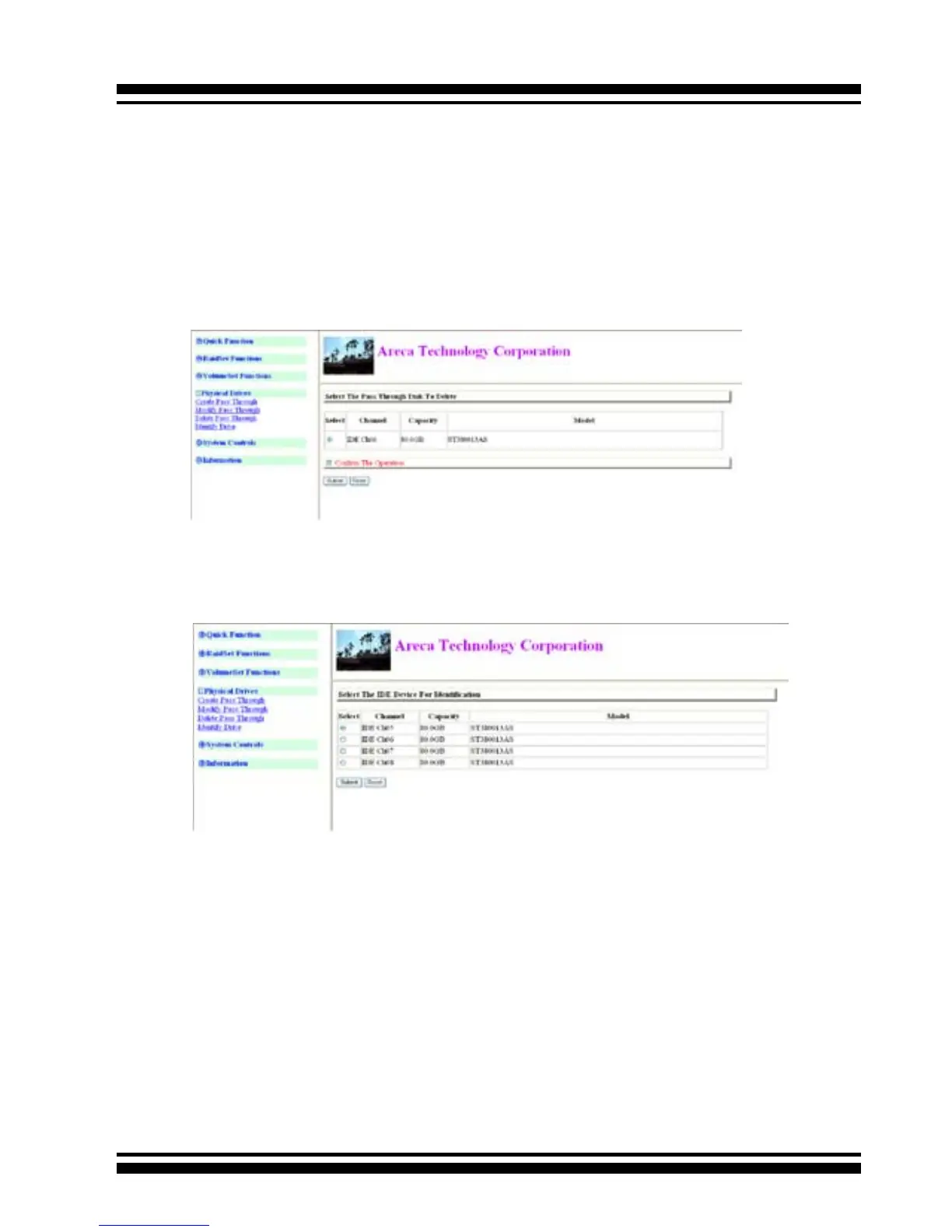

6.7.3 Delete Pass-Through Disk
To delete a pass-through drive from the pass-through drive pool,
move the mouse cursor bar to the main menus and click the “De-
lete Pass Through” link.
After you complete the selection, mark the checkbox for “Con-
rm The Operation” and click the Submit button to complete the
delete action.
6.7.4 Identify Selected Drive
To prevent removal of the wrong drive, the selected disk LED will
light so as to physically locate the intended disk when “Identify
Selected Drive” is selected.
To identify the selected drive from the drives pool, click “Identify
Selected Drive”. The “Select The IDE Device For Identication”
screen appears mark the checkbox for the IDE device from the
drive pool and select the Flash method. After completing the se-
lection, click on the Submit button to identify selected drive.
