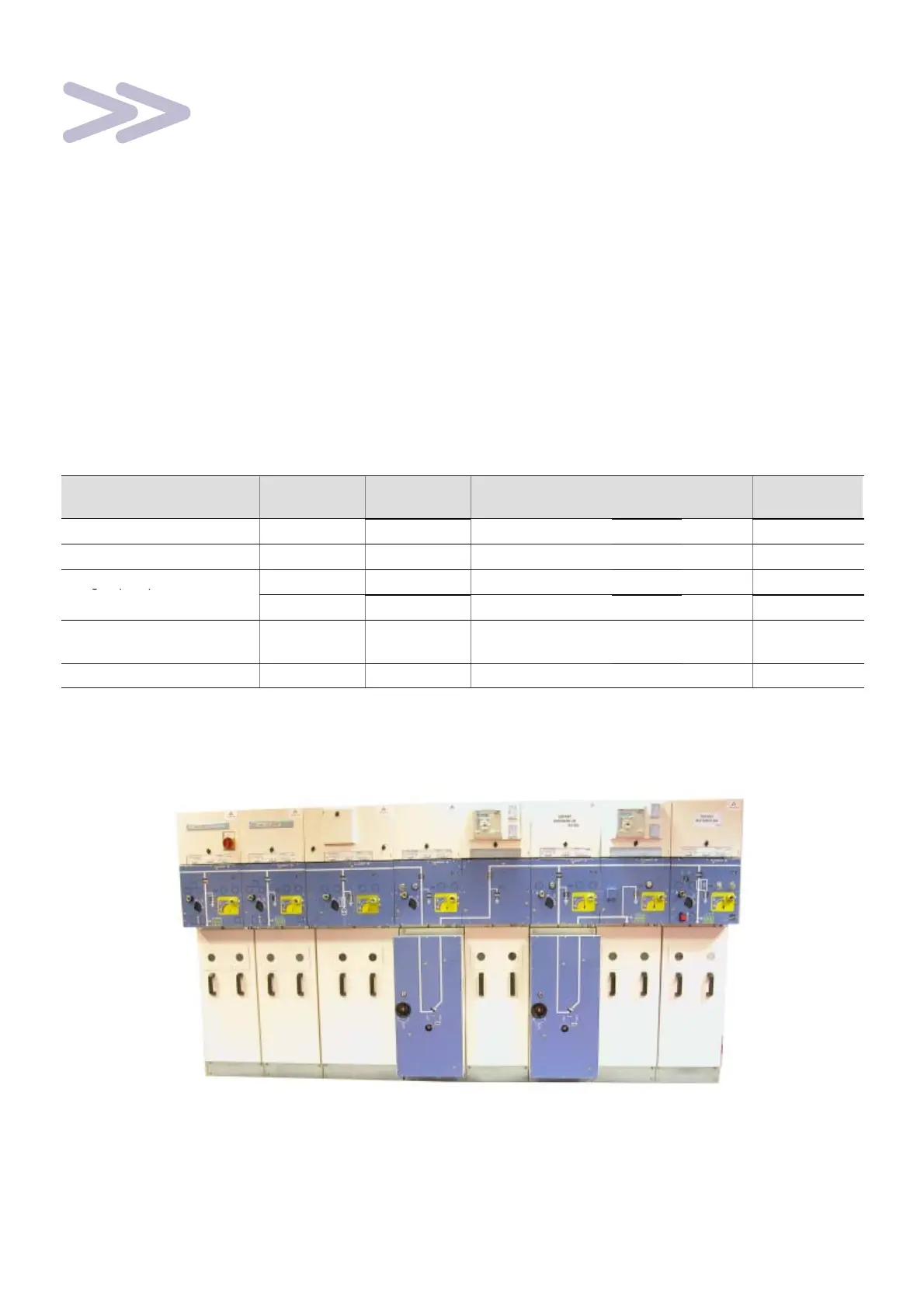

3 Presentation
3.1 Description
FLUOKIT M24+ Functional Units
are designed for indoor use.
The range meets the definition of
switchgear of the type "under com-
partmentalised metal casing", in
compliance with the design and
construction rules mentioned in the
Standards IEC 62271−200 and
IEC60466.
This product range also meets the
requirements of NFC 13−100 and
the Enterprise Specification
HN 64−S−41 from EDF.
Each Functional Unit is divided into
4 separate compartments, separa-
ted by metal partitions:
− Telecontrol compartment,
− Busbars,
− Breaker switchgear or
isolation switchgear, with an
operating lever,
− Cables.
3.2 Dimensions and approximate weight of the Functional Units
Functional Units PFA TM PGB − PGC
PBB or PGC
1250A
Width (mm) 375 500 375 500 750 875 1125 1250 1000
Overall Depth (mm) 1072 1072 1072 1072 1110* 1110* 1110* 1110* 1110
Height (mm) standard
1610 1610 1610 1610 1610 1610 1610 1610 1610
g( )
with deflector or LV box on the roof
1950 1950 1950 1950 1950 1950 1950 1950 1950
Space for manœuvres in
front (mm)
800 800 800 800 1000 1000 1000 1000 1000
Approximate weight (kg) 115 125 195 210 410 460 510 610 600
* Disconnectable Functional Unit in 1120 mm
