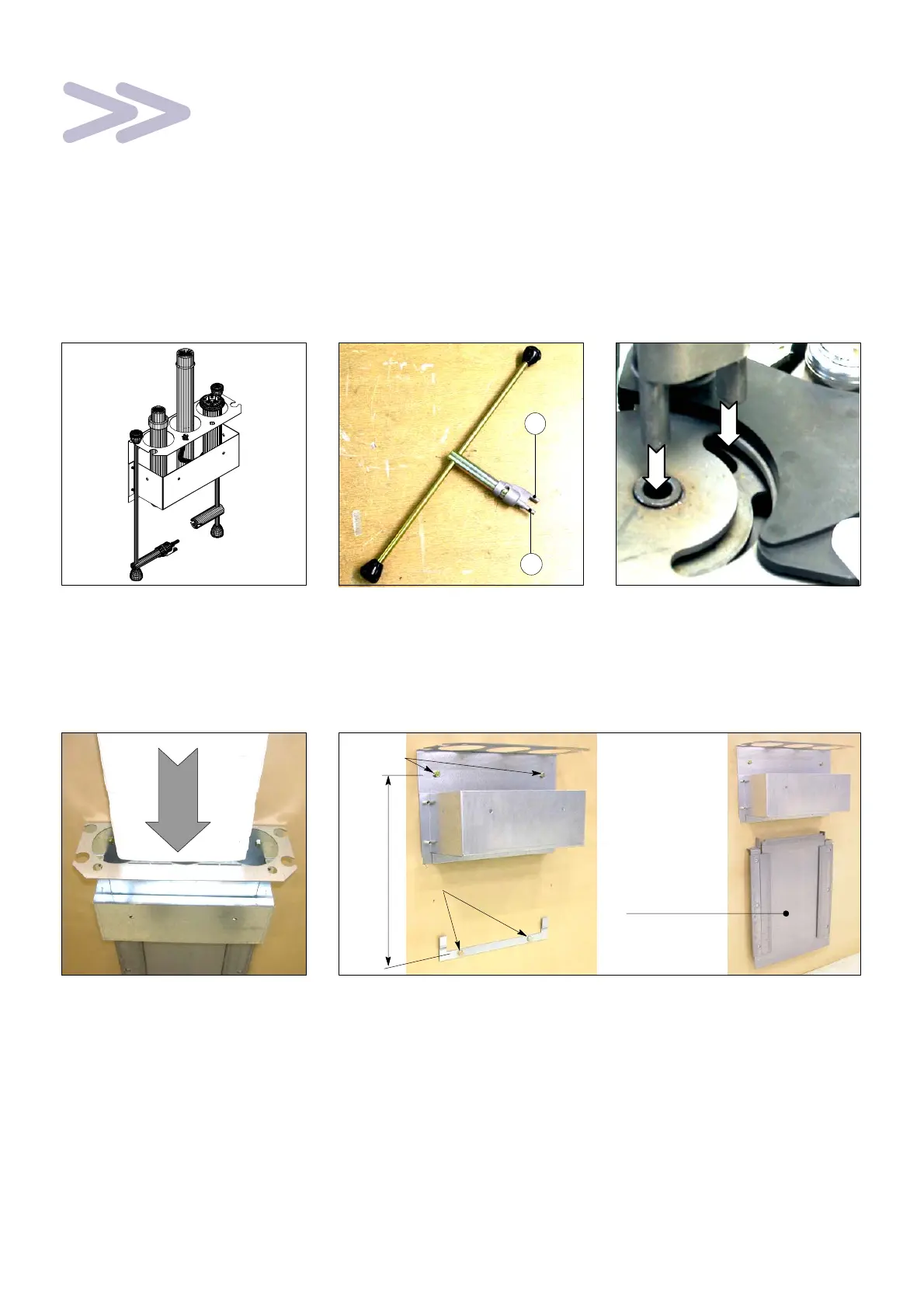

11 Operating accessories and instructions
11.1 Reminder
The Functional Unit is delivered
with the:
− load break switch "Open,"
− earthing switch "Closed".
The manoeuvres for manual opera-
tion are made without any special
effort.
If cubicle de−energized: the wea-
ring of gloves is not compulsory.
If cubicle is energised: respect and
apply the operating and safety ins-
tructions in force on the site.
F The accessories (fuses, levers)
are stored in the wall storage
rack (see § 11.2).
F A single operating lever, for the
load break switch and the
earthing switch.
2
1
F Place the lever in position:
1 − Lever pin in the main shaft
manoeuvring shaft,
2 − Secondary pin in the notch.
1
2
11.2 Wall storage rack (optional)
F If necessary, cut out the upper
part to house the box containing
the fuses.
F Under the wall storage rack, fix the
(optional) support for the rolling floor
supplied in the case of a withdrawable
PG Functional Unit.
Fixings
Fixings
Withdrawable
PG rolling floor
375 mm min.
11.3 Operation of a Functional Unit equipped with a C410−C410S−C410M control
See the instructions in the manual
(See § 2.5).
11.4 Operation of a Functional Unit equipped with a C430−C430M control
See the instructions in the manual
(See § 2.5).
