Areva FLUOKIT M24+ - Connection of the HV cables; Preparation of the HV cable connections

21

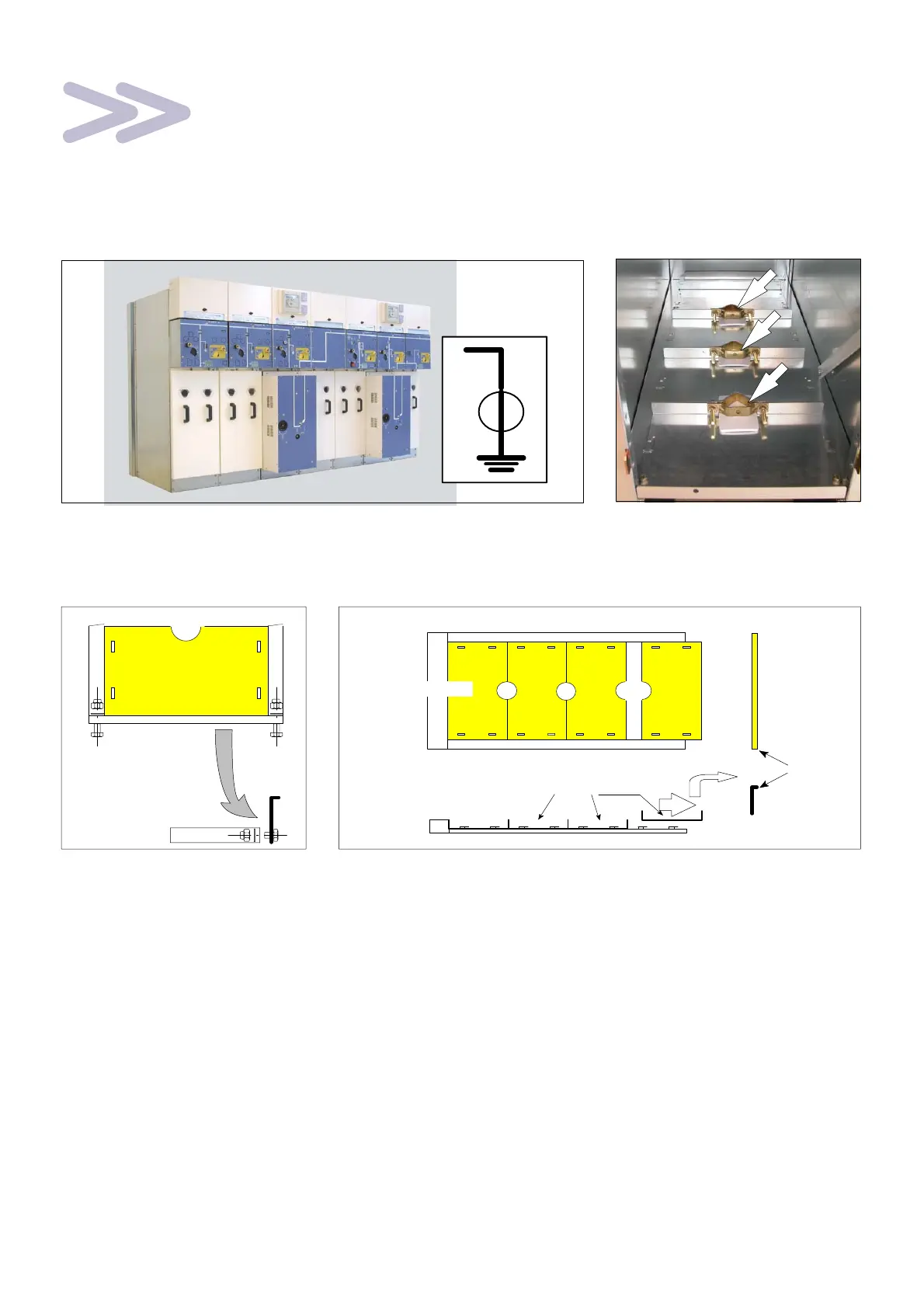

7 Connection of the HV cables
7.1 Preparation of the HV cable connections
F State of the Functional Units after installation: all of the earthing switches
are closed.
F Remove and mark the cable access panels in accordance with the
Functional Units.
F Remove the upper cable
tightening straps (2 H M8x50
screws).
F Remove the lower front cross
brace (2 H M8x20 bolts and
Nylstop nuts).
1
F 1 − Pull the first element towards the front.
F 2 − Lift up and extract this element.
F Proceed in the same way for the following two elements.
Side face view
Floor elements
Front panel
Cross−
brace
before
removal
Top view
2
