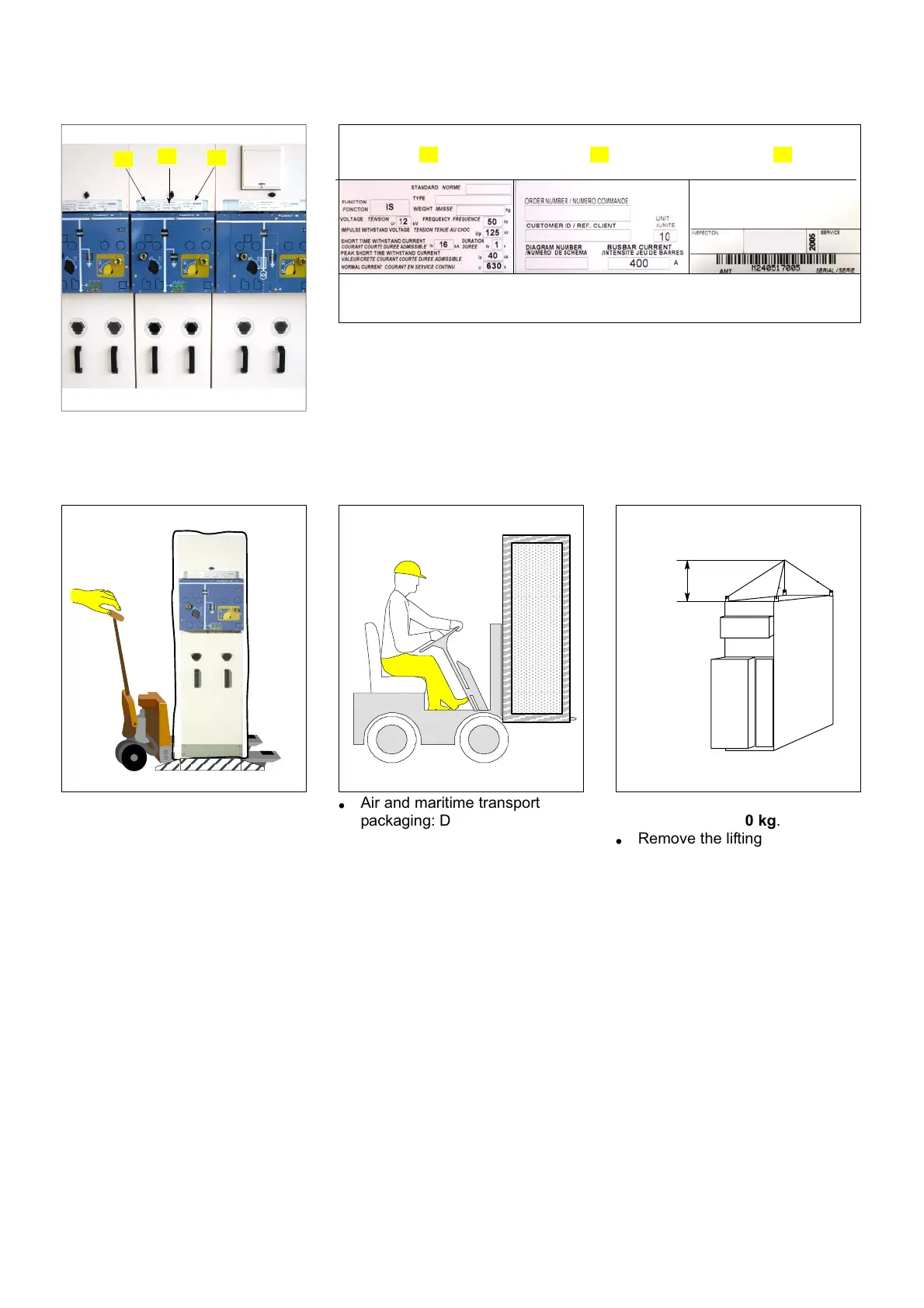

4.5 Location of the technical data plates
1
2
3
1 2 3
F 1 − Technical characteristics.
F 2 − Allocation to AMT customer
(references, order number, etc.).
F 3 − Identification plate.
4.6 Handling
F Road and rail packaging (500
kg max.): with the aid of a
hand−operated lift truck.
F It is imperative that the forks of
the truck are fully engaged
across the entire width of the
Functional Unit.
F Move the Functional Unit, by
always taking account of its
centre of gravity (marked on the
packaging).
ÉÉÉÉÉÉ
ÉÉÉÉÉÉ
ÎÎÎ
ÎÎÎ
ÎÎÎ
ÎÎÎ
ÎÎÎ
ÎÎÎ
ÎÎÎ
ÎÎÎ
ÎÎÎ
F Air and maritime transport
packaging: Depending on the
weight indicated on the crate.
F It is imperative that the forks of
the truck are fully engaged
throughout the entire width of
the crate.
F Move the Functional Unit, by
always taking account of its
centre of gravity (marked on the
packaging).
ÌÌÌ
ÌÌÌ
ÌÌÌ
ÌÌÌ
ÌÌÌ
ÌÌÌ
ÌÌÌ
ÌÌÌ
F Pass 2 slings, each one
supporting 1,000 kg.
F Remove the lifting parts after
handling (4 screws, 13 mm
spanner).
1m min.
