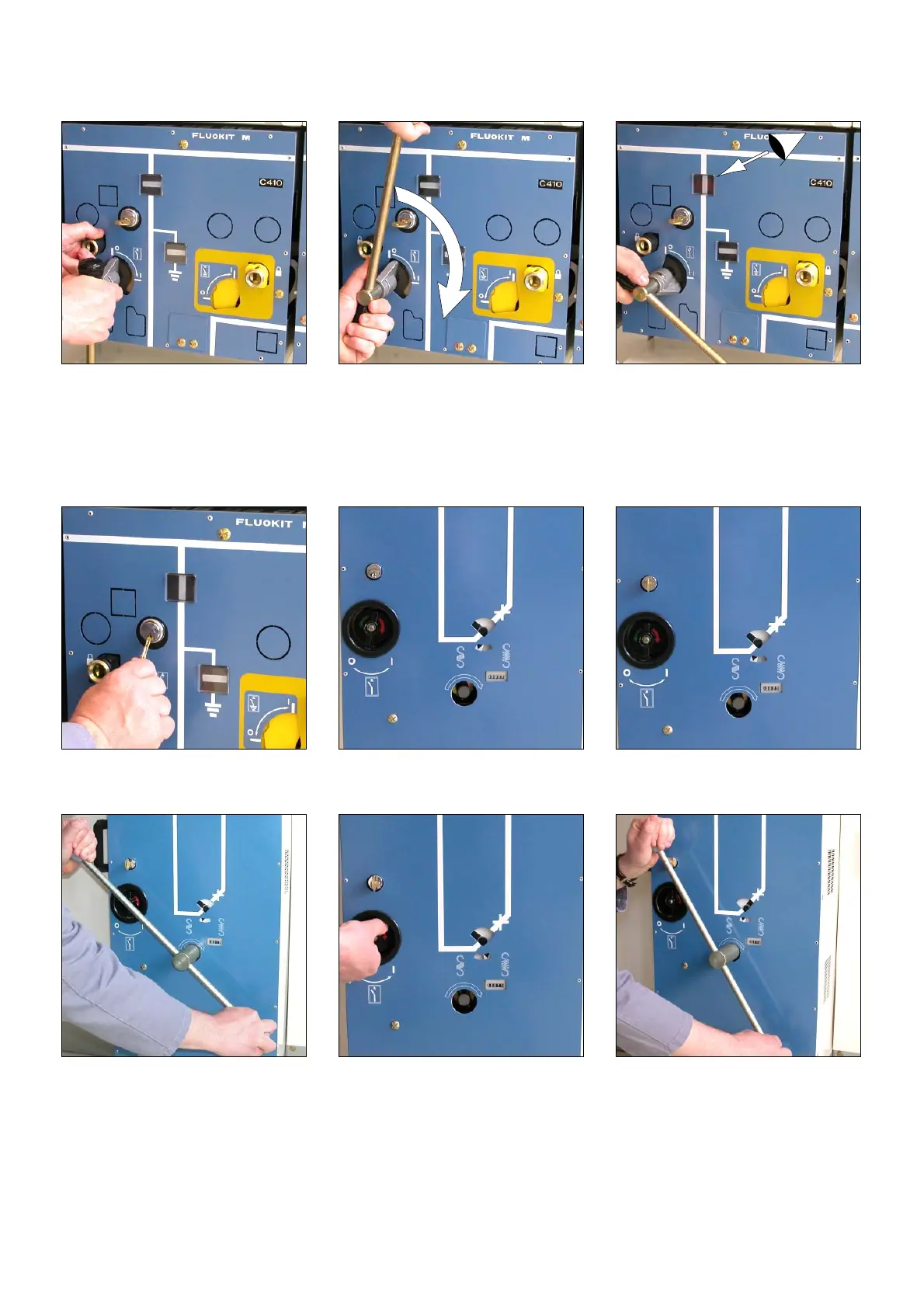

14.3 Closing the load break switch
F Using the left hand, turn the
padlockable button and
maintain it there.
F Insert the lever.
F Make the rod slide upwards
then grip the lever by both of its
extremities.
F Lower the lever towards the right.
F The switch is now closed.
F Remove the lever.
14.4 Closing the circuit breaker
F Lock the load break switch and
remove the key.
F The circuit breaker is locked in
the "tripped" position.
F Insert the key and turn it: The
circuit breaker is now unlocked.
F Using the crank handle, reset
the BLR mechanical control
mechanism.
F Turn the handling button to
close the circuit breaker.
F Circuit breaker closed, reset the
BLR so as to have a reserve of
energy available.
14.5 De−energizing a PGC Functional Unit
Proceed with operations in the
reverse order to those described in
§ 14.1 to 14.4.
