Areva FLUOKIT M24+ - Connection of the Metering low voltage wiring to the PGB Functional Unit; Connection of the Metering low voltage wiring to the TM Functional Unit

28

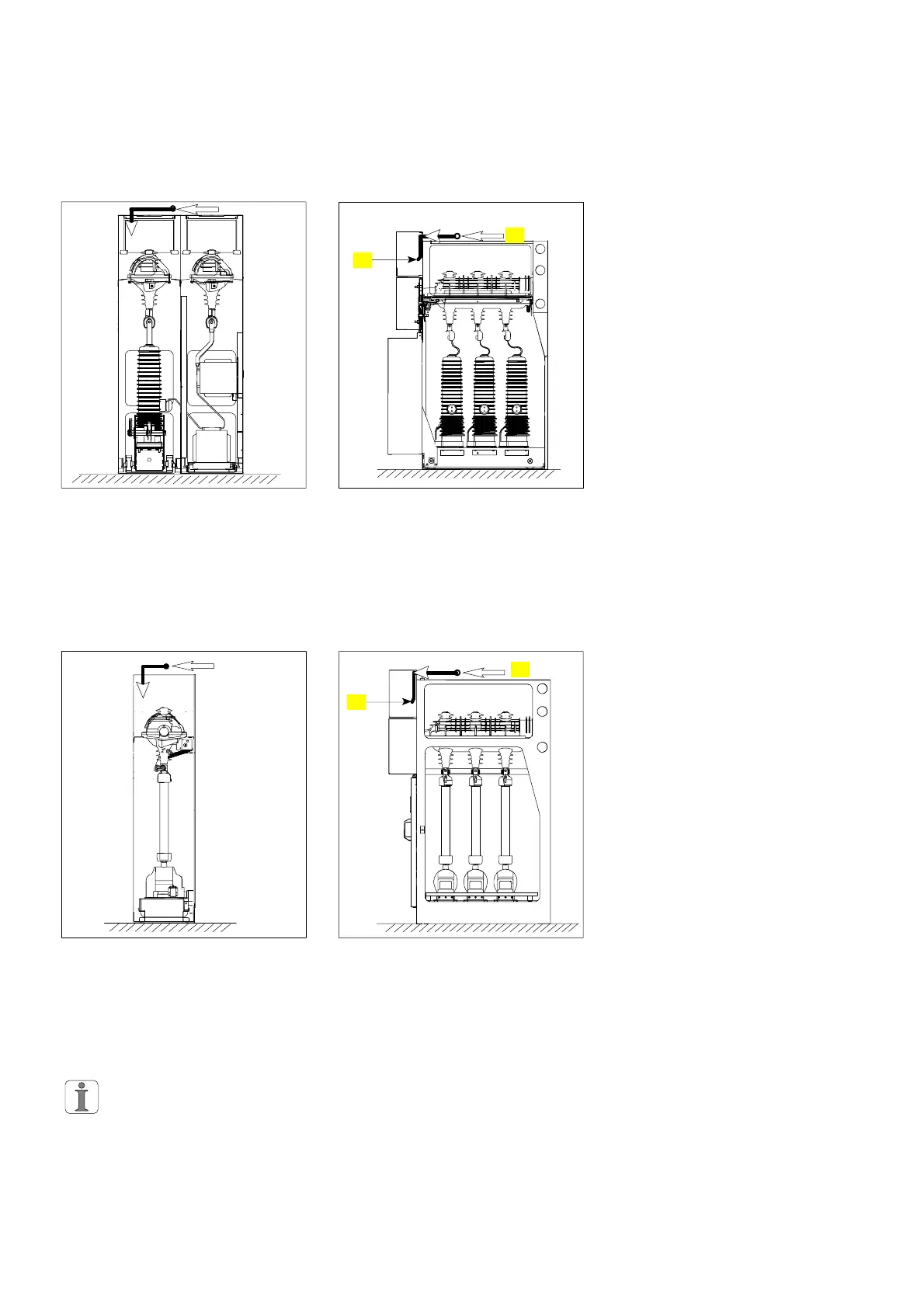

8.3 Connection of the "Metering" low voltage wiring to the PGB Functional Unit
Material to be provided:
Lugs for 6 mm diameter fixings,
− 1.5 mm
2
cross section (TM),
− 2.5 or 6 mm
2
cross section
(PGB).
F Front view: Connection is made
from the top, via the rear of the
LV box.
F Side face view: connection from
the top.
1 − Location of the terminal block.
2 − Wiring to be carried out on
site. Provide for an additional
length of 4 m of wire.
1
2
8.4 Connection of the "Metering" low voltage wiring to the TM Functional Unit
F Front view: Connection is made
from the top, via the rear of the
LV box.
F Side face view: connection from
the top.
1. Location of the terminal
block.
2. Wiring to be carried out on
site. Provide for an additional
length of 4 m of wire.
2
1
An extremity blanking piece
for the terminal block cover is
delivered mounted on each IS
Functional Unit.
It can be dismantled then reassem-
bled on to another Functional Unit,
depending on the layout of the
switchboard.
