7.2 Connection instructions
− Use short cable terminations of the EUI−C type (with shells). They are compulsory
for Functional Units PF − PFA − PGC
− The building of the extremity (other than AREVA supply) must be carried out in
accordance with the manufacturer’s instructions.
− The earthing braid for each cable must always exit above the bottom plate and the
clamping collar.
− Leave 40mm of free clearance on the lug barrel for fitting the grounding clamp.
− Ensure the correct orientation of the contact plate before crimping it.
− There must be no tension on the cable.
Never stick any phase markers to the cable end reassemblies
−−> decrease in the dielectric strength and degradation over time.
− Never clamp the cable by its cable end.
− Never leave a washer in incompatible material between the lug and the connecting
plate.

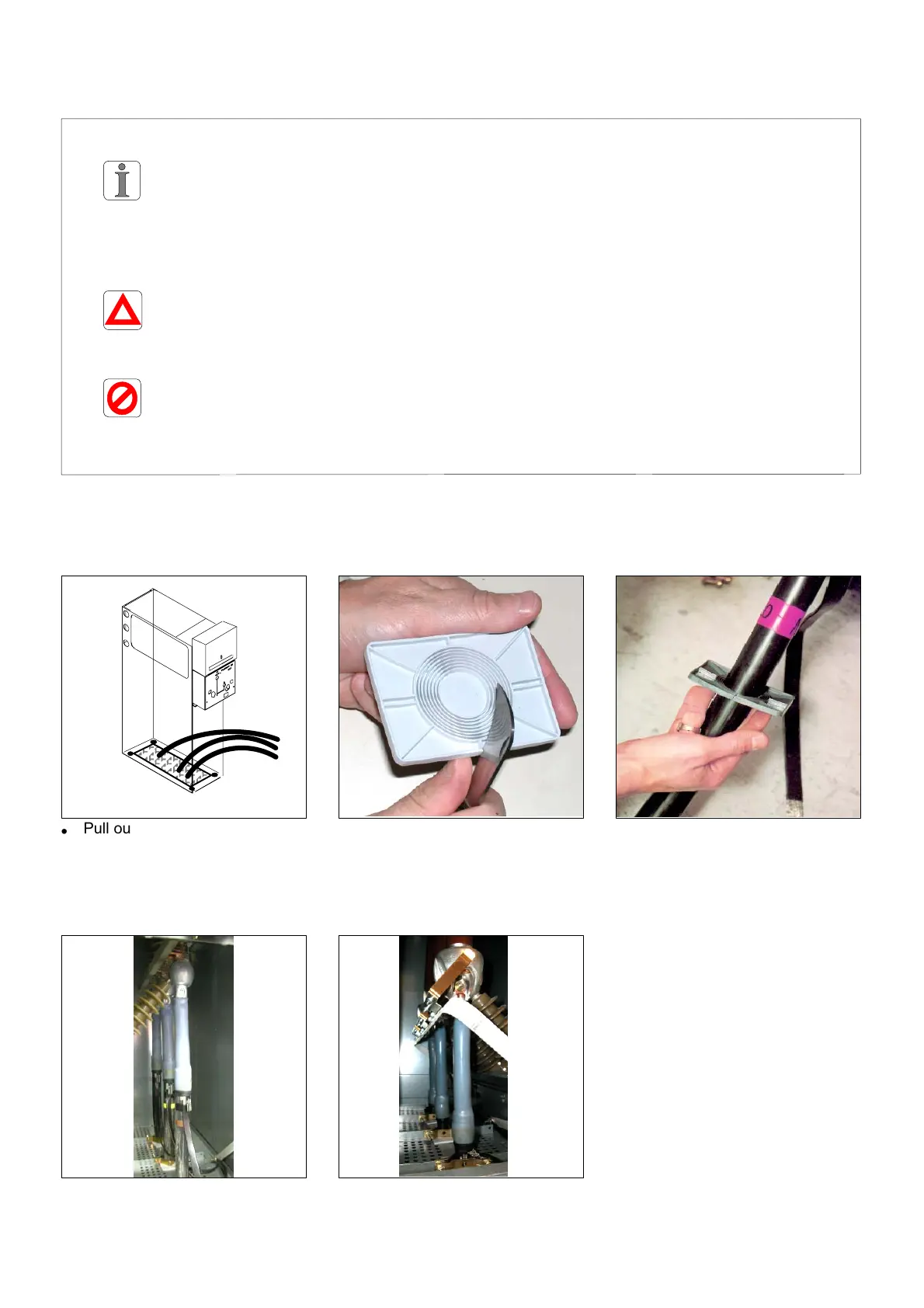

7.3 Preparation of the cables
F Pull out each cable from the
opening via the front of the
Functional Unit to make up the
extremity.
F Cut out each grommet to the
diameter of the cable.
F Fit the grommet on to its cable.
F Example of a connection
terminating in IS.
F Example of a connection
terminating in PF.
