3.3.4 CRUVI HS Connector
The CYC5000 board has one CRUVI HS connector. CRUVI HS is an open ecosystem which makes
it possible to add a big variety of interfaces to the system, that can require high-speed signalling
as well as low-speed device interface support.
The voltage level of High-Speed interfaces can be selected between 1.8V and 3.3V which ensures
that these I/Os are compatible with the high-speed LVDS standard as well as the lower-speed
GPIOs.
The CYC5000 board provides +5V and +3.3V power to the mezzanine card through the CRUVI HS
connector.
For custom add-on cards with CRUVI HS interface, the recommended counterpart is
ST4-30-1.50-L-D from Samtec.

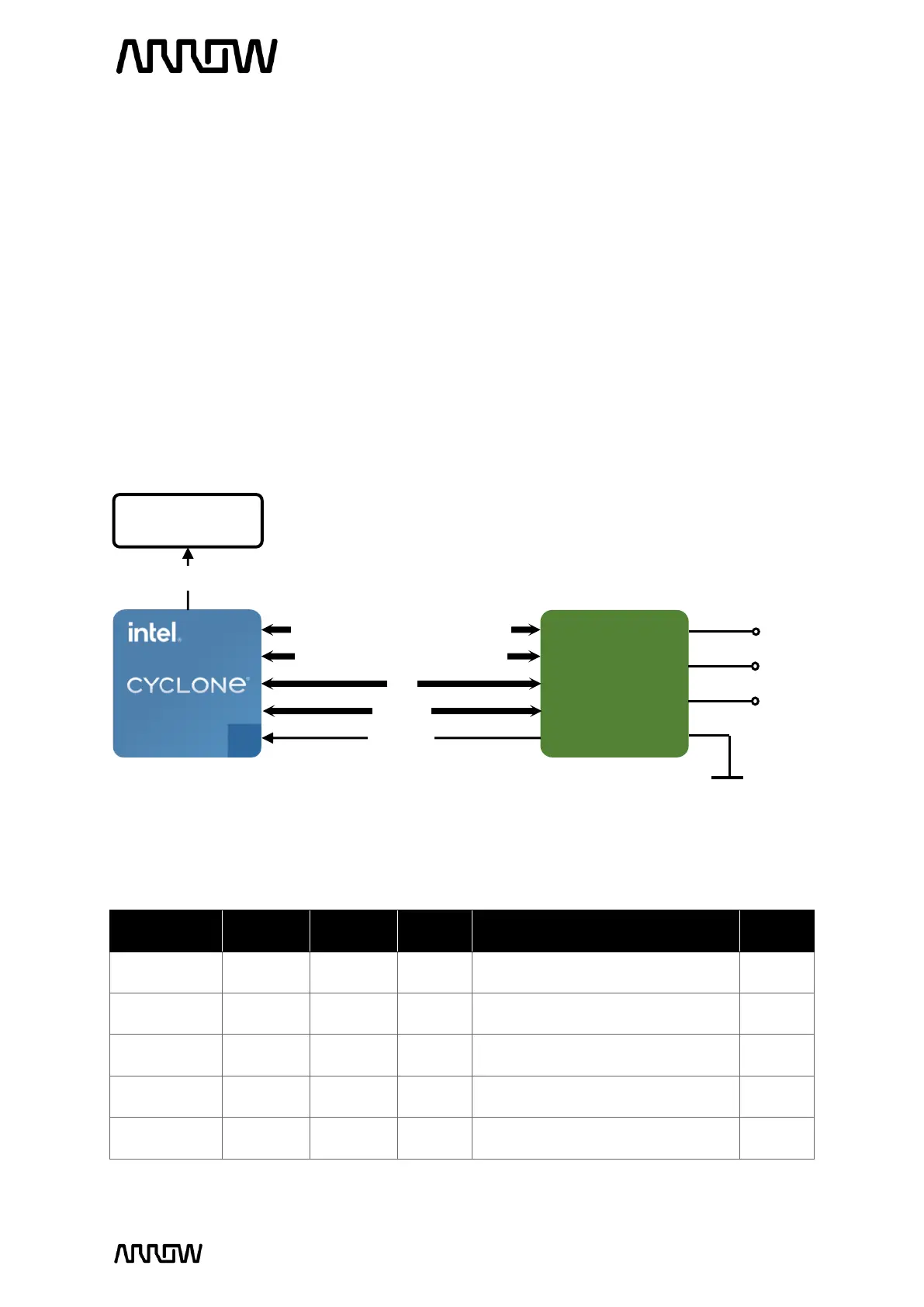

Below is the connection diagram and pinning information.
Board
Reference
FPGA Pin
No.
CRUVI HS
No.
Pin
Func.
Description
I/O Std
A0_P
PIN_A12
14
Output
High-Speed Differential
Transmitter A[0]_p
1.8 V /
3.3 V
A0_N
PIN_B12
16
Output
High-Speed Differential
Transmitter A[0]_n
1.8 V /
3.3 V
A1_P
PIN_A11
20
Output
High-Speed Differential
Transmitter A[1]_p
1.8 V /
3.3 V
A1_N
PIN_A10
22
Output
High-Speed Differential
Transmitter A[1]_n
1.8 V /
3.3 V
A2_P
PIN_A14
26
Output
High-Speed Differential
Transmitter A[2]_p
1.8 V /
3.3 V















Figure 9 – CRUVI HS Connections
