Arrow CYC5000 - Add Inputs, Outputs to the Schematic

CYC5000 User Guide www.arrow.com
Page | 46 March 2023
Name the bottom bus input: data0x[7..0] → counter[19..26]

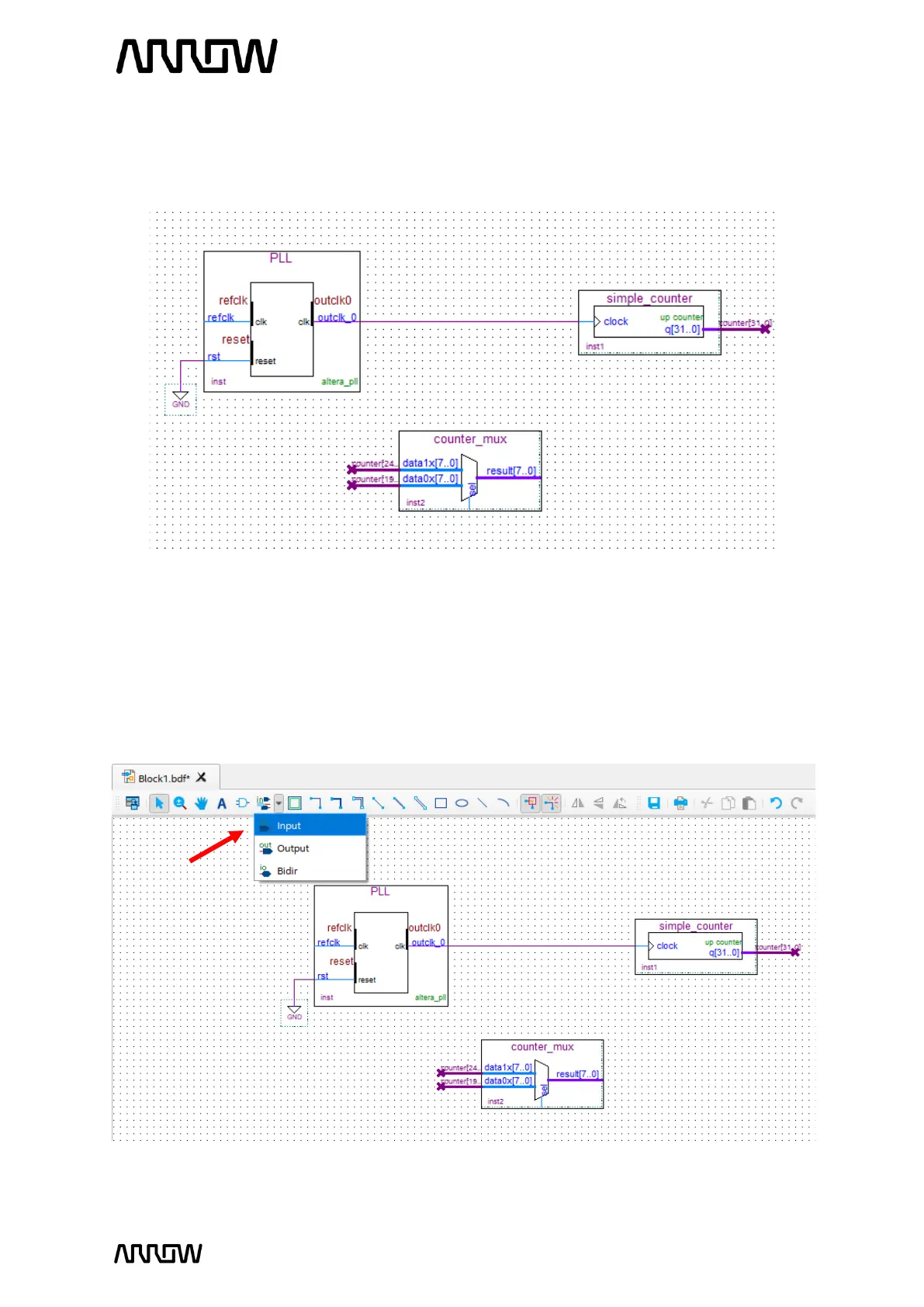

Schematic should look like this:
5.2.9 Add inputs, outputs to the schematic
5.2.9.1 Click on the “Pin Tool” as show below and select “Input”.
