Arrow CYC5000 - Arduino Header; Figure 10 - Arduino Header Connections

CYC5000 User Guide www.arrow.com
Page | 18 March 2023
Board
Reference
FPGA Pin
No.
CRUVI HS
No
Pin
Func.
Description
I/O Std
SDI
PIN_F4
51
Input
Master Input Slave Output
3.3 V
SDO
PIN_J3
53
Output
Master Output Slave Input
3.3 V
SEL
PIN_E3
55
Output
Chip Select
3.3 V
MODE
PIN_J4
57
Bidir
Mode pin, User IO
3.3 V
SCK
PIN_E2
59
Output
Clock
3.3 V
REFCLK
PIN_G14
11
Input
Clock Input
3.3 V
5V
-
60
PWR
5V power to the connector
-
3.3V
-
4, 9
PWR
3.3V power to the connector
-
ADJ
-
36
PWR
HS IO Bank voltage
-
GND
-
12, 13, 18,
19, 24, 25,
30, 31, 36,
37, 42, 43,
48, 49, 54
PWR
Ground to the connector
-
n.c.
-
1, 50, 52,
56, 58
-
Not connected
-
VSEL
PIN_N10
-
Output
HS IO Bank voltage select:
- VSEL = ‘0’; ADJ = 1.8V
- VSEL = ‘1’; ADJ = 3.3V
3.3 V
3.3.5 Arduino Header
The CYC5000 board offers connectivity to classic Arduino MKR compatible shields that could
also alternatively be used as GPIOs. The MKR connectors offer up to 23 digital I/Os.


 
 

 

 

 

 

 

 

 

 

 

 

 

 

 

 

 

 

 

 

 

 

 

 



 

 












 

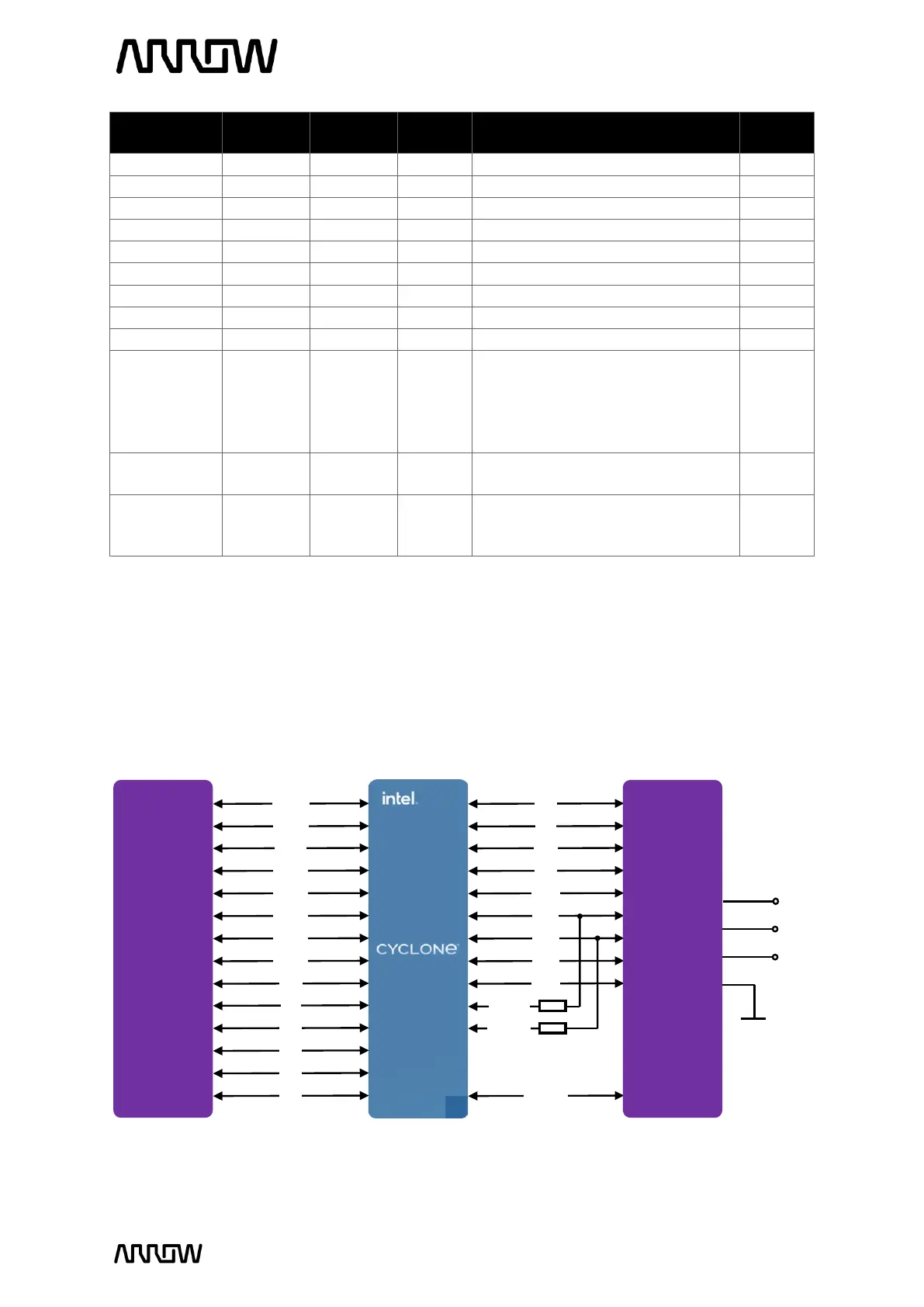

Figure 10 - Arduino Header Connections
