CYC5000 User Guide www.arrow.com
Page | 27 March 2023

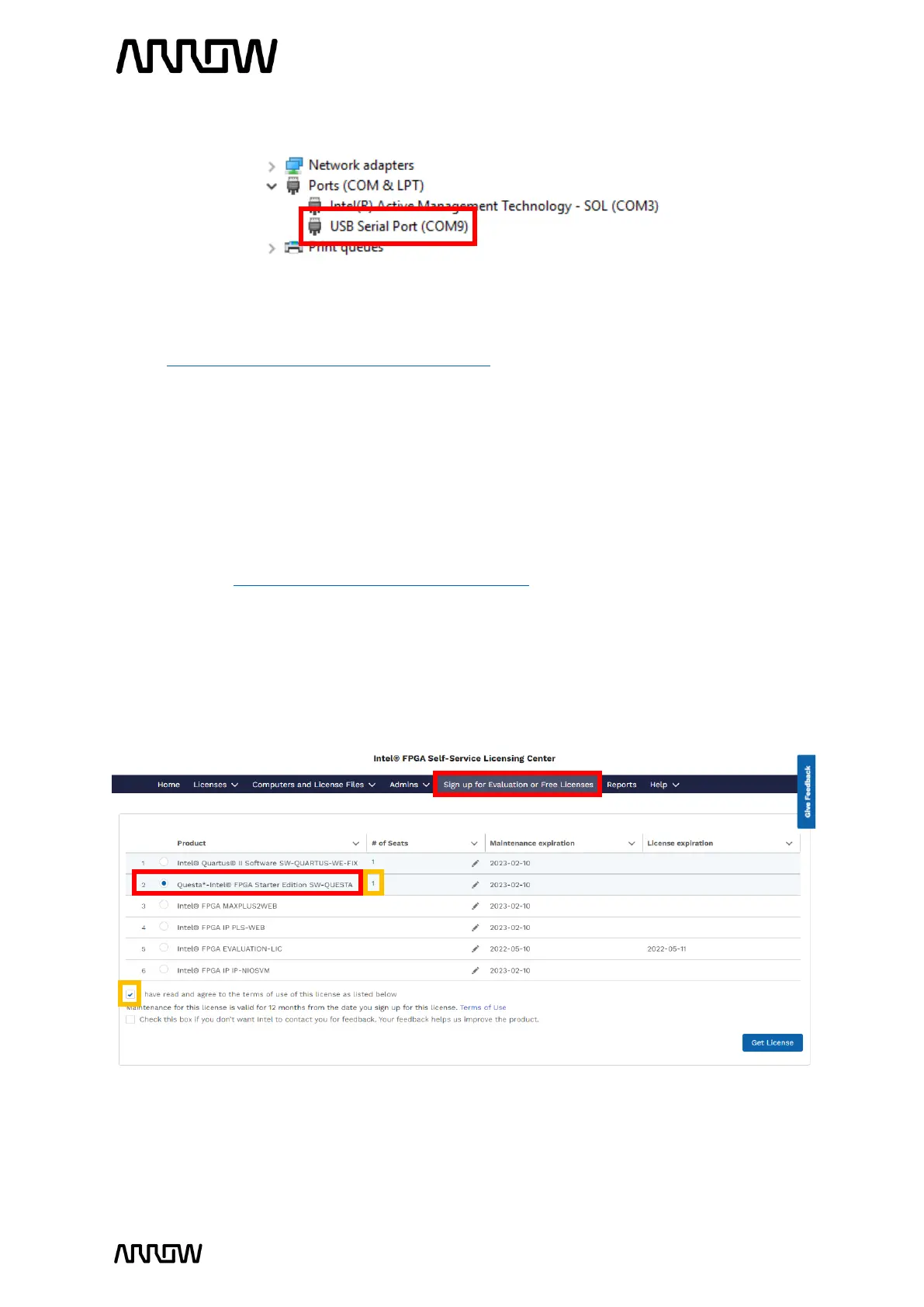

Furthermore, a USB Serial Port should be listed in the “Ports (COM & LPT)” section.
Note that the number of the port will most probably be different from the one shown here.
In case Windows does not automatically find the appropriate drivers go to
http://www.ftdichip.com/Drivers/D2XX.htm to download the setup executable to install
the required drivers.
4.3 License
Quartus Lite does not require a license, its use is completely free. However, even though Questa
Starter Edition can be used free of charge, you need to generate a free license for it.
4.3.1 Log in to Intel FPGA Self-Service Licensing Center
4.3.2 Go to Sign up for Evaluation or Free Licenses tab.
4.3.3 Select Questa*-Intel FPGA Starter Edition SW-QUESTA option.
4.3.4 Set the seats and accept the terms of use this license.
4.3.5 Click on Get License button.
4.3.6 In the pop-up window select +New computer under Create a New Computer.
